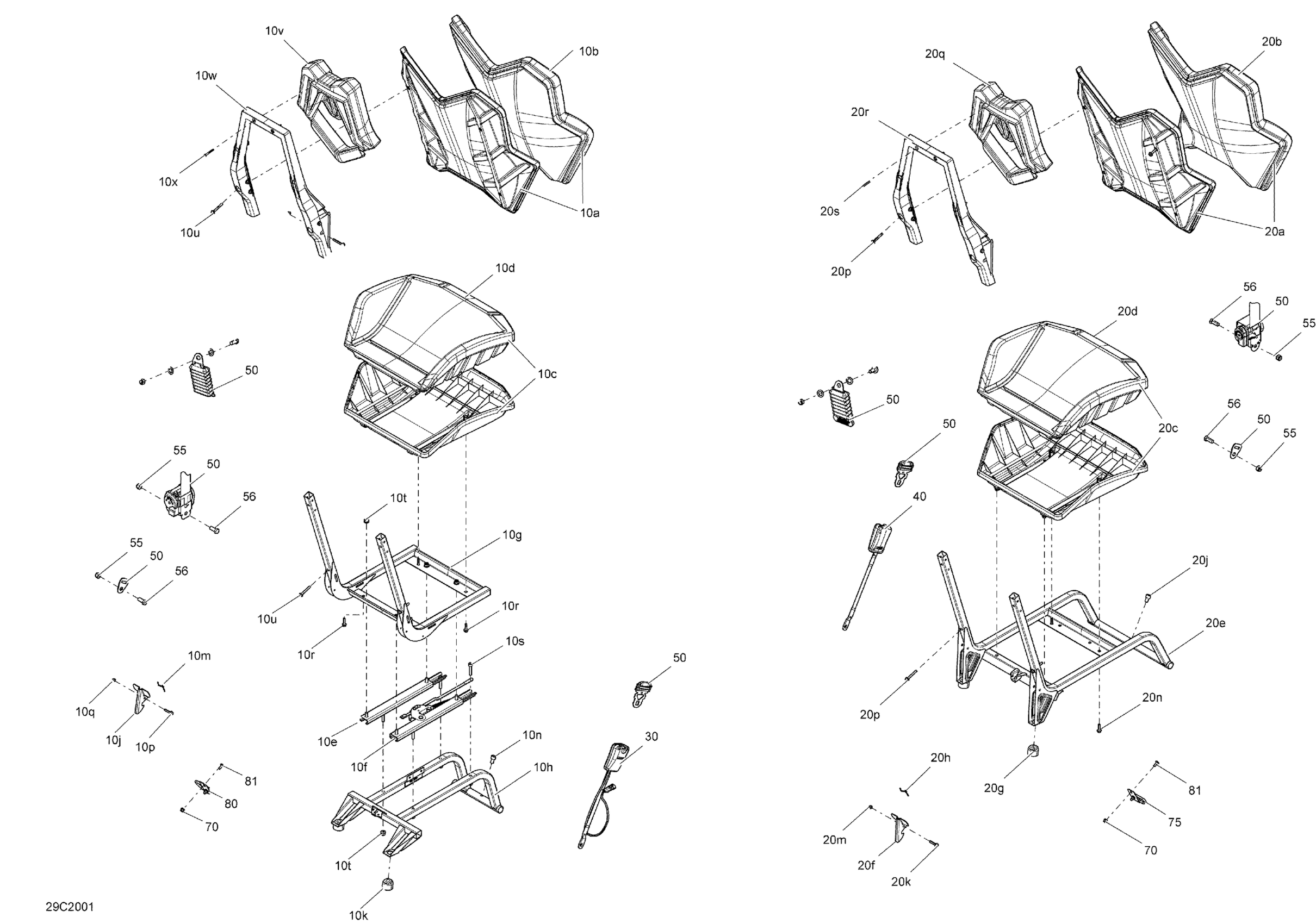

Can-Am Commander 800R EFI - 2020 Seat Diagram

#

Description
Price

10a

Backrest Ass'y | Includes 2 to 3

703500945

$399.99

10a

Backrest Ass'y | Includes 2 to 3

703500945

$399.99

10a

Backrest | Package XXC Gulfstream Blue Models

708002626

$439.99

10b

Backrest Cover

708000675

$97.99

10b

Backrest Cover

708000675

$97.99

10b

Cover | Package XXC Gulfstream Blue Models

708002627

$291.49

10c

Cushion Ass'y | Includes 4 to 5

703500943

$349.99

10c

Cushion Ass'y | Includes 4 to 5

703500943

$349.99

10c

Cushion Ass'y Gulfstream Blue | Package XMR, XXC

708002273

$249.99

10d

Seat Cover

708001103

$117.99

10d

Seat Cover

708001103

$117.99

10d

Seat Cover Gulfstream Blue | Package XMR, XXC

708002274

$128.99

10e

LH Rail

708000848

$53.99

10f

RH Rail

708001739

$35.99

10g

Operator Seat Frame

708001356

$329.99

10h

Seat Member

708000667

$56.99

10j

Seat Latch

708001355

$2.59

10k

Rubber Bumper

708001671

$2.89

10m

Spring

708000921

$1.29

10n

Socket Screw M10 X 16

205501644

$4.29

10p

Hex. Flange Screw M6 X 30, Scotch Grip | DS 650 X

207563034

$2.11

10q

Hex. Elastic Stop Nut M6

232561600

$1.15

10r

Hex. Flange Screw M6 X 25

207562544

$1.69

10s

Socket Head Screw M8 X 1.25 X 40

205084044

$2.85

10t

Hex. Flange Elastic Nut M8

233281414

$1.47

10u

Hex. Flange Screw M6

250000672

$2.11

10v

Head Rest

708001074

$104.99

10w

Seat Support

708001245

$28.99

10x

Hex. Flange Screw K50 X 40

250000897

Unavailable

20a

Backrest Ass'y | Includes 2 to 3

703500945

$399.99

20a

Backrest Ass'y | Includes 2 to 3

703500945

$399.99

20a

Backrest | Package XXC Gulfstream Blue Models

708002626

$439.99

20b

Backrest Cover

708000675

$97.99

20b

Backrest Cover

708000675

$97.99

20b

Cover | Package XXC Gulfstream Blue Models

708002627

$291.49

20c

Cushion Ass'y | Includes 4 to 5

703500943

$349.99

20c

Cushion Ass'y | Includes 4 to 5

703500943

$349.99

20c

Cushion Ass'y Gulfstream Blue | Package XMR, XXC

708002273

$249.99

20d

Seat Cover

708001103

$117.99

20d

Seat Cover

708001103

$117.99

20d

Seat Cover Gulfstream Blue | Package XMR, XXC

708002274

$128.99

20e

Passenger Seat Frame

708001357

$319.99

20f

Seat Latch

708001355

$2.59

20g

Rubber Bumper

708001671

$2.89

20h

Spring

708000921

$1.29

20j

Socket Screw M10 X 16

205501644

$4.29

20k

Hex. Flange Screw M6 X 30, Scotch Grip | DS 650 X

207563034

$2.11

20m

Hex. Elastic Stop Nut M6

232561600

$1.15

20n

Hex. Flange Screw M6 X 25

207562544

$1.69

20p

Hex. Flange Screw M6

250000672

$2.11

20q

Head Rest

708001074

$104.99

20r

Seat Support

708001245

$28.99

20s

Hex. Flange Screw K50 X 40

250000897

Unavailable

30

Driver Buckle Side

708002061

$70.99

40

Passenger Buckle Side | Model-North America, International

708002062

$53.99

50

Safety Belt

708002644

$280.99

55

Nylon Insert Hex. Lock Nut 7/16-20

250100135

$7.09

56

Hex. Cap Screw 7/16'' X 1'' | Europe

250000521

$1.90

70

Insert Half Hex Body M6 x 1.0

250100199

$3.19

75

Retaining Rod RH

708002303

$16.49

80

Retaining Rod LH

708002302

$14.99

81

Torx Head Screw M6 X 16

250000717

$2.11

180s

Nylon Insert Hex. Lock Nut 7/16-20

250100135

$7.09

180t

Hex. Cap Screw 7/16'' X 1'' | Europe

250000521

$1.90

180u

Safety Belt Screw

708000890

$3.79

180v

Position Washer

708000891

$1.29

180w

Hex. Elastic Flange Nut M6

233161464

$1.01

180x

Hex. Flange Screw M6

250000672

$2.11
