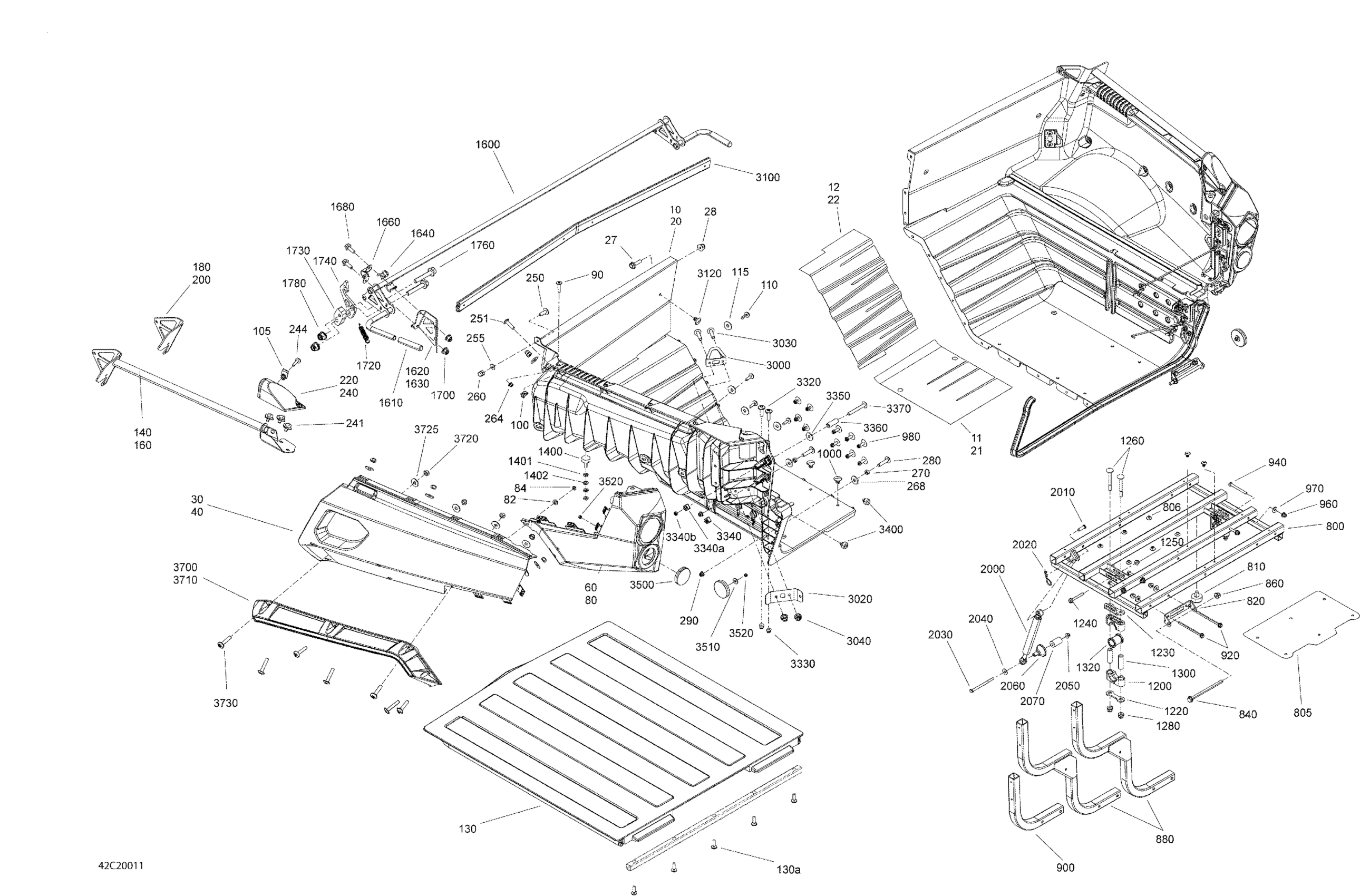

Can-Am Commander 800R EFI - 2020 Rear Cargo Box - Box Diagram

#

Description
Price

10

Left Box Kit

715002361

$221.61

11

Heat Deflector Sheet

708300809

$8.93

12

Heat Deflector Sheet

708300811

$7.93

20

Right Box Kit | Commander

715004116

$221.61

21

Heat Deflector Sheet

708300810

$8.93

22

Heat Deflector Sheet

708300812

$8.93

27

Hex. Flange Screw M6 X 20

207662054

$0.96

28

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.27

30

White, LH Rear Fender | Bright White Models

708301254

$124.60

30

Squadron Green, LH Rear Fender | Squadron Green Models

708302337

$124.60

30

Boreal Green, LH Rear Fender | Boreal Green

708302767

$368.63

30

Carbon Black, LH Rear Fender | Carbon Black

708302926

$368.63

40

White, RH Rear Fender | Bright White Models

708301255

$124.60

40

Squadron Green, RH Rear Fender | Squadron Green Models

708302338

$124.60

40

Boreal Green, RH Rear Fender | Boreal Green

708302768

$368.63

40

Carbon Black, RH Rear Fender | Carbon Black

708302927

$368.63

60

LH Rear Facia

708301383

$19.37

60

LH Rear Facia

708301383

$19.37

60

LH Rear Facia

708301383

$19.37

80

RH Rear Facia

708301384

$19.37

80

RH Rear Facia

708301384

$19.37

80

RH Rear Facia

708301384

$19.37

82

Flat Washer 8 mm, Nylon

234081100

$1.15

84

Push Nut

732610072

$1.97

90

Torx Screw M5 X 20

250000724

$1.60

100

Panel Nut M5 X 0.8

250000958

$4.00

105

Panel Nut M5 X 0.8

250000958

$4.00

110

Torx Screw K50 X 16

250000720

$1.60

115

Stainless Steel Flat Washer

234062670

$2.00

130

Separator Pannel Ass'y | Includes 16 to 17

708300131

$249.97

130a

Torx Screw K50 X 16

250000720

$1.60

140

LH Welded Rail | XT

708300231

$67.13

160

RH Welded Rail | XT

708300232

$67.13

180

LH Painted Rail Cap | Except XT

708300333

$14.27

200

RH Painted Rail Cap | Except XT

708300334

$13.99

220

LH Rail Cover

708301380

$2.72

240

RH Rail Cover

708301381

$2.72

241

Pop Rivet 3/16 | XT

293150190

$4.46

244

Torx Screw M5 X 20

250000724

$1.60

250

Torx Truss Screw M6 X 16

250000721

$1.60

251

Torx Screw M6 X 20

250000722

$1.54

255

Stainless Steel Flat Washer

234062670

$2.00

260

Domed Nut M6

232361493

$2.03

264

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.27

268

Stainless Steel Flat Washer

234062670

$2.00

270

Bushing

708300737

$4.43

280

Torx Screw M6 X 25

250000758

$2.00

290

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.27

800

Black Box Support

708300875

$276.09

805

Heat Deflector

708300780

$12.30

806

Pop Rivet 3/16"

293150103

$0.52

810

Rubber Stopper

708000884

$6.19

820

Bracket Pivot

708300185

$3.54

840

Hex. Flange Screw M8 X 130

230683034

$7.06

860

Hex. Flange Elastic Nut M8

233281414

$1.31

880

Black Welded Lateral Support

708300879

$44.75

900

Black Lateral Support

708300877

$162.66

920

Hex. Flange Screw M6 X 95

207669584

$3.18

940

Hex. Screw M6 X 65

207066544

$0.45

960

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.27

970

Flat Washer 6 mm

234062410

$0.73

980

Pop Rivet 3/16"

293150100

$1.04

1000

Pop Rivet 3/16" | DS 650 X

293150104

$0.99

1200

Housing Half

506150400

$7.09

1220

Stopper Plate

506150600

$4.03

1230

Adjustable Stopper Plate

708300210

$3.54

1240

Hex. Flange Screw M6 X 50

207665044

$3.88

1250

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.27

1260

Carriage Bolt M8 X 70

207787044

$1.27

1280

Hex. Flange Elastic Nut M8

233281414

$1.31

1300

Housing Bushing

506150500

$7.27

1320

Pivot Bushing

708300172

$3.54

1400

Frame Rubber Bumper

293720091

$7.72

1401

Hex. Jam Nut M8

232180600

$0.64

1402

Lock Washer 8 mm

234181401

$0.87

1600

Cargo Handle Ass'y

708300751

$67.88

1610

Cap Latch Lever

708300358

$4.91

1620

LH Latch Lever Support

708300278

$7.91

1630

RH Latch Lever Support

708300351

$7.91

1640

Half Ring

705500033

$4.76

1660

Clamp Reatiner

708300392

$2.68

1680

Hex. Flange Screw M6 X 16

207661644

$0.70

1700

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.27

1720

Spring

708300454

$3.54

1730

Spacer

708300902

$7.93

1740

Box Retainer

708300136

$7.12

1760

Hex. Flange Screw M6 X 45

250001028

$1.22

1780

Hex. Flange Elastic Nut M8

233281414

$1.31

2000

Gaz Shock

708301136

$35.79

2010

Pin

414079100

$2.16

2020

Hair Pin

414575600

$1.73

2030

Hex. Screw M6 X 90

207069044

$4.61

2040

Flat Washer 6 mm

234062410

$0.73

2050

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.27

2060

Spacer

708301059

$17.13

2070

Spacer

708300470

$7.21

3000

Retaining Plate

708300183

$7.93

3020

Retaining Plate Support

708300206

$3.87

3030

Torx Screw M6 X 25

250000758

$2.00

3040

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.27

3100

Front Support

708301633

$25.34

3120

Pop Rivet 3/16" | DS 650 X

293150104

$0.99

3320

Torx Screw M6 X 20

250000722

$1.54

3330

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.27

3340

M6 Nut Housing Ass'y | Includes 7r to 7r2

269500725

$4.28

3340a

M6 Nut Housing Ass'y | Includes 290 to 290b

269500252

$6.24

3340b

Hex. Elastic Stop Nut M6

232561600

$1.06

3350

Stainless Steel Flat Washer

234062670

$2.00

3360

Spacer

708300736

$7.93

3370

Torx Screw M6 X 45

250000748

$1.79

3400

Rubber Bumper

293830005

$6.12

3500

Red Reflector

705011221

$11.96

3510

Stainless Steel Flat Washer

234062670

$2.00

3520

Elastic Stop Nut M5

232551414

$0.82

3700

LH Upper Rear Mudguards | LTD

705008671

$34.11

3710

RH Upper Rear Mudguards | LTD

705008673

$34.11

3720

Elastic Stop Nut M6

232561434

$1.78

3725

Stainless Steel Flat Washer

234062670

$2.00

3730

Stainless, Torx Screw M6 X 30

250000842

$2.00
