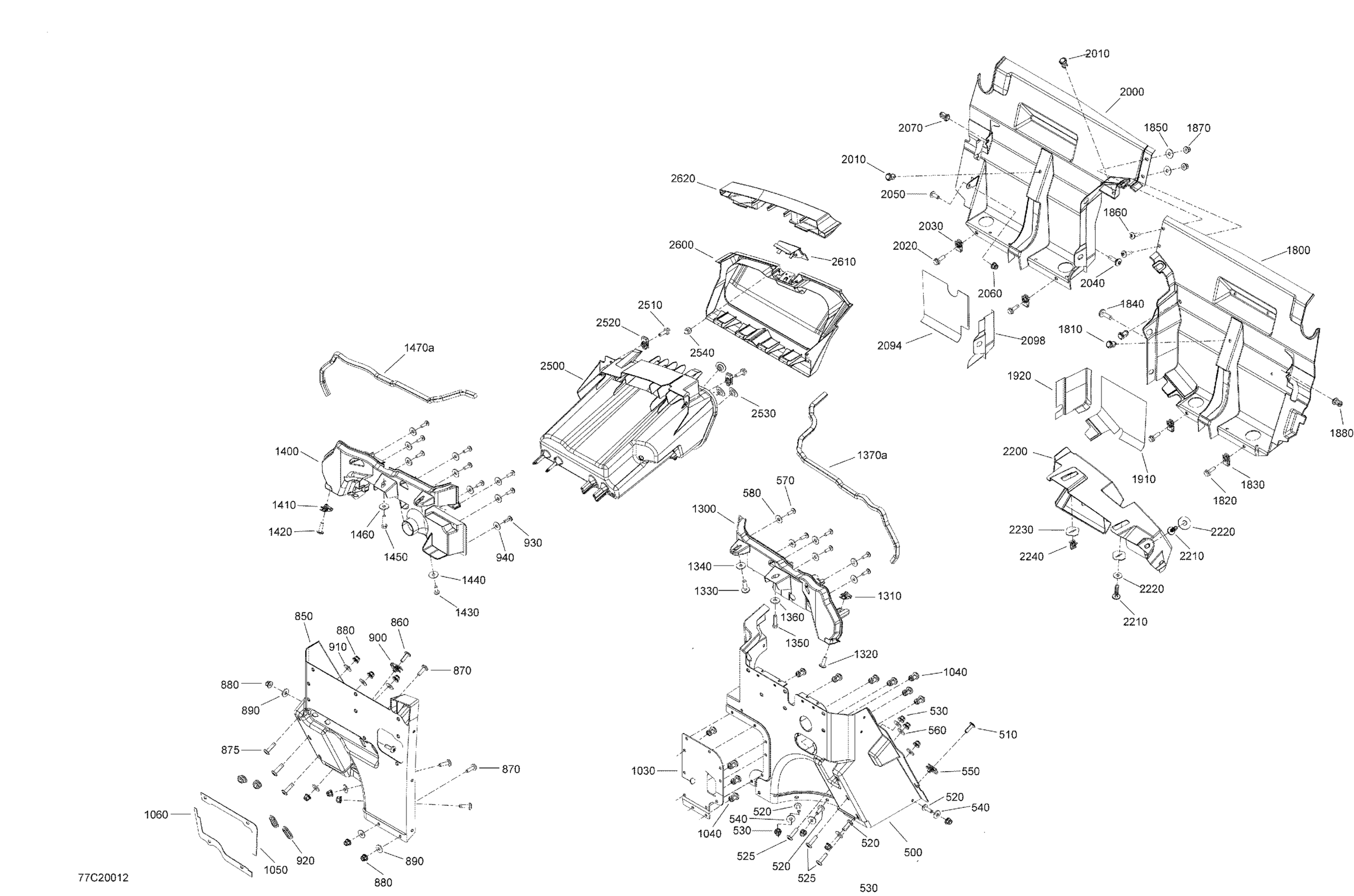

Can-Am Commander 800R EFI - 2020 Cab Interior - Upper part Diagram

#

Description
Price

500

LH Front Floor

707900181

$75.34

510

Torx Screw M6 X 20

250000722

$1.54

520

Torx Screw M6 X 20

250000712

$2.00

525

Torx Screw M6 X 25

250000758

$2.00

530

Hex. Flange Elastic Nut M6

233261494

$1.45

540

Stainless Steel Flat Washer

234062670

$2.00

550

Panel Nut M6 X 1.0

250100198

$1.99

560

Stainless Steel Flat Washer

234062670

$2.00

570

Torx Screw K50 X 16

250000720

$1.60

580

Flat Washer 6 mm

234062410

$0.73

850

RH Front Floor

707900004

$74.60

860

Torx Screw M6 X 20

250000722

$1.54

870

Torx Screw M6 X 20

250000712

$2.00

875

Torx Screw M6 X 25

250000758

$2.00

880

Hex. Flange Elastic Nut M6

233261494

$1.45

890

Stainless Steel Flat Washer

234062670

$2.00

900

Panel Nut M6 X 1.0

250100198

$1.99

910

Stainless Steel Flat Washer

234062670

$2.00

920

Oblong Grommet

705003668

$5.21

930

Torx Screw K50 X 16

250000720

$1.60

940

Flat Washer 6 mm

234062410

$0.73

1030

Deflector

707900108

$15.64

1030

Deflector

707900192

$15.64

1040

Tuflok Plastic Rivet

293150230

$1.39

1050

Upper Seal

293250252

$2.59

1060

Bottom Seal

293250253

$2.79

1300

SUPPORT_PANEL LH - Call your local BRP dealership

707900029

$11.63

1310

Panel Nut M6 X 1.0

250100198

$1.99

1320

Torx Screw M6 X 20

250000722

$1.54

1330

Torx Screw K50 X 16

250000720

$1.60

1340

Flat Washer

224060201

$1.12

1350

Hex. Screw M6 X 25

207162544

$1.01

1360

Flat Washer

224061201

$1.27

1370a

Was 293200017 Neoprene Seal

219704365

$135.79

1400

SUPPORT_PANEL RH - Call your local BRP dealership

707900030

Unavailable

1410

Panel Nut M6 X 1.0

250100198

$1.99

1420

Torx Screw M6 X 20

250000722

$1.54

1430

Torx Screw K50 X 16

250000720

$1.60

1440

Flat Washer

224060201

$1.12

1450

Hex. Screw M6 X 25

207162544

$1.01

1460

Flat Washer

224061201

$1.27

1470a

Was 293200017 Neoprene Seal

219704365

$135.79

1800

LH Rear Deflector

707900164

$87.28

1810

Tuflok Plastic Rivet

293150230

$1.39

1820

Hex. Flange Screw M6 X 20

207662034

$2.00

1830

Panel Nut M6 X 1.0

250100198

$1.99

1840

Torx Screw K50 X 16

250000720

$1.60

1850

Flat Washer

250200040

$1.76

1860

Torx Screw M6 X 20

250000712

$2.00

1870

Hex. Flange Elastic Nut M6

233261494

$1.45

1880

Tuflok Plastic Rivet

293150230

$1.39

1910

Heat Shield

707900182

$8.66

1920

Heat Shield

707900183

$4.76

2000

DEFLECTOR_BODY PANEL REAR R - Call your local BRP dealership

707900166

Unavailable

2010

Tuflok Plastic Rivet

293150230

$1.39

2020

Hex. Flange Screw M6 X 20

207662034

$2.00

2030

Panel Nut M6 X 1.0

250100198

$1.99

2040

Torx Screw K50 X 16

250000720

$1.60

2050

Torx Screw M6 X 16

250000755

$0.82

2060

Hex. Flange Elastic Nut M6

233261494

$1.45

2070

Tuflok Plastic Rivet

293150230

$1.39

2094

Heat Shield

707900167

$7.67

2098

Heat Shield

707900184

$4.76

2200

Dashboard Ass'y

715001250

$71.61

2210

Torx Screw Truss Head K50X20 T20

250000760

$2.00

2220

Stainless Steel Flat Washer

234062670

$2.00

2230

Support Plate

705003841

$0.91

2240

Edge Clip

517302785

$0.81

2500

Storage Bin

707900009

$103.70

2500

Storage Bin | XT

707900046

$91.01

2510

Hex. Flange Screw M6 X 20

207662034

$2.00

2520

Panel Nut M6 X 1.0

250100198

$1.99

2530

CAP - Call your local BRP dealership

414859400

Unavailable

2540

Rubber Bumper

293830005

$6.12

2600

LUGGAGE COVER KIT - Call your local BRP dealership

707900221

Unavailable

2610

Latch

707900031

$7.57

2620

Trim Glove Box

707900062

$16.39

4000

Torx Screw M5 X 14

250000742

$1.37

4005

Flat Washer

250200040

$1.76

4010

Torx Screw M6 X 20

250000722

$1.54
