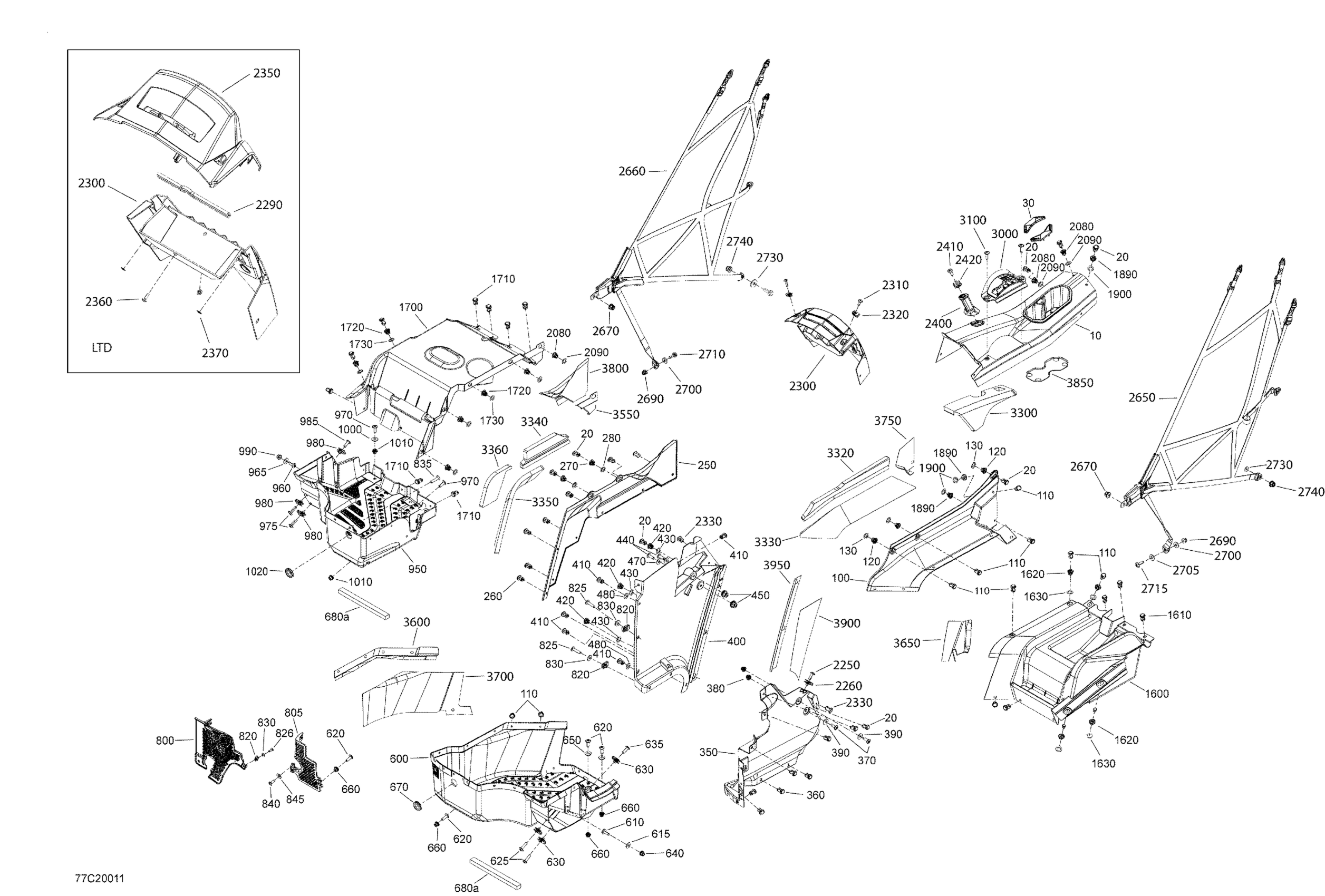

Can-Am Commander 800R EFI - 2020 Cab Interior - Lower part Diagram

#

Description
Price

10

Center Console Assembly | Except Package LTD

715006466

$147.66

10

Console Ass'y | Package LTD

715005502

$147.66

20

Tuflok Plastic Rivet

293150230

$1.21

30

Cup Retainer

707900036

$6.45

100

LH Side Console

707900001

$41.51

110

Tuflok Plastic Rivet

293150230

$1.21

120

Insert

707900133

$2.75

130

Washer

503189273

$3.20

250

RH Side Console

707900002

$36.89

260

Tuflok Plastic Rivet

293150230

$1.21

270

Insert

707900133

$2.75

280

Washer

503189273

$3.20

350

Front Side Dash Panel

707900193

$69.20

360

Tuflok Plastic Rivet

293150230

$1.21

370

Torx Screw M6 X 20

250000722

$1.34

380

Insert Half Hex Body M6 x 1.0

250100199

$2.54

390

Stainless Steel Flat Washer

234062670

$1.74

400

RH Fixe Side Console

707900021

$73.82

400

RH Fixe Side Console | LTD Model

707900098

$83.05

410

Tuflok Plastic Rivet

293150230

$1.21

420

Insert

707900133

$2.75

430

Washer

503189273

$3.20

440

Torx Screw M6 X 20

250000722

$1.34

450

Insert Half Hex Body M6 x 1.0

250100199

$2.54

470

Stainless Steel Flat Washer

234062670

$1.74

480

Washer

506151252

$3.11

600

LH Lower Floor

707900022

$253.82

610

Torx Screw M6 X 20

250000712

$1.74

615

Stainless Steel Flat Washer

234062670

$1.74

620

Torx Screw M6 X 20

250000722

$1.34

625

Torx Truss Screw M6 X 25

250000807

$1.74

630

Panel Nut M6 X 1.0

250100198

$1.73

635

Torx Screw M6 X 20

250000722

$1.34

640

Hex. Flange Elastic Nut M6

233261494

$1.26

650

Stainless Steel Flat Washer

234062670

$1.74

660

Insert Half Hex Body M6 x 1.0

250100199

$2.54

670

Rubber Cover

293250242

$5.38

680a

SEAL-TRAY 300MM LONG - Call your local BRP dealership

219704380

Unavailable

800

Grille

707900178

$9.18

805

Grille

707900180

$9.18

820

Panel Nut M6 X 1.0

250100198

$1.73

825

Torx Truss Screw M6 X 30

250000843

$1.74

826

Torx Screw M6 X 20

250000722

$1.34

830

Stainless Steel Flat Washer

234062670

$1.74

835

Torx Truss Screw M6 X 30

250000843

$1.74

840

Torx Screw K50 X 16

250000720

$1.39

845

Washer M5

250200025

$0.61

950

RH Lower Floor

707900023

$184.58

960

Torx Screw M6 X 20

250000712

$1.74

965

Stainless Steel Flat Washer

234062670

$1.74

970

Torx Screw M6 X 20

250000722

$1.34

975

Torx Truss Screw M6 X 25

250000807

$1.74

980

Panel Nut M6 X 1.0

250100198

$1.73

985

Torx Screw M6 X 20

250000722

$1.34

990

Hex. Flange Elastic Nut M6

233261494

$1.26

1000

Stainless Steel Flat Washer

234062670

$1.74

1010

Insert Half Hex Body M6 x 1.0

250100199

$2.54

1020

Rubber Cover

293250242

$5.38

1600

LH Under Seat Plate Kit

715002356

Unavailable

1610

Tuflok Plastic Rivet

293150230

$1.21

1620

Insert

707900133

$2.75

1630

Washer

503189273

$3.20

1700

RH Under Seat Plate

707900006

$106.12

1710

Tuflok Plastic Rivet

293150230

$1.21

1720

Insert

707900133

$2.75

1730

Washer

503189273

$3.20

1890

Insert

707900133

$2.75

1900

Washer

503189273

$3.20

2080

Insert

707900133

$2.75

2090

Washer

503189273

$3.20

2250

Torx Screw M6 X 20

250000722

$1.34

2260

Panel Nut M6 X 1.0

250100198

$1.73

2290

Protection Trim | LTD

271000110

Unavailable

2300

Lower Central Dashboard Ass'y | Europe

707900019

$41.51

2300

DASHBOARD CTRL. - Call your local BRP dealership | LTD Model

707900065

Unavailable

2310

Torx Screw M5 X 20

250000724

$1.39

2320

Panel Nut M5 X 0.8

250000958

$3.48

2330

Tuflok Plastic Rivet

293150230

$1.21

2350

Gauge Support | LTD Model

707900066

$36.12

2360

Torx Screw K50 X 16

250000720

$1.39

2370

Push Nut

732610072

$1.72

2400

Passenger Handle

707900011

$12.91

2410

Torx Screw M6 X 20

250000722

$1.34

2420

Connector Tube

707900048

$6.45

2650

Front LH Safety Net

707900237

$124.58

2660

Front RH Safety Net

707900238

$124.58

2670

Hex. Flange Elastic Nut M8

233281414

$1.14

2690

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

2700

Flat Washer 6 mm

234062410

$0.64

2705

Stainless Steel Flat Washer

234062670

$1.74

2710

Hex. Flange Screw M6 X 20

207662044

$1.66

2715

Torx Screw M6 X 25

250000758

$1.74

2730

Flat Washer 8 mm

234082410

$1.11

2740

Hex. Flange Elastic Nut M8

233281414

$1.14

3000

Lever Indicator

707900070

$14.75

3100

Torx Screw M6 X 25 | XT Models

250000728

$3.61

3300

Front Central Console Foam

707900619

$16.12

3320

Left Upper Lateral Console Foam

707900620

$15.35

3330

LH Lower Lateral Console Foam

707900621

$20.74

3340

RH Lateral Console Foam

707900622

$15.35

3350

RH Lateral Console Foam

707900623

$15.35

3360

RH Lateral Console Foam

707900624

$15.35

3550

Heat Sheet

707900148

$7.37

3600

Heat Sheet

707900149

$8.98

3650

Heat Sheet

707900150

$1.37

3700

Heat Sheet

707900151

$10.14

3750

Heat Sheet

707900146

$11.06

3800

Heat Sheet

707900147

$8.98

3850

Heat Sheet

707900145

$11.06

3900

Heat Sheet

707900190

$8.45

3950

Heat Sheet

707900191

$1.37

4000

Torx Screw M5 X 14

250000742

$1.20

4005

Flat Washer

250200040

$1.82

4010

Torx Screw M6 X 20

250000722

$1.34
