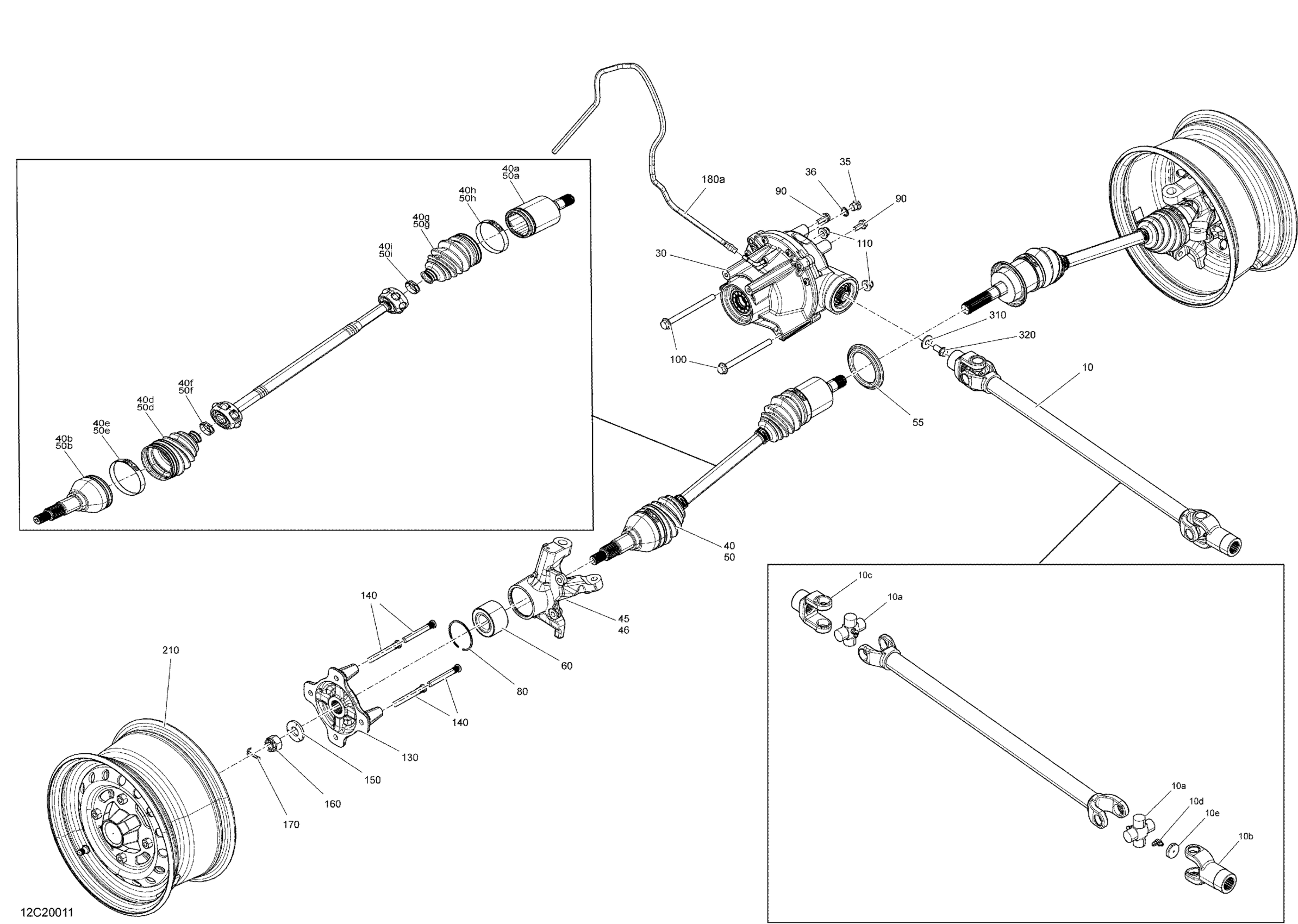

Can-Am Commander 800R EFI - 2020 Front Drive - Common Parts Diagram

#

Description
Price

10

Axle Drive Ass'y

705402066

$249.20

10a

U-Joint Cross Kit | Engine 450

715900435

$78.43

10b

Fixed Yoke Joint

715900497

$59.97

10c

Yoke Joint | Cover 715900483

715900231

$27.66

10d

Grease Fitting

703500815

$4.62

10e

Cover

715900483

$10.99

30

Front Differential | XT, XT-P, Includes 9 to 29

703500908

$1,684.58

30

Front Differential | Includes 8 to 31

703500907

$1,476.89

30

Front Differential | XT, XT-P, Includes 9 to 29

703500908

$1,684.58

35

Fill Level Plug | 4X4

705500504

$7.61

36

Copper Washer | 4X4

705500506

$0.36

40

RH Front - Premium CV Axle | Includes 30 to 36

705401872

$232.74

40a

RH Plunging Joint

715900431

$249.20

40b

CV Joint

715900427

$253.82

40c

Circlip Joint | Not shown

705401349

$5.38

40d

Boot Kit, Wheel Side

705401345

$41.51

40e

Oetiker Clamp

715900282

$4.39

40f

Oetiker Clamp, Small

715900283

$4.39

40g

Boot Kit, Differential Side

705401346

$41.51

40h

Oetiker Clamp, Large

715900284

$4.39

40i

Oetiker Clamp, Small

715900261

$4.39

45

LH Front Knuckle

705401548

$129.20

46

RH Front Knuckle

705401549

$106.12

50

LH Front - Premium CV Axle | Includes 39 to 45

705401871

$232.74

50a

LH Plunging Joint

715900430

$249.20

50b

CV Joint

715900427

$253.82

50c

Circlip Joint | Not shown

705401349

$5.38

50d

Boot Kit, Wheel Side

705401345

$41.51

50e

Oetiker Clamp

715900282

$4.39

50f

Oetiker Clamp, Small

715900283

$4.39

50g

Boot Kit, Differential Side

705401346

$41.51

50h

Oetiker Clamp, Large

715900284

$4.39

50i

Oetiker Clamp, Small

715900261

$4.39

55

Wear Sleeve

705400780

$7.28

60

Ball Bearing

293350150

$51.93

80

Circlip

293370019

$4.98

90

Hex. Flange Screw M8 X 20, Scotch Grip

207582044

$1.39

100

Hex. Flange Screw M10 X 125

230602546

$6.08

110

Hex. Flange Elastic Nut M10

233201436

$1.74

130

Wheel Hub

705401314

$129.20

140

Wheel Stud

705401964

$10.14

150

Conical Spring Washer M18

250200171

$5.28

160

Hex. Flange Castellated Nut M18

232291413

$2.82

170

Cotter Pin

250400071

$1.74

180a

Polyurethane Hose 4000MM Long | Includes 250 to 250a

219704389

$21.42

210

Front Wheel | P-XT

705402085

Unavailable

210

Front Wheel | P-XT

705402085

Unavailable

210

Front Wheel Ass'y | P-STD

705402588

Unavailable

310

Flat Washer M10 | 4X4

250200014

$1.17

320

Hex Flange Screw M10 X 20 S.Grip

250001046

$3.61
