Description

Price

10

RH Caliper | Includes 1 to 5

705600678

$213.40

10a

Bleeding Screw

705600080

$14.49

10b

RH Brake Pad Kit

715500336

$48.48

10c

Sliding Pin Kit

715500337

$18.63

10d

Spring Boot Bolt Kit

715500383

$16.39

20

LH Caliper | Includes 6 to 10

705600679

$213.40

20a

Bleeding Screw

705600080

$14.49

20b

LH Brake Pad Kit

715500335

$48.48

20c

Sliding Pin Kit

715500337

$18.63

20d

Spring Boot Bolt Kit

715500383

$16.39

30

Master Cylinder Ass'y | Includes 11 to 13

705601505

$216.39

35

Master Cylinder Rod

705600833

$18.63

40

LH Front Hose | Includes 15 to 16

705600943

$73.85

45

RH Front Hose | Includes 17 to 18

705601265

$80.57

50

Banjo Bolt (M10 x 1.25 thread)

705600609

$0.90

55

Banjo Bolt

705600958

$6.73

60

Copper Washer

705601628

$4.21

80

Clamp

293650220

$0.81

85

Rear Flexible Hose Ass'y

705601391

$144.75

90

Hex. Flange Screw M8 X 25

207682534

$1.03

95

Hex. Elastic Stop Nut M8

232581414

$0.54

100

Cotter Pin

371800700

$0.96

101

Pin | Not Shown

250400058

$6.91

102

Yoke | Not Shown

705601142

$14.34

103

Hex. Nut M8

232081414

$0.69

105

Flat Washer M8

234081430

$2.00

130

Hex. Forming Screw M5 X 16

210251650

$1.06

135

Elastic Flange Nut M5

233251494

$2.00

140

Pop Rivet 3/16"

390402200

$0.30

141

Elastic Stop Nut M6

232561414

$1.78

142

Hex. Flange Screw M6 X 10

210261040

$1.43

150

Brake Switch

705601250

$55.19

170

Rear Caliper | Includes 36 to 40

705600872

$213.40

170a

Bleeding Screw

705600080

$14.49

170b

RH Brake Pad Kit

715500336

$48.48

170c

Sliding Pin Kit

715500337

$18.63

170d

Spring Boot Bolt Kit

715500383

$16.39

250

Brake Pedal

705600724

$51.46

260

Brake Pedal Spring

705600792

$8.42

265

Rubber Stopper

708000759

$4.15

300

O-Ring

293300144

$3.79

350

Inner Spacer

705600815

$10.01

360

Hex. Flange Screw M10 X 55

207605544

$3.19

370

Hex. Flange Elastic Nut M10

233201414

$1.45

380

Brake Disc

705600684

$64.90

385

Brake Disc

705600684

$64.90

440

Hex. Flange Screw M10 X 20

250001134

$1.67

445

Flange Screw M10 X 16, Scotch Grip | 4X4

250000060

$3.49

490

Bracket

705601337

$2.69

495

Bracket

705601337

$2.69

500

LH Front Deflector

705600917

$6.73

510

Torx Screw M5 X 14

250000742

$1.37

520

Elastic Flange Nut M5

233251494

$2.00

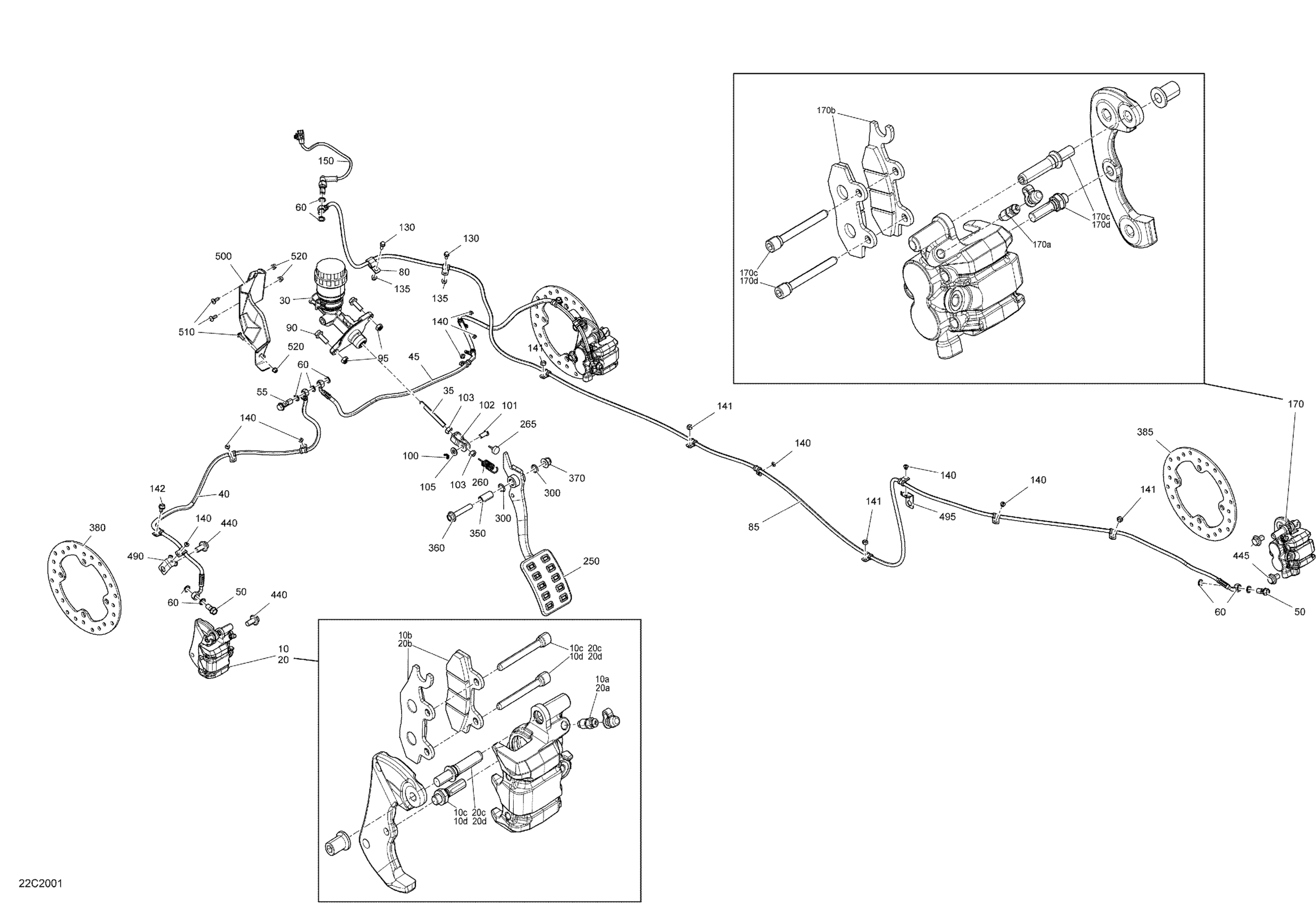

Can-Am Commander 800R EFI - 2020 Brakes Diagram

RH Caliper | Includes 1 to 5

Bleeding Screw

RH Brake Pad Kit

Sliding Pin Kit

Spring Boot Bolt Kit

LH Caliper | Includes 6 to 10

Bleeding Screw

LH Brake Pad Kit

Sliding Pin Kit

Spring Boot Bolt Kit

Master Cylinder Ass'y | Includes 11 to 13

Master Cylinder Rod

LH Front Hose | Includes 15 to 16

RH Front Hose | Includes 17 to 18

Banjo Bolt (M10 x 1.25 thread)

Banjo Bolt

Copper Washer

Clamp

Rear Flexible Hose Ass'y

Hex. Flange Screw M8 X 25

Hex. Elastic Stop Nut M8

Cotter Pin

Pin | Not Shown

Yoke | Not Shown

Hex. Nut M8

Flat Washer M8

Hex. Forming Screw M5 X 16

Elastic Flange Nut M5

Pop Rivet 3/16"

Elastic Stop Nut M6

Hex. Flange Screw M6 X 10

Brake Switch

Rear Caliper | Includes 36 to 40

Bleeding Screw

RH Brake Pad Kit

Sliding Pin Kit

Spring Boot Bolt Kit

Brake Pedal

Brake Pedal Spring

Rubber Stopper

O-Ring

Inner Spacer

Hex. Flange Screw M10 X 55

Hex. Flange Elastic Nut M10

Brake Disc

Brake Disc

Hex. Flange Screw M10 X 20

Flange Screw M10 X 16, Scotch Grip | 4X4

Bracket

Bracket

LH Front Deflector

Torx Screw M5 X 14

Elastic Flange Nut M5
