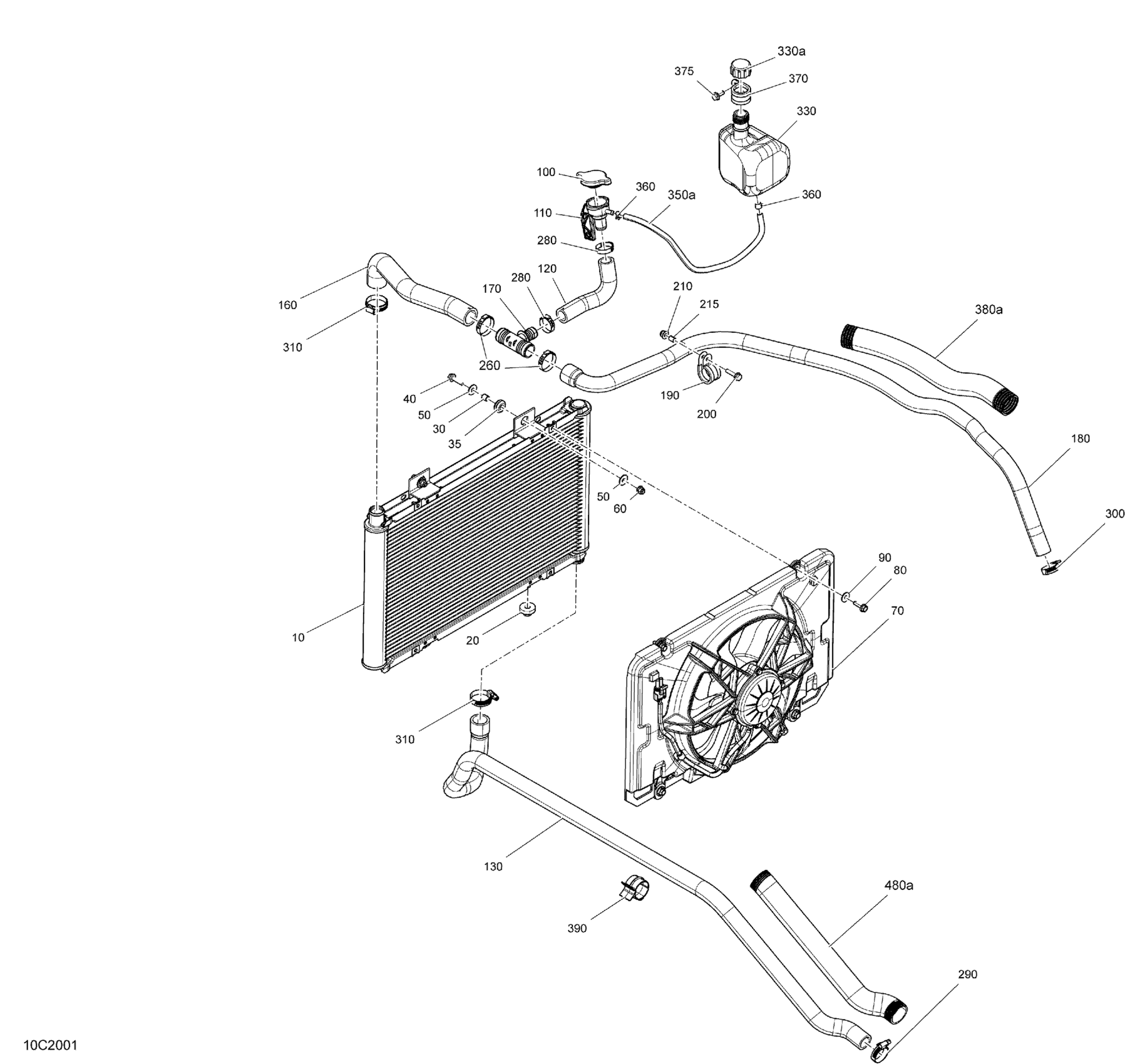

Can-Am Commander 800R EFI - 2020 Cooling System Diagram

#

Description
Price

10

Radiator

709200395

$370.99

20

Grommet

709200285

$9.69

30

Bushing

293900105

$7.65

35

Grommet

709000582

$4.69

40

Hex. Flange Screw M6 X 25

207662534

$2.11

50

Flat Washer

250200082

$0.42

60

Flange Elastic Nut M6

233261434

$4.44

70

Fan Ass'y

709200566

$279.99

80

Hex. Flange Screw M6 X 20

207662044

$2.00

90

Flat Washer 6 mm

234062410

$0.77

100

Radiator Pressure Cap

709200207

$25.49

110

Filler Neck

709200179

$18.49

120

Filler Neck Hose

709200264

$11.07

130

Radiator Inlet Hose

709200355

$65.49

160

Radiator Outlet Hose

709200265

$12.63

170

T-Fitting

509000372

$10.33

180

Intermediate Hose

709200295

$41.49

190

Hose Anchor

709200036

$11.12

200

Hex. Flange Screw M6 X 25

207662534

$2.11

210

Flange Elastic Nut M6

233261434

$4.44

215

Spacer

707000065

$6.67

260

Gear Clamp

509000162

$7.29

280

Crimp Clamp

293650099

$4.29

290

Norma Gear Clamp

293650098

$4.44

300

Norma Gear Clamp

293650098

$4.44

310

Norma Gear Clamp

293650098

$4.44

330

Coolant Tank Ass'y

709200624

$27.99

330a

Tank Cap

709200587

$5.40

350a

Was 415110000 Polyurethane Hose 5.2 mm

219704414

$121.99

360

Spring Clamp

414554800

$0.88

370

Hose Anchor

709200036

$11.12

375

Hex. Flange Screw M6 X 16

207661644

$0.74

380a

Tubing 35 MM 1000MM Long

219704428

$10.99

390

Retainer

275500590

$9.69

480a

Tubing 35 MM 1000MM Long

219704428

$10.99
