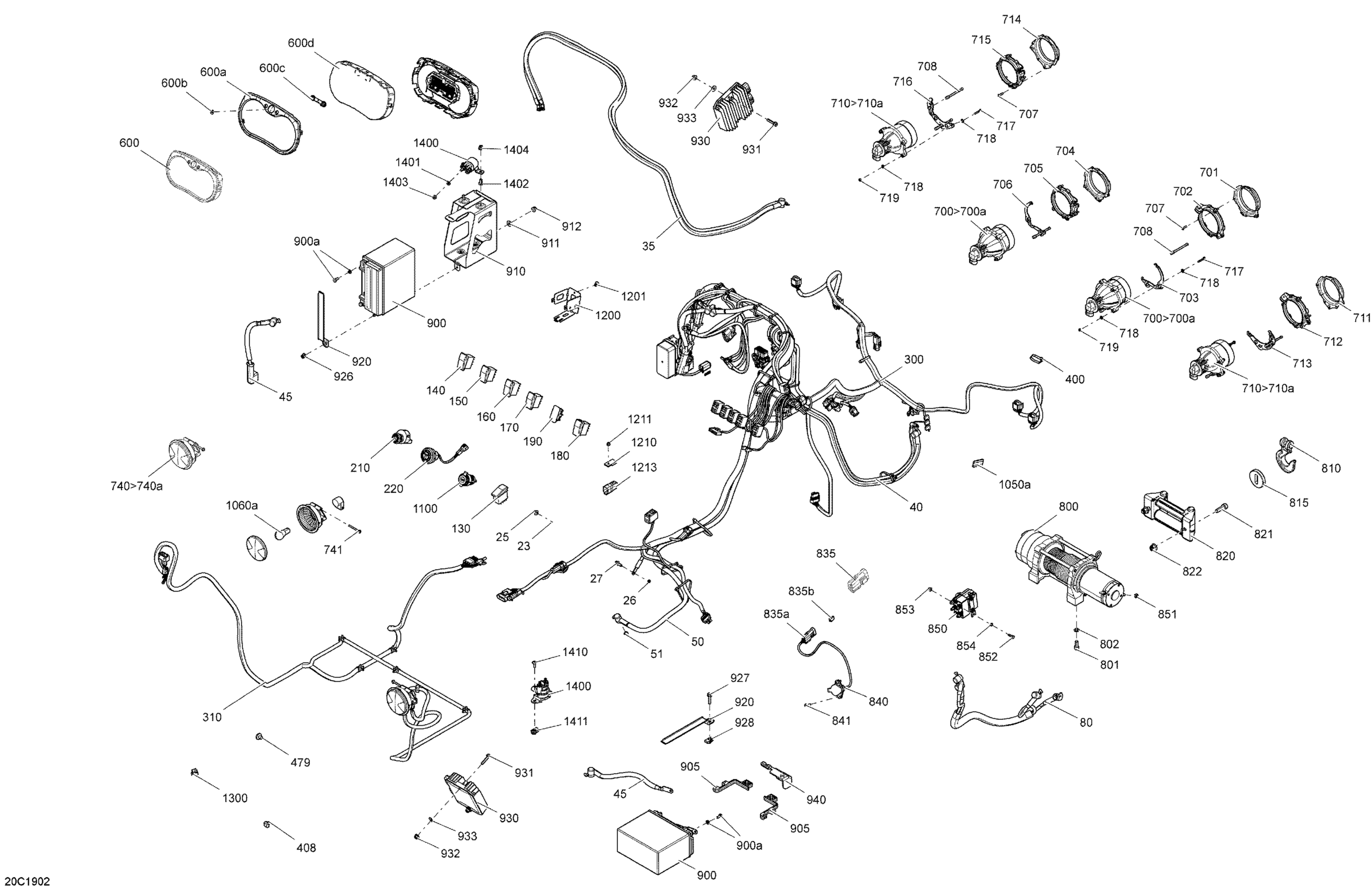

Can-Am Commander 1000R EFI - 2019 Electrical - Except LTD Diagram

Hex. Flange Screw M6 X 20

207662044

$1.91

External Serrated Lock Washer 6 mm

234461608

$1.06

Hex. Flange Nut M6

233061414

$1.54

External Serrated Lock Washer 6 mm

234461608

$1.06

Hex. Flange Screw M6 X 16, Scotch Grip

207561644

$1.79

Winch Cable (-/+) | X, DPS

710004575

$73.85

Winch Cable (-/+) | XT

710005123

$82.06

Positive Cable | Package STD

710004384

$32.06

Positive Cable

710004383

$38.03

Elastic Stop Nut M6

232561414

$1.78

Electrical Winch Cable | XT

710004387

$44.75

Switch, Over ride

710002053

$19.27

Hi/Low Switch | Except Europe

710001725

$21.49

4X4 Switch

710001737

$29.82

Switch PPS Sport

710003541

$17.88

Switch DPS

710001781

$22.24

Switch Winch

710002052

$28.18

Plug Carling | Australia, Brazil, Europe, Japan

710007173

$7.60

Ignition Switch

710008400

$72.36

Engine Start Button

710002594

$55.94

Harness Ass'y

710006089

$1,073.85

Rear Harness

710004681

$90.27

Mount Dart

293730040

$0.99

Speedometer | Includes 600 to 600b

710005553

$305.19

Trim Ring Ass'y

710001183

$17.88

BRP Logo13 mm

704904615

$11.09

Button

715900265

$11.81

Speedometer | Package Hunter, XT, XTP

710005653

$394.00

Gauge Ring

415129348

$11.36

Speedometer Button | XTP

415129355

$13.52

Lens | XTP

415129349

$22.36

Low Beam Ass'y | Includes 1 to 2

710002524

$132.81

Halogen Bulb

415129249

$38.78

RH Low Front Housing

710001081

$16.39

RH Low Rear Housing

710001082

$10.55

RH Low Light Support

710001094

$8.15

LH Low Front Housing

710001083

$16.39

LH Low Rear Housing

710001084

$10.55

LH Low Light Support

710001037

$8.15

Phillips Screw K40 X 16

250000723

$0.93

Setting Screw

710001147

$11.81

High Beam Ass'y | Includes 11 to 12

710002525

$108.18

Halogen Bulb

415129249

$38.78

RH High Front Housing

710001085

$16.39

RH High Rear Housing

710001086

$10.55

RH High Light Support

710001115

$4.76

LH High Front Housing

710001087

$16.39

LH High Rear Housing

710001088

$10.55

LH High Light Support

710001036

$4.76

Hex. Screw M4 X 25

207142544

$1.87

Flat Washer M5

234051410

$0.51

Elastic Stop Nut M4

232541414

$0.55

Tail Light Ass'y | Includes 32 to 33

710001645

$79.07

Bulb

520000758

$8.60

Hex. Screw K50 X 45

241154540

$2.00

Winch_Electric | Package Hunter, XT, XTP

710007030

$626.09

Socket Head Screw M8 X 20

205082044

$1.06

Lock Washer 8 mm

234181401

$0.87

Winch Hook Kit

705014949

$23.10

Stopper

710007028

$9.88

Fairlead Roller

710007082

$55.19

Socket Screw M10 x 30 | XT

205003044

$3.00

Hex. Flange Elastic Nut M10

233201414

$1.45

Connector Ass'y | XT, Includes 55 to 57

710001059

$8.42

Female Terminal Housing, 3 Circuits | XT Models

278000281

$9.31

Clip

710000992

$3.88

Wiring Harness_Switch Winch | Package XT

710007053

$54.45

Torx Screw K50 X 16

250000720

$1.60

Solenoid

710006991

$57.43

Elastic Stop Nut M6

232561434

$1.78

Hex. Screw M5 X 16 | 4X4

207151644

$0.85

Elastic Flange Nut M5

233251494

$2.00

Flat Washer M5

234051410

$0.51

Battery Ass'y, 18 Amperes | XT Models, Includes 72 To 73

410301203

$142.45

Battery Bolt Kit

250000282

$3.39

Battery Support

710003129

$44.00

Flat Washer 6 mm

234062410

$0.73

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.27

Battery Holder

710001916

$16.39

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.27

Voltage Regulator

710005842

$183.55

Hex. Flange Screw M6 X 30, Scotch Grip | DS 650 X

207563034

$2.00

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.27

Stainless Steel Flat Washer

234062670

$2.00

DC Outlet

710001248

$35.79

Fuse Holder

710003335

$8.60

Pop Rivet 3/16"

293150103

$0.52

Clip

270000141

$9.57

Pop Rivet 3/16"

390402400

$0.28

Connector Plug

710004904

$8.30

Clip

414227300

$1.40

Starter Relay

710007777

$45.49

Lock Washer Helical M6

234161601

$1.06

Torx Head Screw M6 X 16

250000717

$2.00

Hex. Nut M6

232061600

$1.04

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.27
