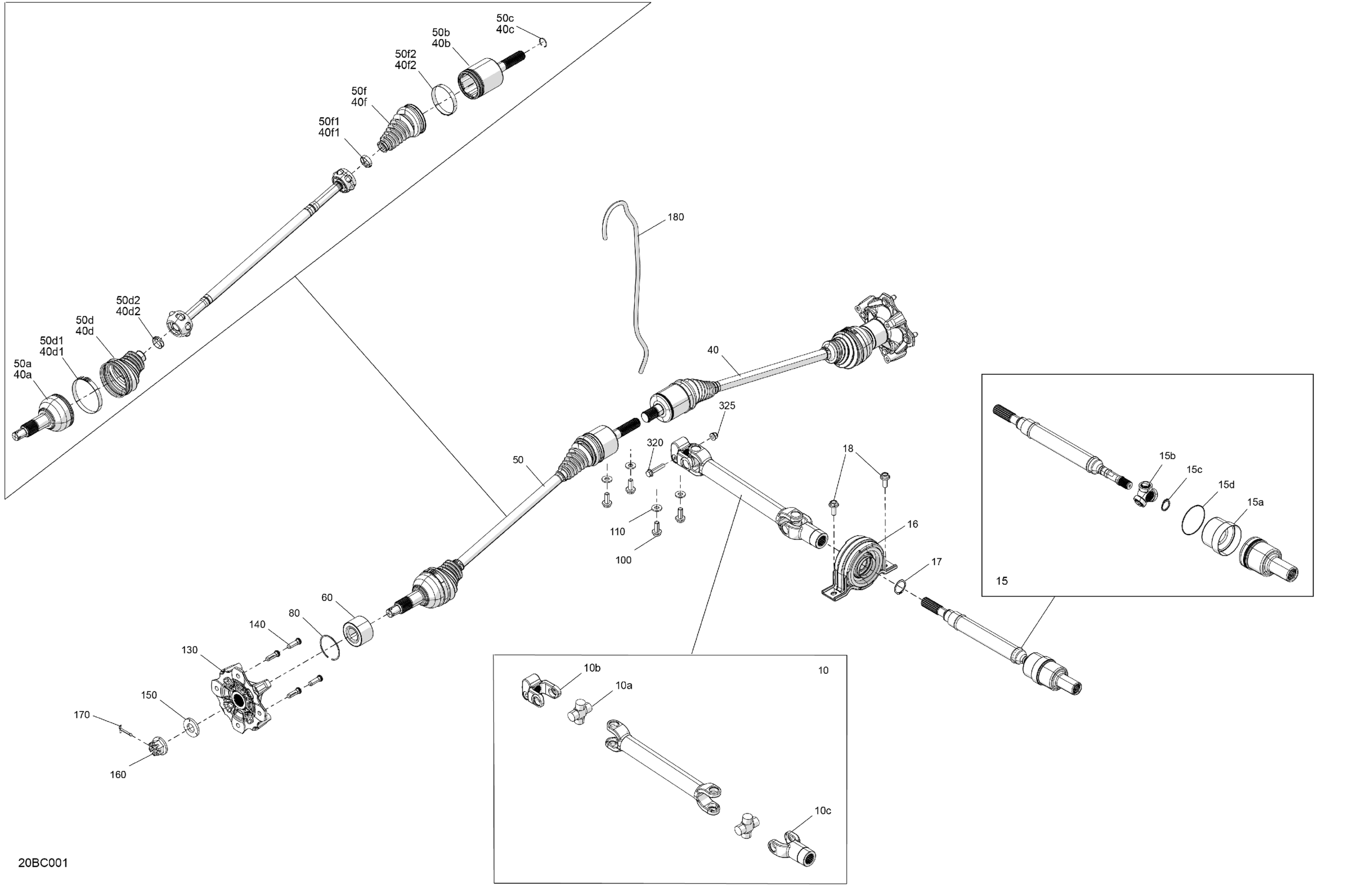

Can-Am Commander 700 EFI - DPS - 2023 Drive - Front - Common Parts Diagram

Drive Axle Ass'y | Includes 10 to 10c

705403289

$235.79

U-Joint Cross Kit

715900829

$72.36

Fixed Yoke

715900400

$55.19

Yoke

715900401

$32.81

Drive Axle Ass'y | Includes 15 to 15d

705403017

$238.03

Dust cover | Not shown

219800426

$24.60

Three Pin Joint | Not shown

219800433

$29.82

Circlip | Not shown

219800427

$1.12

O-Ring | Not shown

219800429

$5.75

Ball Bearing Ass'y

705403522

$44.00

Snap Ring

293370098

$3.01

Hex. Flange Screw M10 X 20

207502046

$1.74

RH Front CV Joint Ass'y | Includes 40 to 40f2

705402873

$226.84

JOINT_CV EXT - Call your local BRP dealership

715900440

Unavailable

RH Plunging Joint

715900688

$241.01

Circlip Joint | Not shown

705401349

$5.10

Boot Kit, Wheel Side

705401345

$39.52

Oetiker Clamp

715900282

$4.39

Oetiker Clamp, Small

715900283

$4.39

Boot Kit, Différential Side

705401355

$39.52

Oetiker Clamp, Small

715900261

$4.39

Oetiker Clamp, Large

715900262

$7.84

LH Front CV Joint Ass'y | Includes 50 to 50f2

705402874

$226.84

JOINT_CV EXT - Call your local BRP dealership

715900440

Unavailable

LH Plunging Joint

715900689

$241.01

Circlip Joint | Not shown

705401349

$5.10

Boot Kit, Wheel Side

705401345

$39.52

Oetiker Clamp

715900282

$4.39

Oetiker Clamp, Small

715900283

$4.39

Boot Kit, Différential Side

705401355

$39.52

Oetiker Clamp, Small

715900261

$4.39

Oetiker Clamp, Large

715900262

$7.84

Ball Bearing

293350150

$50.34

Circlip

293370019

$4.68

Hex. Flange Screw M10 X 25

207502546

$1.74

Conical Spring Washer 10 mm

234201474

$1.39

Wheel Hub

705502338

$108.18

Wheel Stud M10 X 1.25 | 2X4

250300055

$3.18

Conical Spring Washer M20

250200170

$11.00

Castle Nut M20

250100193

$6.66

Cotter Pin

250400084

$1.79

Polyurethane Hose 4000MM Long | Includes 250 to 250a

219704389

$21.42

Hex. Flange Screw M8 X 42

250001050

$0.95

Hex. Elastic Flange Nut M8

233281416

$1.25
