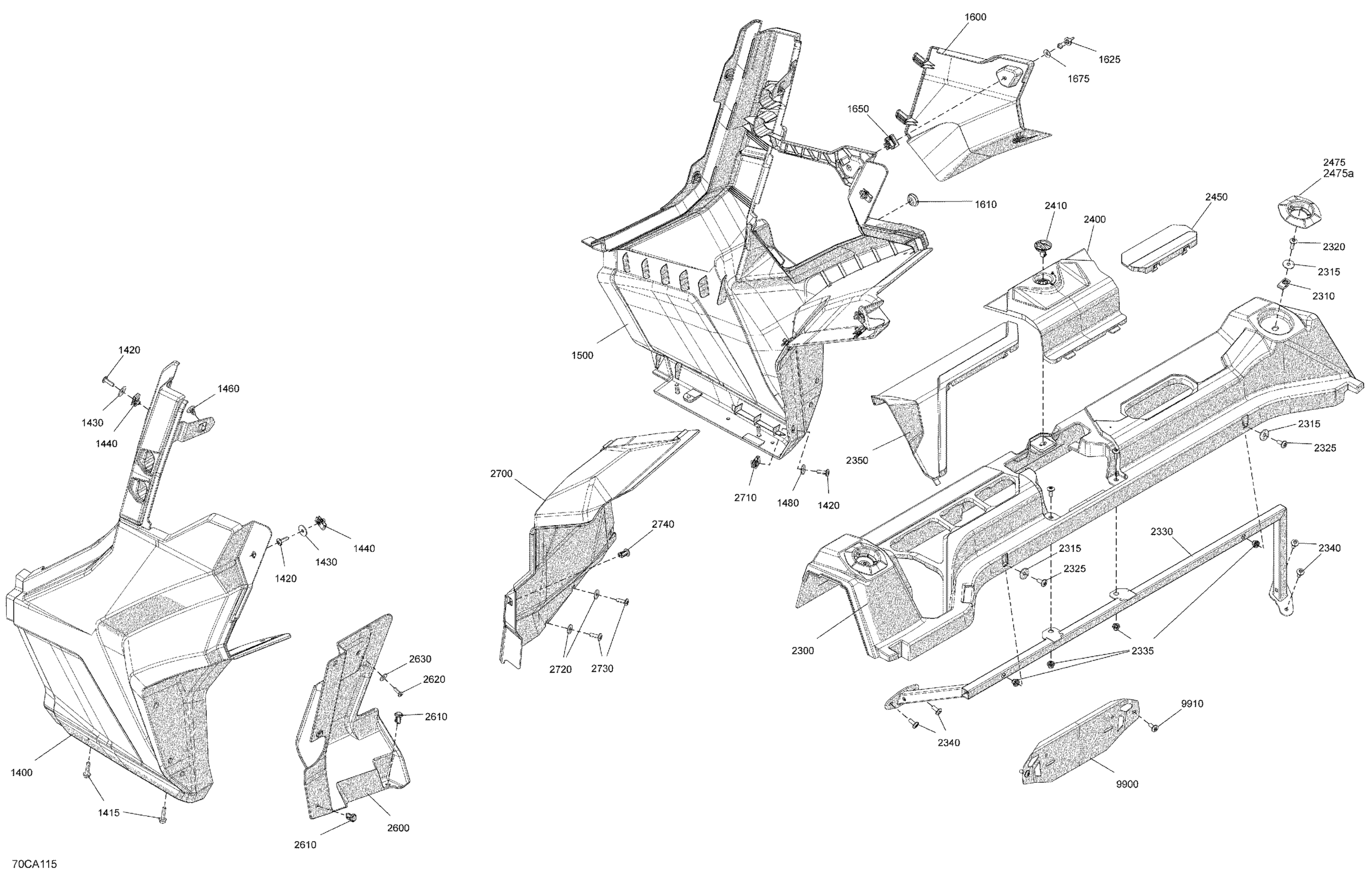

Can-Am Commander 1000R EFI - DPS_XT_XTP - 2021 Body - Rear Section Diagram

#

Description
Price

1400

LH Rear Fender

705015053

$204.99

1415

Hex. Flange Screw M6 X 25

207662554

$1.48

1420

Torx Screw M6 X 20

250000722

$1.68

1430

Flat Washer M6.6 X 22

250200162

$2.32

1440

Panel Nut M6 X 1.0

250100198

$2.11

1460

Black, Dart

414644300

$0.98

1480

Stainless Steel Flat Washer

234062670

$2.11

1500

RH Rear Fender

705015055

$204.99

1600

Air Filter Acces Door

705015057

$75.99

1610

Grommet

705003264

$4.09

1625

Quarter Turn

708400278

$4.29

1650

Clip

708400285

$3.99

1675

Washer

708400286

$3.99

2300

Upper Rear Cab Panel Kit

715007890

$469.99

2310

Panel Nut M6 X 1.0

250100198

$2.11

2315

Flat Washer M6.6 X 22

250200162

$2.32

2320

Torx Screw M6 X 20

250000722

$1.68

2325

Torx Truss Screw M6 X 16

250000721

$1.69

2330

Cab Panel Support

705015686

$124.99

2335

Insert Half Hex Body M6 x 1.0

250100199

$3.19

2340

Torx Truss Screw M6 X 16

250000721

$1.69

2350

CVT Air Inlet Cover

705011339

$18.99

2400

Liquid Acces Cover

705015149

$73.99

2410

Cover Latch Quarter Turn

708400065

$2.79

2450

Air Intake Cover

705011340

$16.99

2475

Rear Cage Trim Kit | Includes 2475 to 2475a

705016344

$28.99

2475a

Rear Cage Trim

705015862

$4.69

2600

LH Rear Wheel Arch Protector

705015886

$45.49

2610

Tuflok Plastic Rivet

293150230

$1.47

2620

Torx Screw K50 X 16

250000720

$1.69

2630

Washer M5

250200025

$0.74

2700

RH Rear Wheel Arch Protector

705016135

$45.49

2710

Panel Nut M6 X 1.0

250100198

$2.11

2720

Stainless Steel Flat Washer

234062670

$2.11

2730

Torx Screw M6 X 20

250000722

$1.68

2740

Tuflok Plastic Rivet

293150230

$1.47

9900

License Plate Support

705015919

$17.49

9910

Torx Truss Screw M6 X 16

250000721

$1.69
