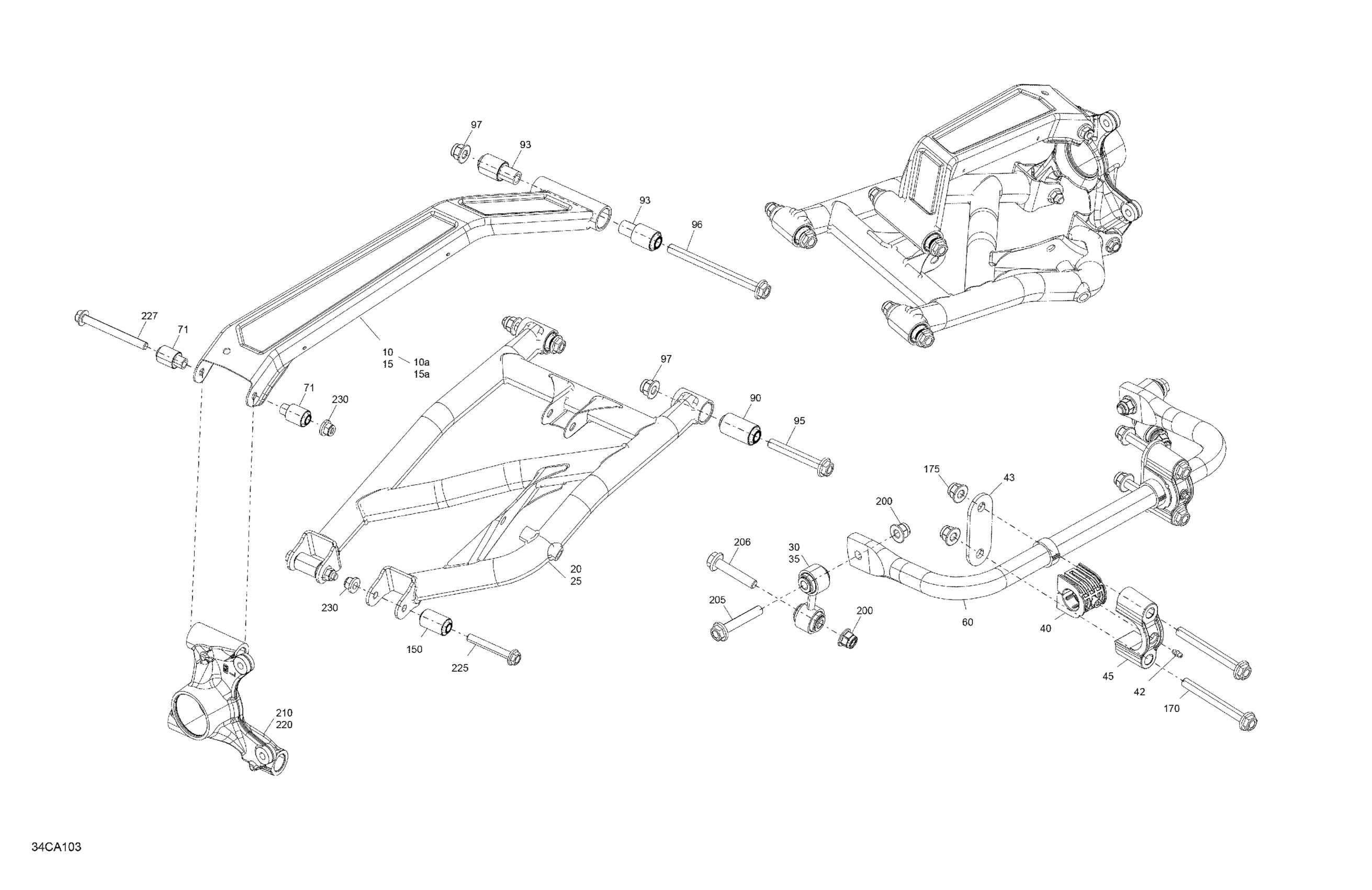

Can-Am Commander 1000R EFI - DPS_XT_XTP - 2021 Suspension - Rear - XTP Diagram

#

Description
Price

10

Orange Crush, LH Upper Suspension Arm Ass'y With Bushing | Includes 10 to 10a This part replaces 706004391.

715010686

$249.99

10a

LH Upper Suspension Arm Ass'y With Bushing This part replaces 706003715.

715010684

$249.99

15

Orange Crush, RH Upper Suspension Arm Ass'y With Bushing | Includes 15 to 15a This part replaces 706004392.

715010697

$249.99

15a

RH Upper Suspension Arm Ass'y With Bushing This part replaces 706003716.

715010695

$249.99

20

LH Lower Suspension Arm Ass'y With Bushing This part replaces 706003727.

715010704

$249.99

25

RH Lower Suspension Arm Ass'y With Bushing This part replaces 706003728.

715010711

$249.99

30

Sway Bar Double Link

706003004

$111.49

35

Sway Bar Double Link

706003003

$111.49

40

Stabilizer Bar Bushing

706004266

$8.43

42

Grease Fitting

408200700

$3.49

43

Plate Support

706002977

$5.09

45

Clamp

706002970

$16.49

60

Sway Bar Ass'y

706003475

$126.99

71

Not Available As Spare Part - Friction Washer

Unavailable

90

Suspension Arm Bushing

706003528

$3.91

93

Suspension Arm Bushing

706004829

$3.91

95

Hex. Flange Screw M12X1.75X85

250001168

$3.38

96

Screw Hex Flange DIN.6921 M12X1.75X

250001167

$3.29

97

Elastic Flange Nut M12

250001195

$2.64

150

Not Available As Spare Part - Friction Washer

Unavailable

170

Screw Flange M12 X 115

250000860

$6.67

175

Elastic Flange Nut M12

250001195

$2.64

200

Elastic Flange Nut M12

250001195

$2.64

205

Hex. Flange Screw M12 X 70

250000858

$3.80

206

Flange Screw M12 X 60

250000857

$7.41

210

LH Rear Knuckle Anchorage Ass'y | Includes 210 to 210c

715010560

$126.99

220

RH Rear Knuckle Anchorage Ass'y | Includes 220 to 220c

715010561

$126.99

225

Hex. Screw M10 X 70, Scotch Grip

207507046

$7.41

227

Hex. Screw M10 X 100, Scotch Grip

230500046

$7.41

230

Hex. Flange Elastic Nut M10

233201436

$2.11
