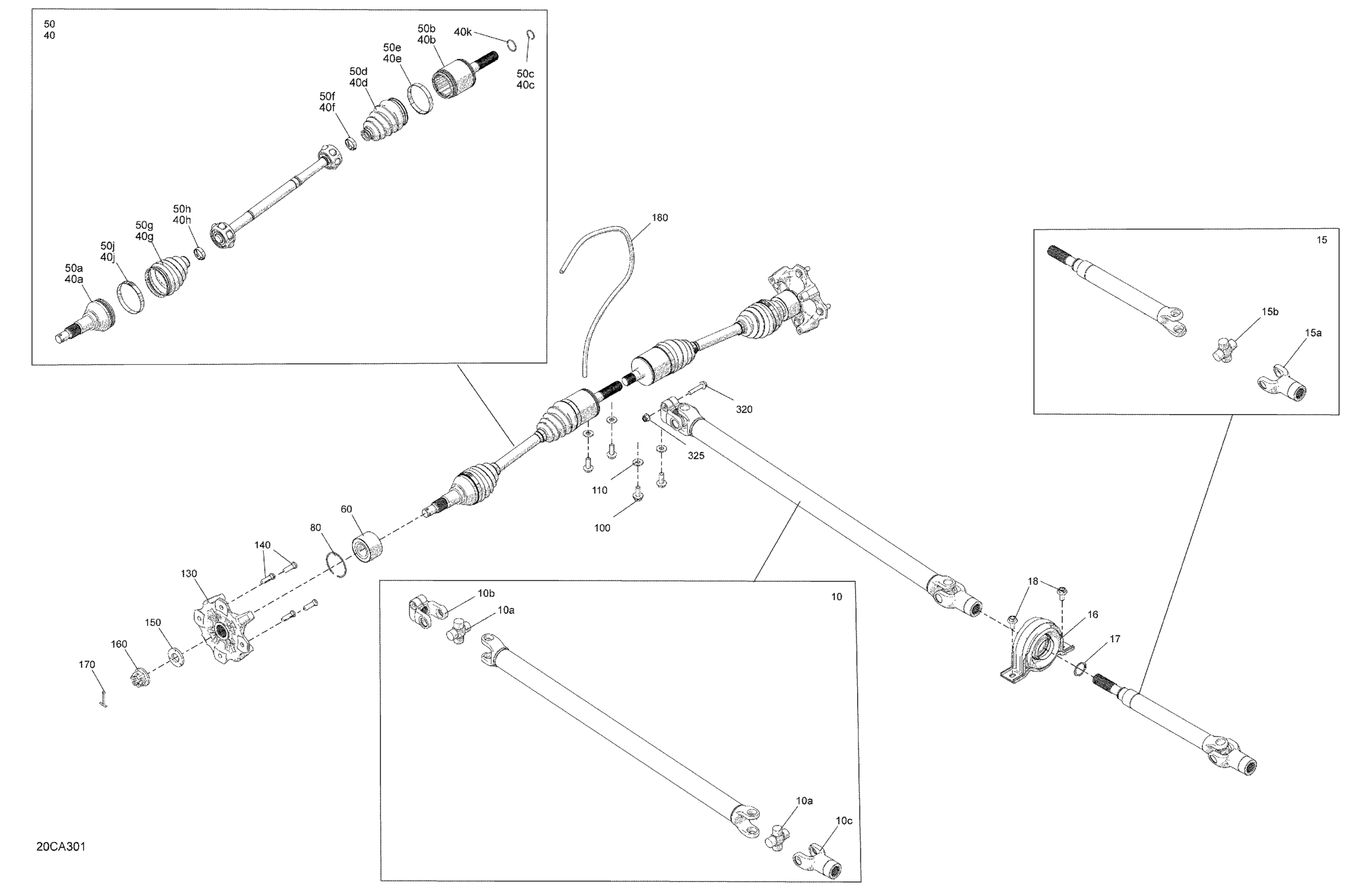

Can-Am Commander 1000R EFI - DPS_XT_XTP - 2021 Drive - Front Section - Common Parts Diagram

#

Description
Price

10

Drive Axle Ass'y | Includes 10 to 10c

705403289

$244.58

10a

J-Joint Cross Kit

715900402

$87.66

10b

Fixed Yoke

715900400

$59.97

10c

Yoke

715900401

$36.89

15

Drive Axle Ass'y | Includes 15 to 15b

705403290

$244.58

15a

Yoke

715900401

$36.89

15b

J-Joint Cross Kit

715900402

$87.66

16

Ball Bearing Ass'y

705403522

$46.12

17

Snap Ring

293370098

$3.11

18

Hex. Flange Screw M10 X 20

207502046

$1.74

40

RH Front - Premium CV Axle | Includes 40 to 40f2

705402030

$233.82

40

RH Front Half Shaft | Includes 40 to 40f2

705402717

$232.74

40

Performance CV Axle | Includes 40 to 40g

705402282

$232.74

40a

JOINT_CV EXT - Call your local BRP dealership

715900440

Unavailable

40a

CV Joint

715900619

Unavailable

40b

RH Plunging Joint

715900441

Unavailable

40b

LH Plunging Joint

715900568

$267.66

40c

Circlip Joint | Not shown

705401349

$5.38

40c

Circlip

715900569

$5.52

40d

Boot Kit, Wheel Side

705401345

$41.51

40d

Boot Kit, Wheel Side

705401354

$41.51

40e

Oetiker Clamp

715900282

$4.39

40e

Oetiker Clamp, Large

715900260

$7.84

40f

Oetiker Clamp, Small

715900283

$4.39

40f

Oetiker Clamp, Small

715900261

$4.39

40g

Boot Kit, Différential Side

705401355

$41.51

40h

Oetiker Clamp, Small

715900261

$4.39

40j

Oetiker Clamp, Large

715900262

$7.84

40k

O-ring

715900580

$2.31

50

LH Front - Premium CV Axle | Includes 50 to 50f2

705402031

$233.82

50

LH Front Half Shaft | Includes 50 to 50f2

705402718

$233.82

50a

JOINT_CV EXT - Call your local BRP dealership

715900440

Unavailable

50b

LH Plunging Joint

715900442

Unavailable

50c

Circlip Joint | Not shown

705401349

$5.38

50d

Boot Kit, Wheel Side

705401345

$41.51

50e

Oetiker Clamp

715900282

$4.39

50f

Oetiker Clamp, Small

715900283

$4.39

50g

Boot Kit, Différential Side

705401355

$41.51

50h

Oetiker Clamp, Small

715900261

$4.39

50j

Oetiker Clamp, Large

715900262

$7.84

60

Ball Bearing

293350150

$51.93

80

Circlip

293370019

$4.98

100

Hex. Flange Screw M10 X 25

207502546

$1.74

110

Conical Spring Washer 10 mm

234201474

$1.39

130

Wheel Hub

705502338

$115.35

140

Wheel Stud M10 X 1.25 | 2X4

250300055

$3.28

150

Conical Spring Washer M20

250200170

$11.00

160

Castle Nut M20

250100193

$6.66

170

Cotter Pin

250400084

$1.79

180

Polyurethane Hose 4000MM Long | Includes 250 to 250a

219704389

$21.42

320

Hex. Flange Screw M8 X 42

250001050

$0.95

325

Hex. Elastic Flange Nut M8

233281416

$1.25
