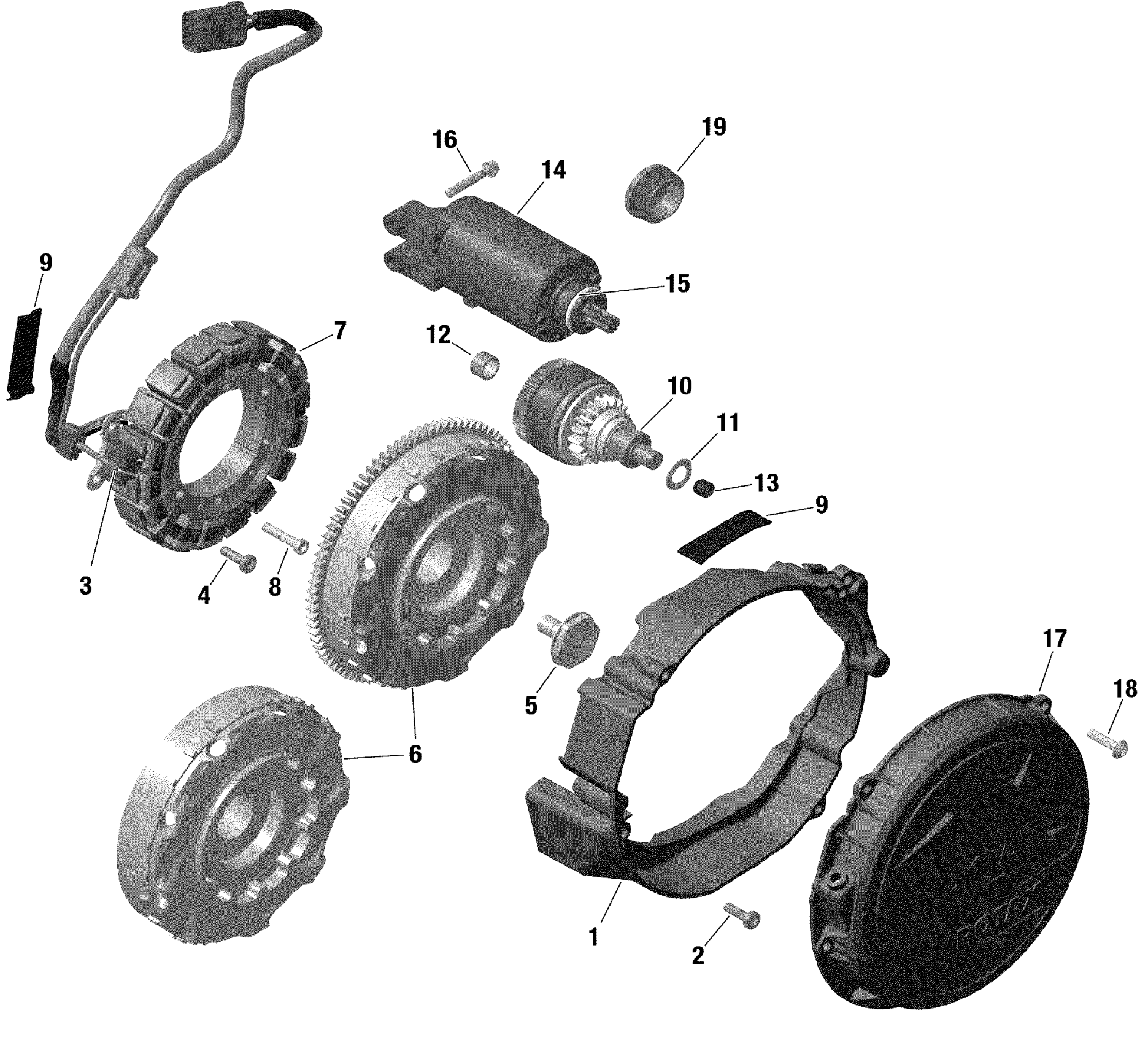

Ski-Doo BACKCOUNTRY 600R E-TEC - 2020 Electric - Magneto And Starter - 600R E-TEC Diagram

#

Description
Price

1

Ignition Housing

420911854

$22.36

2

Torx Flange Screw M6 X 20

420441386

$2.00

3

Pickup Ass'y

420966842

$99.97

4

Torx Flange Screw M6 X 20

420441386

$2.00

5

Collar Hex Screw M12 X 25

420840851

$17.88

6

Magneto Flywheel

420866048

$689.99

6

Magneto Flywheel

420866046

$579.99

7

Stator Ass'y 55V/1300W

420864427

$478.99

8

Allen Screw M6 X 30

420540001

$3.01

9

Adhesive Pad, 1.6 mm X 20 mm X 60 mm

420201360

$1.70

10

E-Starter Drive Ass'y

420888044

$319.49

11

Thrust Washer

420827261

$7.09

12

Needle Bushing

420232482

$17.88

13

Spring

420938204

$6.07

14

Electric Starter | Includes no. 14-15

420893820

$319.49

15

O-Ring

420250141

$17.88

16

Torx Flange Screw M6 X 35

420440274

$0.96

17

Starter Housing

420912125

$33.55

18

Plastite Screw

420940431

$6.07

19

Plug

420201930

$4.28
