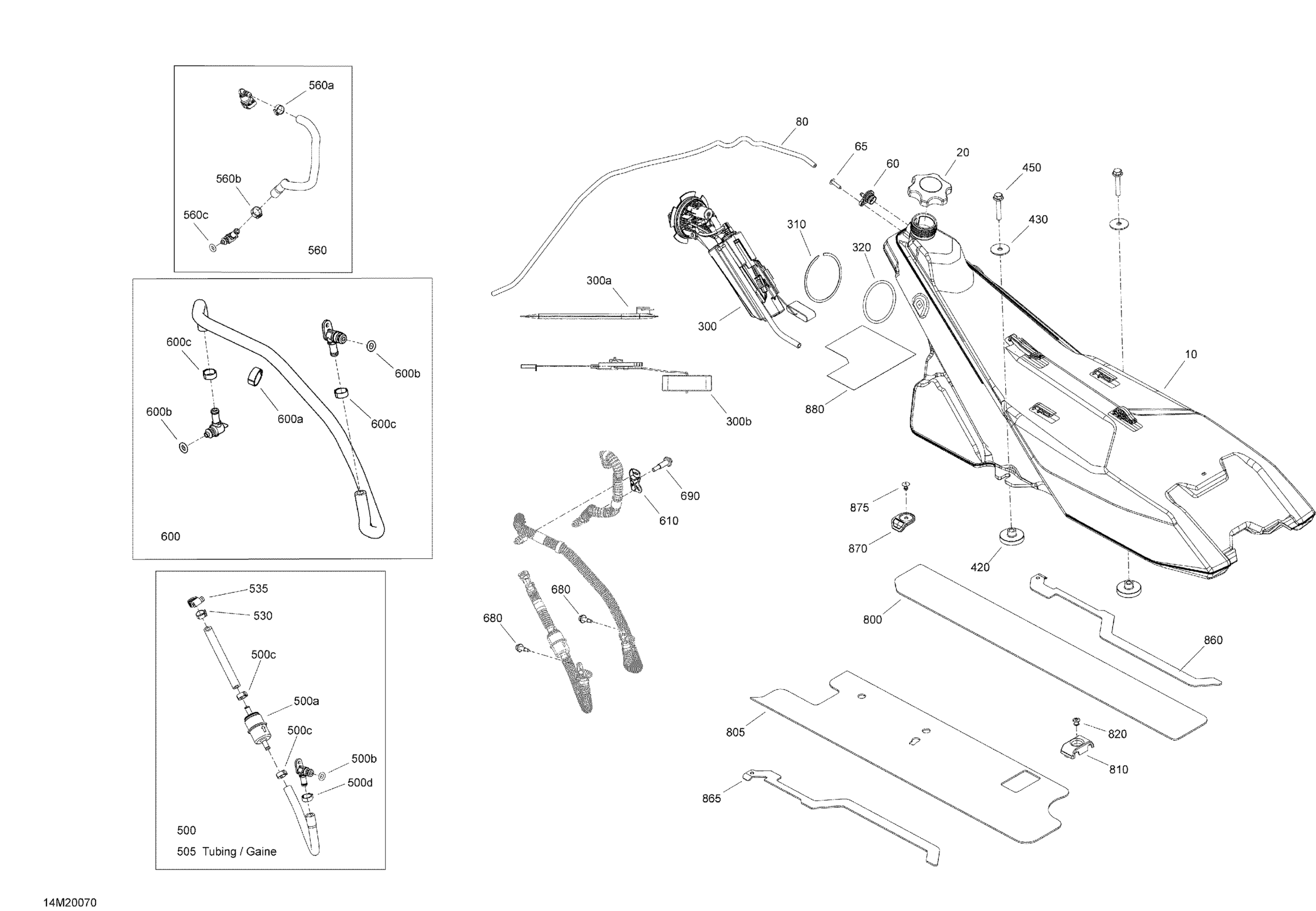

Ski-Doo BACKCOUNTRY 600R E-TEC - 2020 Engine - Fuel Diagram

#

Description
Price

10

Fuel Tank

415130432

$329.99

20

Fuel Tank Cap

513033860

$24.49

60

Check Valve

513033849

$36.99

65

Truss Torx Screw K40 X 16

250000918

$2.11

80

Polyurethane Hose 10000Mm Long

219704410

$56.99

300

Fuel Pump Ass'y | Includes 300a to 300a3

513034236

$259.99

300a

Fuel Filter

415131068

Unavailable

300b

Fuel Level Sensor

415130726

$149.99

310

Circlip

513033798

$13.99

320

O-Ring

513033862

$23.99

420

Socket

513034007

$7.99

430

Washer | Not Shown

503193995

$4.54

450

Hex. Flange Screw M6 X 35

207663544

$0.90

500

Hose Ass'y | Includes 500 to 500d

513034023

$79.49

500a

Fuel Filter

513034047

$21.99

500b

O-Ring

513033668

$10.99

500c

Oetiker Clamp

293650125

$3.29

500d

Crimp Clamp

293650053

$3.09

505

Tubing 16 Mm 1000Mm Long

219704408

$7.49

530

Tridon Gear Clamp

293650171

$3.09

535

Crimp Clamp, 15.3-706R

293650047

$3.29

560

Hose Ass`y | Includes 560 to 560c This part replaces 513033920.

415130219

$153.49

560a

Oetiker Clamp

293650125

$3.29

560b

Crimp Clamp

293650053

$3.09

560c

O-Ring

513033668

$10.99

600

Hose Ass`y | Includes 600 to 600c This part replaces 513034001.

415130221

$153.49

600a

Ring

513033910

$7.99

600b

O-Ring

513033668

$10.99

600c

Crimp Clamp

293650053

$3.09

610

Bracket

513033903

$1.49

680

Hex. Flange Screw M5 X 16

250000911

$0.85

690

Hex. Flange Screw M5 X 28 S.Grip

250001018

$1.46

800

Insulated Foam

513033913

$5.59

805

Insulated Foam

513033914

$16.99

810

Tank Guide

513033826

$2.29

820

Pop Rivet 3/16"

390402200

$0.35

860

Foam

513033915

$19.49

865

Foam

513033916

$4.69

870

Retainer Plate

513033917

$0.57

875

Pop Rivet 3/16" | DS 650 X

293150104

$1.09
