Description

Price

1

Gasket

420430056

$7.80

2

Injector PTO | Includes 2 to 5

420874863

$513.82

3

Crush Ring

415129497

$7.38

4

O-Ring

415129498

$12.51

5

O-Ring

415129499

$6.82

6

Injector MAG | Includes 6 to 9

420874864

$513.82

7

Crush Ring

415129497

$7.38

8

O-Ring

415129498

$12.51

9

O-Ring

415129499

$6.82

10

O-Ring

420430775

$3.38

11

Tube

420874190

$5.22

12

Washer

420901550

$2.06

13

Screw M8X60

420840096

$2.06

14

Reed Valve Ass'y

420924798

$39.20

15

Intake Socket

420867390

$109.20

16

Tapping Screw M5 X 22

420841550

$1.68

17

Clamp

420251209

$8.34

18

Throttle Body Socket This part replaces 420893808.

420685752

$1,228.43

19

Throttle Valve Position Sensor | Includes no. 2-3

420866680

$66.89

20

Not Available As Spare Part - Friction Washer

Unavailable

21

Cable Guide

420874163

$18.43

22

Torx Flange Screw M6 X 25

420440234

$3.00

23

Tie Rap

420951785

$4.28

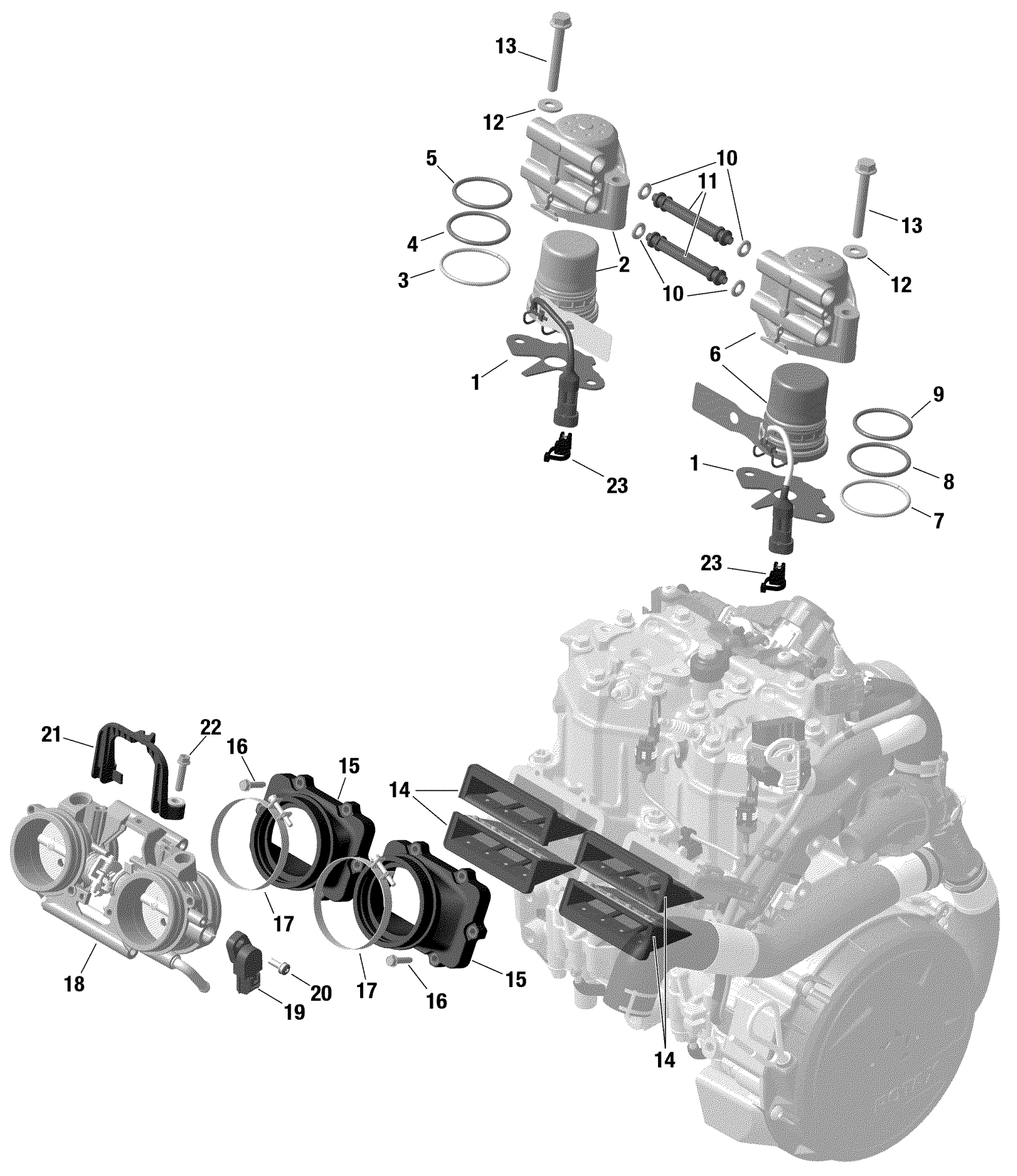

Ski-Doo BACKCOUNTRY 600R E-TEC - 2020 Engine - EFI - 600R E-ETEC Diagram

Gasket

Injector PTO | Includes 2 to 5

Crush Ring

O-Ring

O-Ring

Injector MAG | Includes 6 to 9

Crush Ring

O-Ring

O-Ring

O-Ring

Tube

Washer

Screw M8X60

Reed Valve Ass'y

Intake Socket

Tapping Screw M5 X 22

Clamp

Throttle Body Socket This part replaces 420893808.

Throttle Valve Position Sensor | Includes no. 2-3

Not Available As Spare Part - Friction Washer

Cable Guide

Torx Flange Screw M6 X 25

Tie Rap
