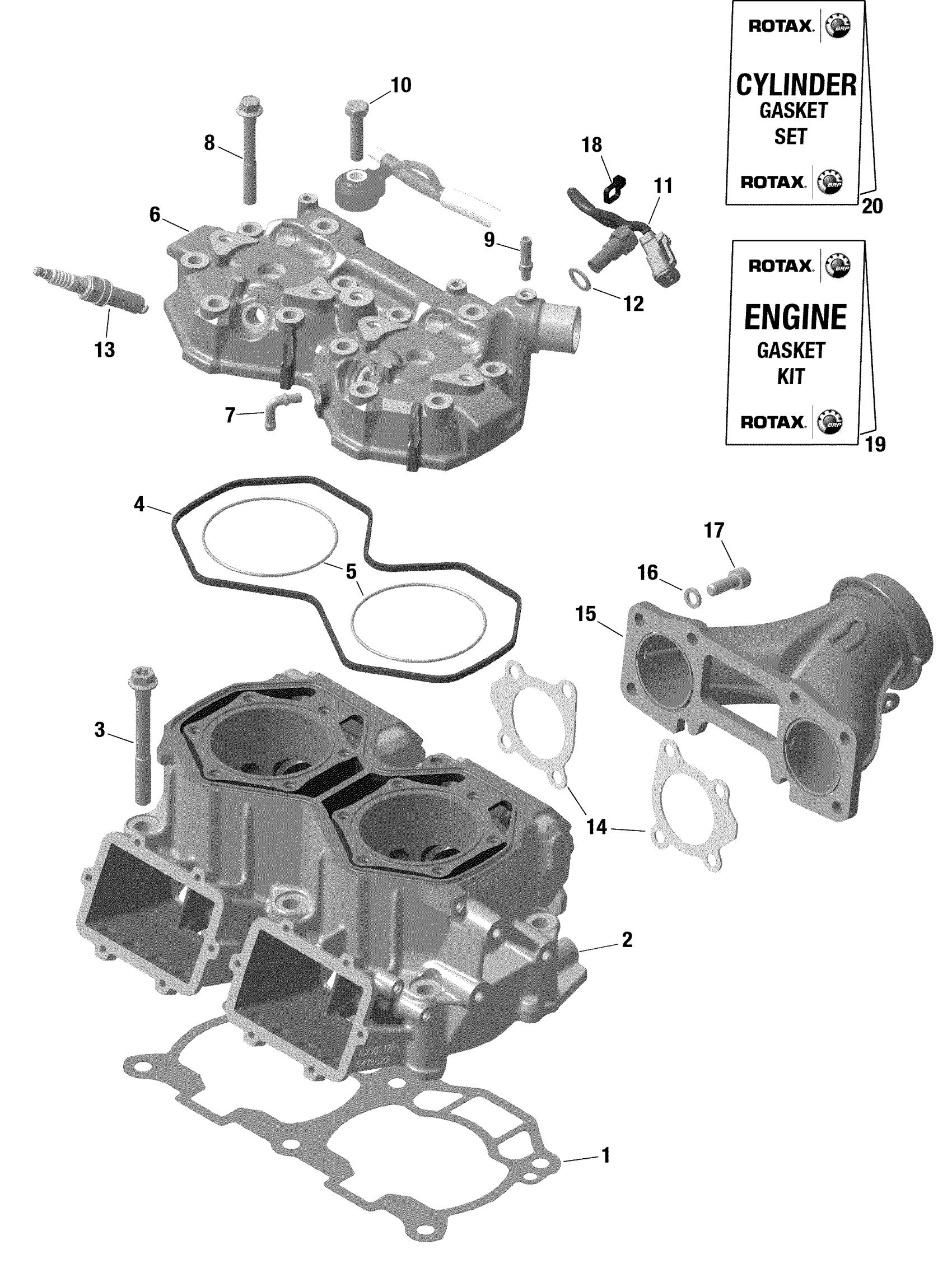

Ski-Doo BACKCOUNTRY 600R E-TEC - 2020 Engine - Cylinder And Cylinder Head - 600R E-TEC Diagram

Gasket 0.9 | Included in gasket kit

420831074

$20.12

Gasket 0.8 | Included in gasket kit

420831073

$22.36

Gasket 0.7 | Included in gasket kit

420831072

$18.63

Gasket 0.6 | Included in gasket kit

420831071

$17.88

Gasket 0.5 | Included in gasket kit

420831070

$16.39

Cylinder Block Plasma

420413524

$924.60

Torx Flange Screw M10 X 90 -SW 13/T50

420441187

$17.13

Square Ring | Included in gasket kit

420430044

$5.52

O-Ring Cylinder | Included in gasket kit

420831825

$5.36

Head Cylinder Cover

420413426

$271.61

Fittin 90D

420924802

$3.13

Collar Hex Screw M8 X 68.5

420640959

$5.91

Hose Nipple

420924724

$14.10

Hex. Screw M8 X 35

207083544

$1.06

Temperature Sensor This part replaces 420664508.

420664509

$138.03

Aluminum Sealing Ring

420250016

$5.06

Spark Plug NGK ILKR8Q7 This part replaces 420297938.

415130651

$20.12

Gasket | Included in gasket kit

420430487

$7.99

Exhaust Manifold

420873040

$261.91

Washer

420427290

$2.00

Allen Screw M8 X 22

420841051

$2.00

Tie Wrap 142 mm

293750002

$1.01

Engine Gasket Set

420894374

$236.54

Gasket Set Cylinder

420894261

$267.88
