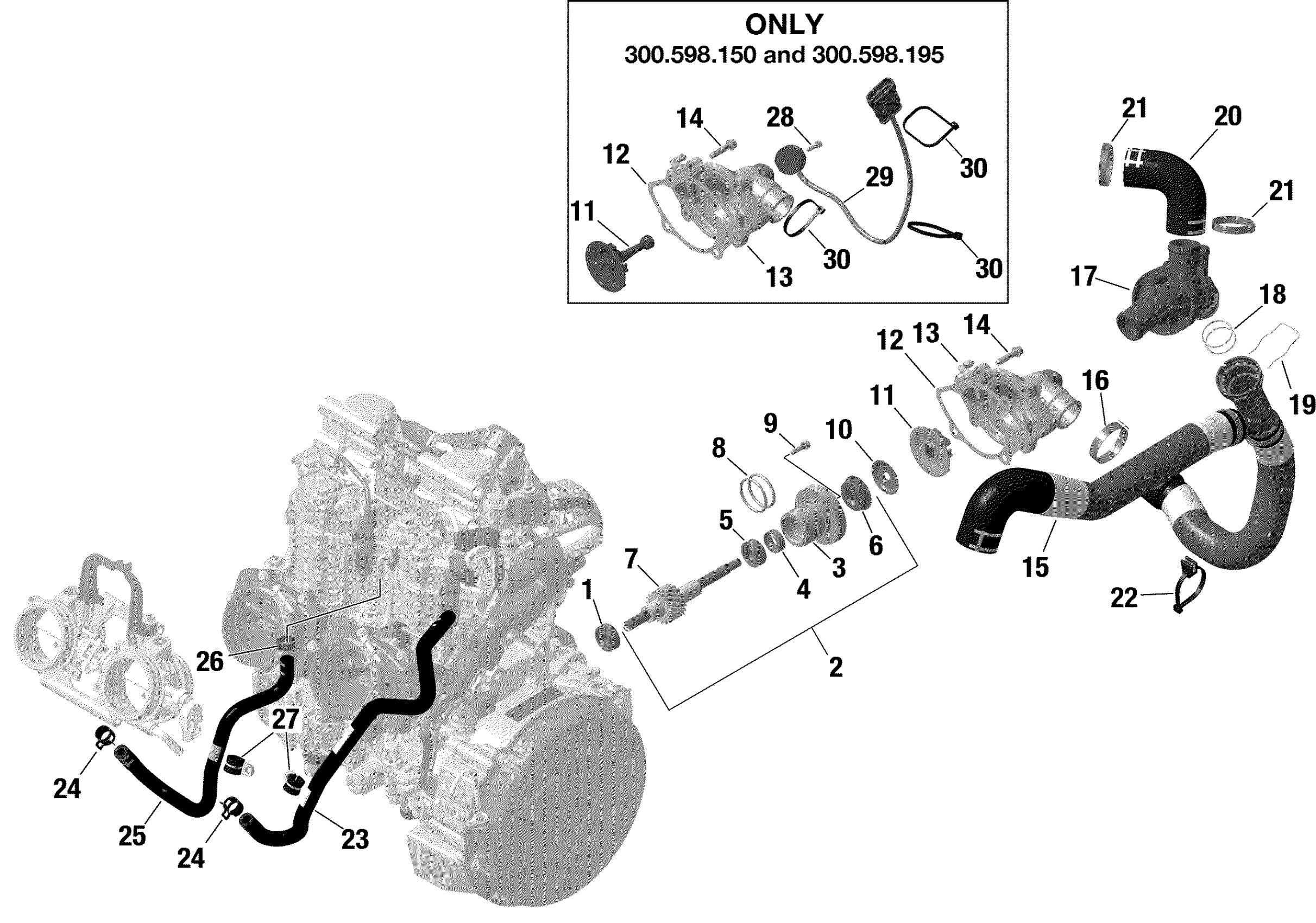

Ski-Doo BACKCOUNTRY 600R E-TEC - 2020 Engine - Cooling - 600R E-TEC Diagram

#

Description
Price

1

Ball Bearing

420232100

$20.99

2

Water Pump Shaft Ass'y | Except SHOT This part replaces 420891479.

420891483

$291.49

2

Water Pump Shaft | SHOT

420891478

$291.49

3

Step Collar

420847933

$38.99

4

Oil Seal

420230198

$15.89

5

Ball Bearing

420232100

$20.99

6

Rotary Seal

420650371

$43.49

7

Not Available As Spare Part - Friction Washer

Unavailable

8

O-Ring

420950890

$4.44

9

Allen Screw M5 x 16

420840514

$1.90

10

Cover Washer

420944035

$5.39

11

Impeller

420222507

$19.99

11

Impeller

420222508

$63.49

12

Gasket | Included in gasket kit

420931813

$13.77

13

Water Pump Housing

420933633

$62.49

13

Water Pump Housing

420933636

$62.49

14

Torx Flange Screw M6 X 25

420440234

$3.06

15

Molded Hose This part replaces 420822803.

420822805

$73.99

16

Clamp 26-38MM

420951120

$4.23

17

Thermostat Housing | Includes 17 to 18

420822836

$74.99

18

O-Ring

420430062

$2.11

19

Spring Clip

420939344

$2.11

20

Return Hose

420822820

$11.60

21

Clamp 26-38MM

420951120

$4.23

22

Tie Rap 200 X 4.6

420951652

$7.65

23

Formed Hose

420201775

$11.60

24

Clamp

420853511

$7.51

25

Formed Hose

420201771

$11.60

26

Clamp

420851458

$7.41

27

Clamp

420851250

$10.33

28

Allen Screw M4 X12

420440292

$1.01

29

Angle Sensor | SHOT

420864400

$149.99

30

Tie Wrap 142 mm

293750002

$1.25
