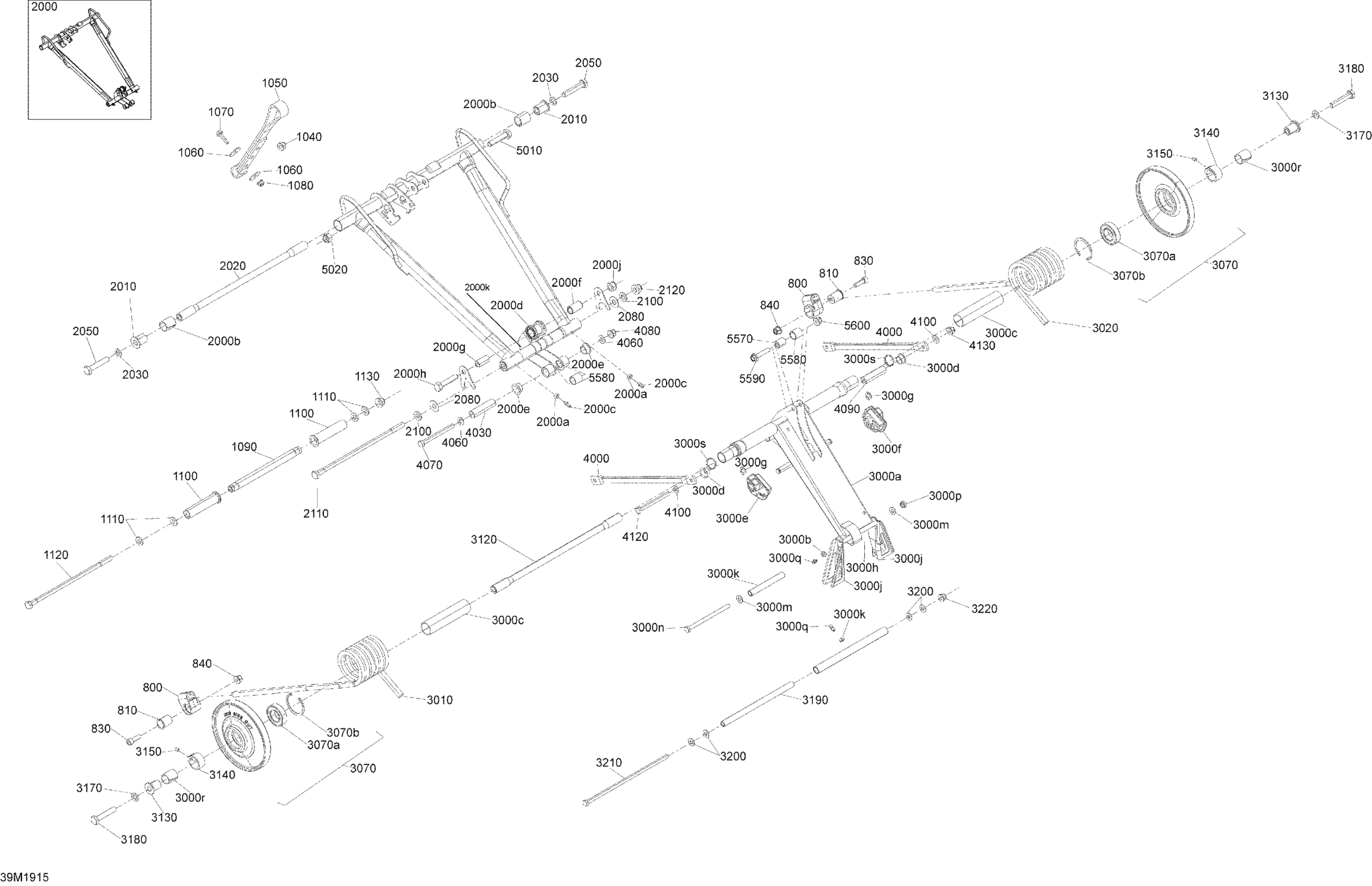

Ski-Doo BACKCOUNTRY 600R E-TEC, 2019 Rear Suspension - Upper Section - Europe Diagram

#

Description
Price

800

Spring Support Kit

861805547

$10.49

810

Spring Support Kit

861805547

$10.49

830

Socket Screw M8 X 25

205082554

$2.11

840

Elastic Flange Nut M8

233281466

$1.01

1040

Hex. Flange Elastic Nut M6

233261466

$2.00

1050

Stopper Strap

503194679

$29.49

1060

Washer | Not Shown

503193995

$4.54

1070

Hex. Flange Screw M6 X 1.0 X 30

207663056

$4.44

1080

Hex. Flange Elastic Nut M6

233261466

$2.00

1090

Pivot Axle

503194937

$11.54

1100

Center Bushing

503191259

$11.49

1110

Washer

503192494

$3.17

1120

Bolt M8 X 248mm

503192440

$30.49

1130

Elastic Flange Nut M8

233281466

$1.01

2000

Front Arm Ass'y | Includes 2000 to 2000n

503195197

$248.99

2000a

Hexagonal Nut M6

232061404

$0.34

2000b

Extended Bushing

503191556

$7.83

2000c

Grease Fitting

408200700

$3.49

2000d

Rocker

503193464

$83.99

2000e

Swivel Bushing

503191555

$7.83

2000f

Bushing

503193037

$16.18

2000g

Bushing | Includes 240d to 240d1

503189282

$4.34

2000h

Hex. Screw M10 X 1.5 X 50

207005044

$3.80

2000j

Elastic Locking Nut M10 X 1.5

233601416

$1.69

2000k

Spacer

503194466

$22.49

2010

Bushing

503194970

$15.79

2020

Upper Shaft

503193441

$38.99

2030

Washer

503192496

$0.77

2050

Hex. Screw S.Grip M10 X 55

250000605

$8.11

2080

Washer

250200032

$5.08

2100

Flat Washer

250200143

$3.17

2110

Bolt M10 X 251MM

503193227

$17.29

2120

Flange Elastic Nut M10

233201466

$3.17

3000a

Rear Arm | Includes 3000a to 3000a7

503192464

$201.49

3000b

Hexagonal Nut M6

232061404

$0.34

3000c

Bushing

572080700

$17.39

3000d

Swivel Bushing

503191555

$7.83

3000e

LH Cam Adjuster

503191565

$16.49

3000f

RH Cam Adjuster

503191566

$16.49

3000g

E-Circlip

293370013

$0.65

3000h

Upper Axle, Pivot Arm

503144300

$11.65

3000j

Pivot Arm | Includes 3000j to 3000j3

503191209

$124.99

3000k

Hexagonal Nut M6

232061404

$0.34

3000m

Washer

503192494

$3.17

3000n

Bolt M8, Short

732601197

$15.36

3000p

Hex. Elastic Stop Nut M8

232581414

$0.56

3000q

Grease Fitting

408200700

$3.49

3000r

Extended Bushing

503191556

$7.83

3000s

Washer

503191651

$8.32

3010

Black, LH Spring Square

503193158

$79.49

3020

Black, RH Spring Square

503193159

$79.49

3070

Wheel 155 | Includes 3070 to 3070b

503191150

$48.49

3070a

Ball Bearing

503193548

$17.99

3070b

Retaining Ring

415129780

$15.79

3120

Upper Shaft

503193441

$38.99

3130

Bushing

503194970

$15.79

3140

Retaining Ring

503193439

$16.49

3150

Socket Set Screw M6 X 8

206260844

$1.48

3170

Washer

503192496

$0.77

3180

Hex. Screw S.Grip M10 X 55

250000605

$8.11

3190

Pivot Arm Axle

503189156

$21.99

3200

Washer

503192494

$3.17

3210

Bolt M8 X 248mm

503192440

$30.49

3220

Elastic Flange Nut M8

233281466

$1.01

4000

Acceleration Link Rod

503192900

$28.49

4030

Axle

503193993

$17.39

4060

Washer

503192494

$3.17

4070

Screw M8 X 90

503193372

$4.44

4080

Elastic Flange Nut M8

233281466

$1.01

4090

Axle

503193993

$17.39

4100

Washer

503192494

$3.17

4120

Screw M8 X 90

503193372

$4.44

4130

Elastic Flange Nut M8

233281466

$1.01

5570

Axle Shock Absorber

503196509

$12.58

5580

Leg Cushion

505072663

$9.23

5590

Hex. Flange Screw M8 X 40

207684044

$1.48

5600

Elastic Flange Nut M8

233281466

$1.01
