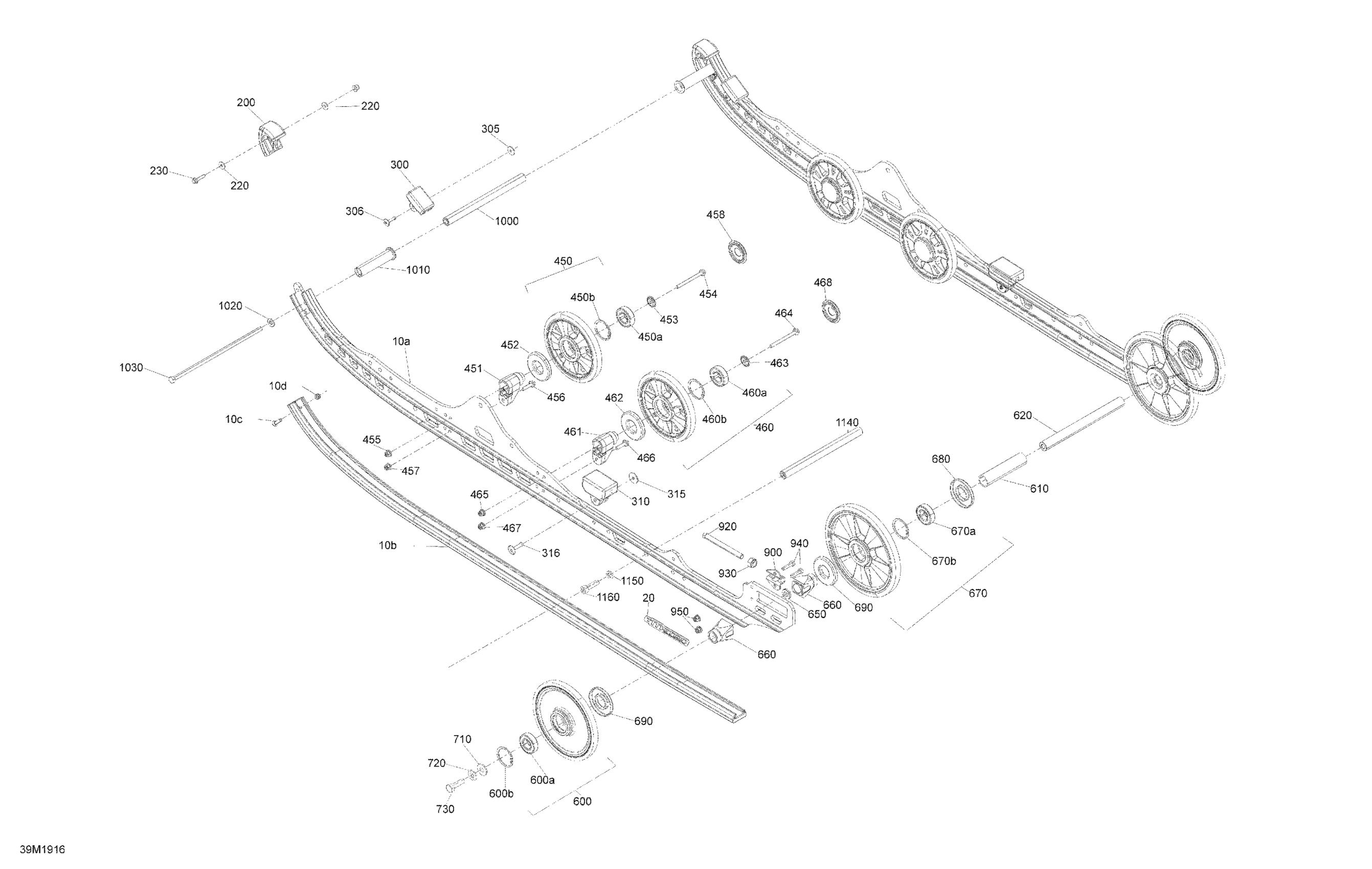

Ski-Doo BACKCOUNTRY 600R E-TEC, 2019 Rear Suspension - Lower Section Diagram

#

Description
Price

10a

Deep Black, Rail_Suspension 146 This part replaces 503195177.

503196764

$286.12

10b

Black, Slider 146

503191499

$33.05

10c

Phillips Screw M6 X 25

208562531

$1.74

10d

Elastic Stop Nut M6

232561414

$1.55

20

Runner Decal

516008430

$12.80

200

Runner Protector

503192299

$23.82

220

Washer

250200140

$0.83

230

Hex. Flange Screw M5 X 25

207652544

$0.42

240

Flange Elastic Nut M5

233251434

$1.66

300

Rubber Stopper

503190576

$10.23

305

Washer

503191273

$1.06

306

Pop Rivet 3/16

293150224

$0.98

310

Rubber Stopper

503193504

$12.69

315

Washer

503191273

$1.06

316

Pop Rivet 3/16

293150224

$0.98

450

Black, Wheel Ass'y 152 mm | Includes 450 to 450b

503191755

$46.12

450a

Ball Bearing | Package-STD

503190396

$7.12

450b

Retaining Ring

415129371

$8.92

451

Casted Support

503193894

$12.75

452

Labyrinth Seal

503190434

$4.29

453

Wheel Cup M6

503191820

$4.66

454

Hex. Flange Screw M6 X 70

250000944

$3.61

455

Hex. Flange Elastic Nut M6

233261466

$1.66

456

Hex. Flange Screw M6 X 25

250000945

$3.61

457

Hex. Flange Elastic Nut M6

233261466

$1.66

458

Black, Wheel Cap

503192771

$2.28

460

Black, Wheel Ass'y 152 mm | Includes 450 to 450b

503191755

$46.12

460a

Ball Bearing | Package-STD

503190396

$7.12

460b

Retaining Ring

415129371

$8.92

461

Casted Support

503193894

$12.75

462

Labyrinth Seal

503190434

$4.29

463

Wheel Cup M6

503191820

$4.66

464

Hex. Flange Screw M6 X 70

250000944

$3.61

465

Hex. Flange Elastic Nut M6

233261466

$1.66

466

Hex. Flange Screw M6 X 25

250000945

$3.61

467

Hex. Flange Elastic Nut M6

233261466

$1.66

468

Black, Wheel Cap

503192771

$2.28

600

Wheel 200, Black | Includes 600 to 600b

503191741

$49.97

600a

Ball Bearing | Package-STD

503190396

$7.12

600b

Retaining Ring

415129371

$8.92

610

Rear Axle

503190429

$59.97

620

Spacer

503196317

$15.35

650

Washer

503190432

$12.52

660

Rear Wheel Spacer

503190428

$6.06

670

Black, Wheel Ass'y 200 mm | Includes 670 to 670b

503193098

$49.97

670a

Ball Bearing | Package-STD

503190396

$7.12

670b

Retaining Ring

415129371

$8.92

680

Labyrinth Seal

503190682

$5.85

690

Labyrinth Seal

503190434

$4.29

710

Washer

503191910

$2.25

720

Conical Spring Washer 10 mm

234201474

$1.39

730

Hex Screw With Nilon Patch, M10 X 35

250000817

$3.61

900

Tensioner

503192583

$5.85

920

Hex Screw M10 x 100

230100054

$5.29

930

Elastic Locking Nut M10

233601466

$1.74

940

Hex. Flange Screw S.Grip M6 X 20

207562054

$1.74

950

Hex. Flange Elastic Nut M6

233261466

$1.66

1000

Axle

503196069

$10.45

1010

Center Bushing

503191259

$8.97

1020

Washer

503194400

$0.54

1030

Bolt M6

503194014

Unavailable

1140

Axle

503194357

Unavailable

1150

Washer

503194400

$0.54

1160

Bolt M6

503194014

Unavailable

1165

Hex. Flange Elastic Nut M6

233261466

$1.66
