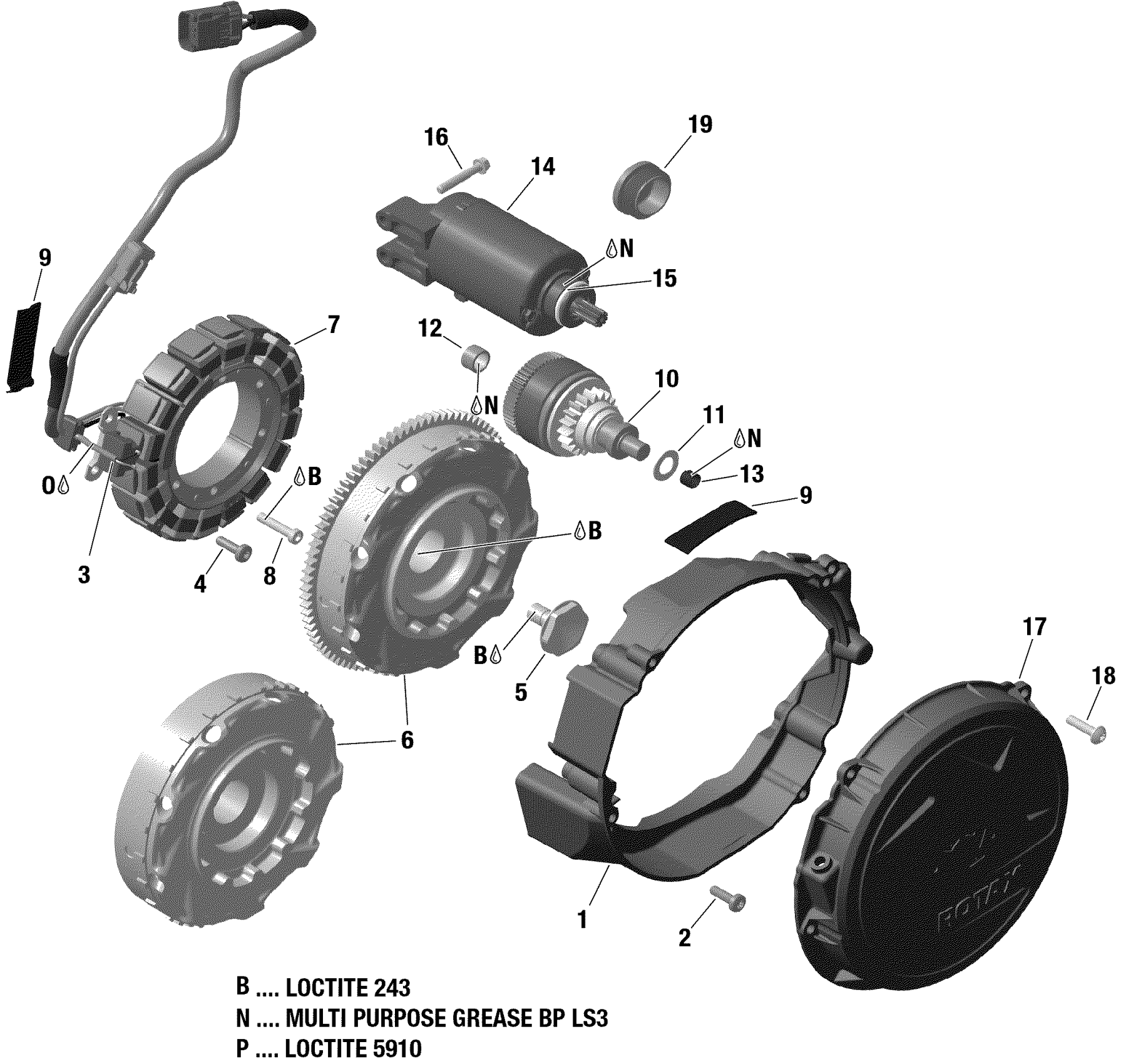

Ski-Doo BACKCOUNTRY 600R E-TEC, 2019 Magneto And Electric Starter Diagram

#

Description
Price

1

Ignition Housing

420911854

$24.49

2

Torx Flange Screw M6 X 20

420441386

$2.11

3

Pickup Ass'y

420966842

$109.99

4

Torx Flange Screw M6 X 20

420441386

$2.11

5

Collar Hex Screw M12 X 25

420840851

$20.99

6

Magneto Flywheel

420866048

$676.99

6

Magneto Flywheel

420866046

$569.49

7

Stator Ass'y 55V/1300W

420864427

$478.99

8

Allen Screw M6 X 30

420540001

$3.29

9

Adhesive Pad, 1.6 mm X 20 mm X 60 mm

420201360

$2.99

10

E-Starter Drive Ass'y

420888044

$319.49

11

Thrust Washer

420827261

$7.51

12

Needle Bushing

420232482

$20.99

13

Spring

420938204

$7.65

14>15

Electric Starter | Includes no. 14-15

420893820

$319.49

16

O-Ring

420250141

$19.49

17

Torx Flange Screw M6 X 35

420440274

$1.01

18

Plastite Screw

420940431

$7.65

19

Plug

420201930

$4.55
