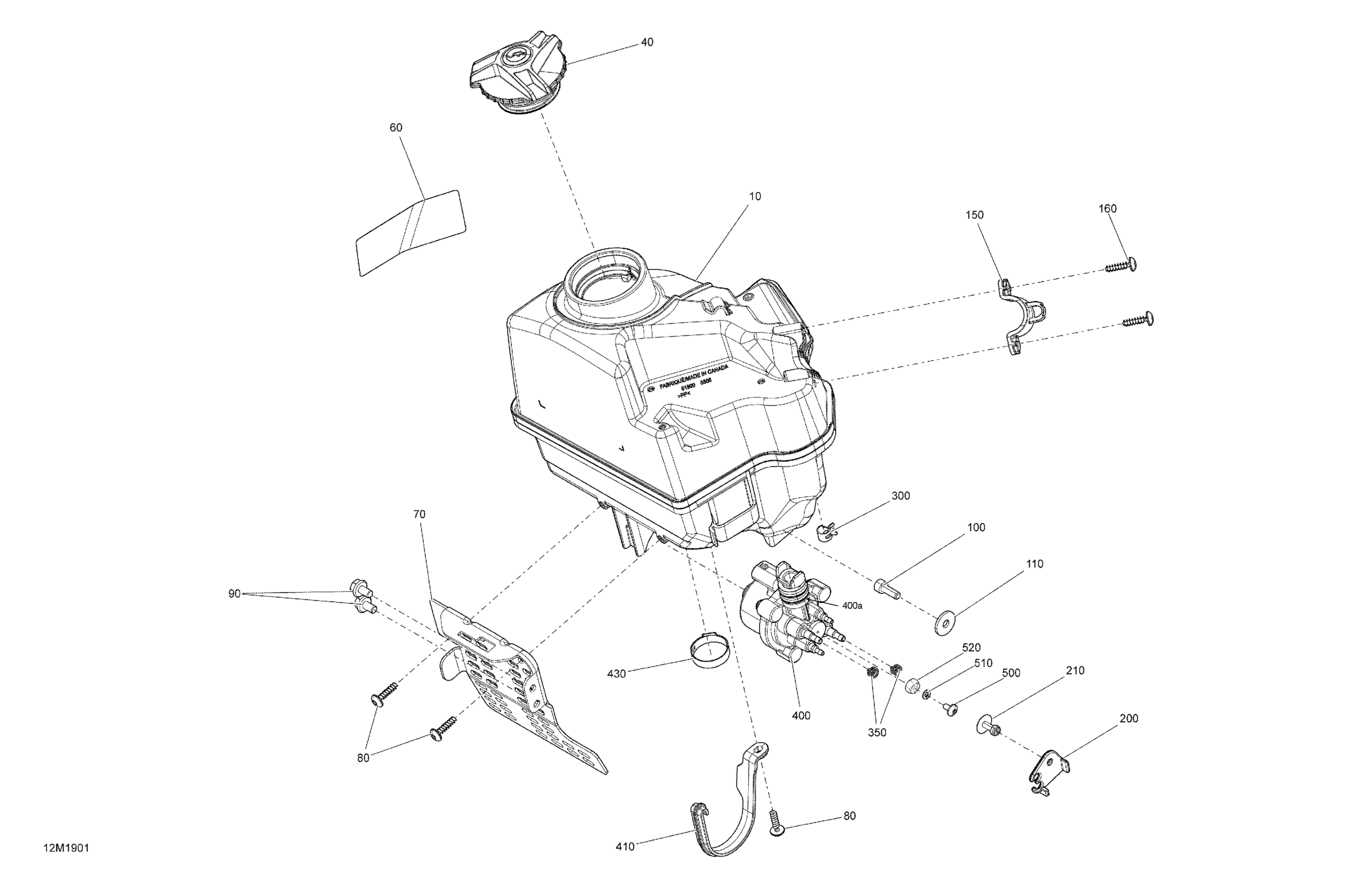

Ski-Doo BACKCOUNTRY 600R E-TEC, 2019 Oil Diagram

#

Description
Price

10

Oil Tank

519000346

$84.30

40

Cap Ass'y

519000358

$17.88

60

Oil Warning Decal

516008439

$9.67

70

Support

519000350

$12.51

80

Torx Screw Truss Head K50X20 T20

250000760

$2.00

90

Flange Screw M6 X 10, Scotch Grip

207561044

$6.76

100

Socket Screw M6 X 16, Scotch Grip

205561644

$0.96

110

Flat Washer

224061201

$1.27

150

Clamp

519000320

$4.51

160

Torx Screw Truss Head K50X20 T20

250000760

$2.00

200

Hose Protector

519000322

$2.07

210

Pop Rivet 3/16" | DS 650 X

293150104

$0.99

300

Spring Clamp

414420700

$0.66

350

Hose Clamp

293650252

$4.25

400>400a

Hydraulic Pump | Includes 400 to 400a

519000375

$212.66

400a

O-Ring

415130335

$14.90

410

Bracket

519000318

$3.10

420

Torx Screw Truss Head K50X20 T20

250000760

$2.00

430

Crimp Clamp

293650099

$4.07

500

Screw-Torx Button Head M4 X 8

250000741

$1.06

510

Lock Washer 4 mm

234141601

$1.06

520

Elastic Stop Nut M4

232541484

$0.70
