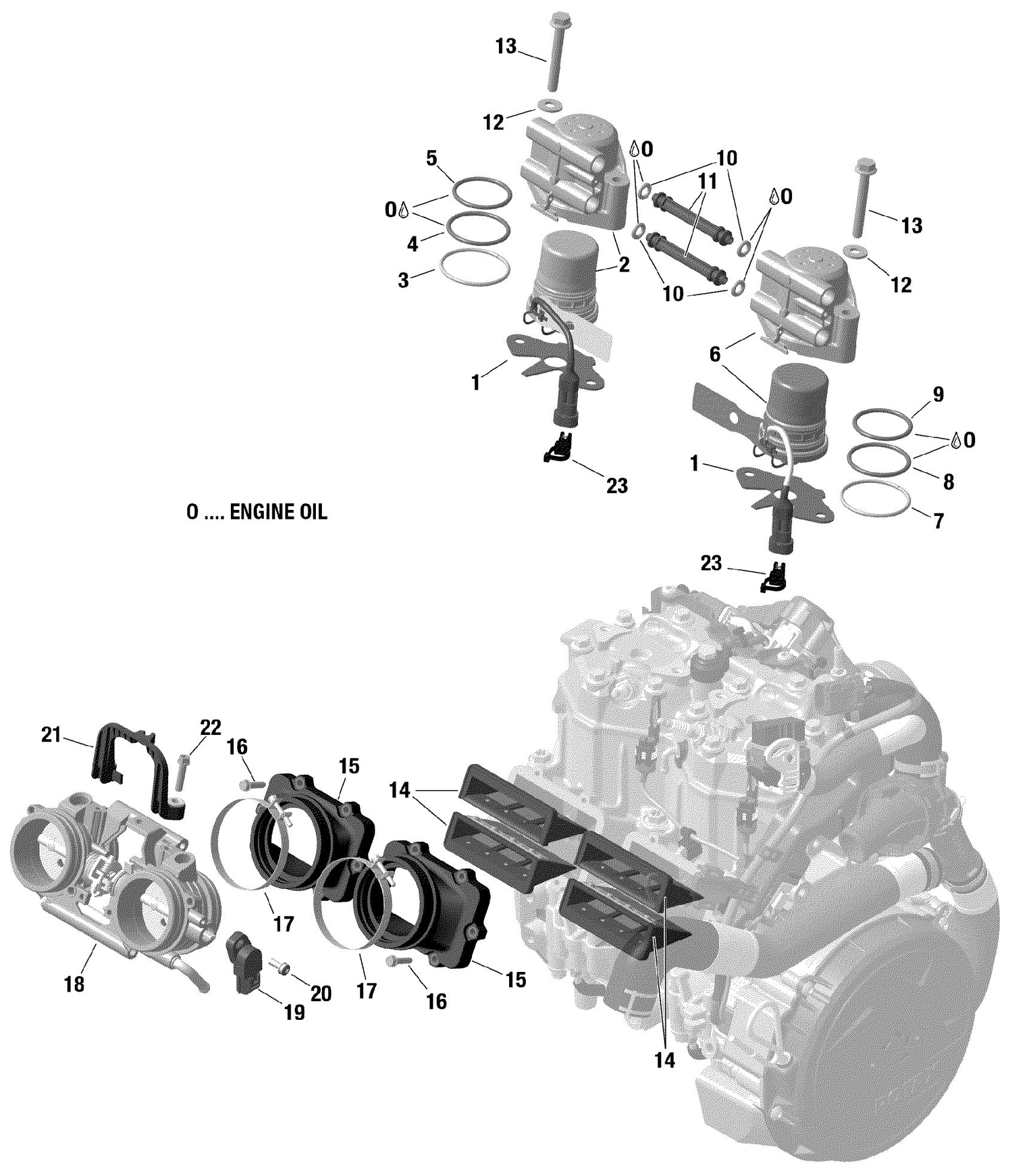

Ski-Doo BACKCOUNTRY 600R E-TEC, 2019 EFI Diagram

#

Description
Price

1

Gasket

420430056

$7.57

1

Gasket

420430056

$7.57

2>5

Injector PTO | Includes 2 to 5

420874863

$498.48

2>5

Injector PTO | Includes 2 to 5

420874863

$498.48

3

Crush Ring

415129497

$7.16

3

Crush Ring

415129497

$7.16

4

O-Ring

415129498

$12.13

4

O-Ring

415129498

$12.13

5

O-Ring

415129499

$6.61

5

O-Ring

415129499

$6.61

6>9

Injector MAG | Includes 6 to 9

420874864

$498.48

6>9

Injector MAG | Includes 6 to 9

420874864

$498.48

7

Crush Ring

415129497

$7.16

7

Crush Ring

415129497

$7.16

8

O-Ring

415129498

$12.13

8

O-Ring

415129498

$12.13

9

O-Ring

415129499

$6.61

9

O-Ring

415129499

$6.61

10

O-Ring

420430775

$3.88

10

O-Ring

420430775

$3.88

11

Tube

420874190

$5.06

11

Tube

420874190

$5.06

12

Washer

420901550

$2.00

12

Washer

420901550

$2.00

13

Screw M8X60

420840096

$2.00

13

Screw M8X60

420840096

$2.00

14

Reed Valve Ass'y

420924798

$38.03

14

Reed Valve Ass'y

420924798

$38.03

15

Intake Socket

420867390

$105.94

15

Intake Socket

420867390

$105.94

16

Tapping Screw M5 X 22

420841550

$1.63

16

Tapping Screw M5 X 22

420841550

$1.63

17

Clamp

420251209

$8.09

17

Clamp

420251209

$8.09

18

Throttle Body Socket This part replaces 420893808.

420685752

$1,191.76

18

Throttle Body Socket This part replaces 420893808.

420685752

$1,191.76

19

Throttle Valve Position Sensor | Includes no. 2-3

420866680

$64.90

19

Throttle Valve Position Sensor | Includes no. 2-3

420866680

$64.90

20

Not Available As Spare Part - Friction Washer

Unavailable

20

Not Available As Spare Part - Friction Washer

Unavailable

21

Cable Guide

420874163

$17.88

21

Cable Guide

420874163

$17.88

22

Torx Flange Screw M6 X 25

420440234

$2.91

22

Torx Flange Screw M6 X 25

420440234

$2.91

23

Tie Rap

420951785

$4.15

23

Tie Rap

420951785

$4.15
