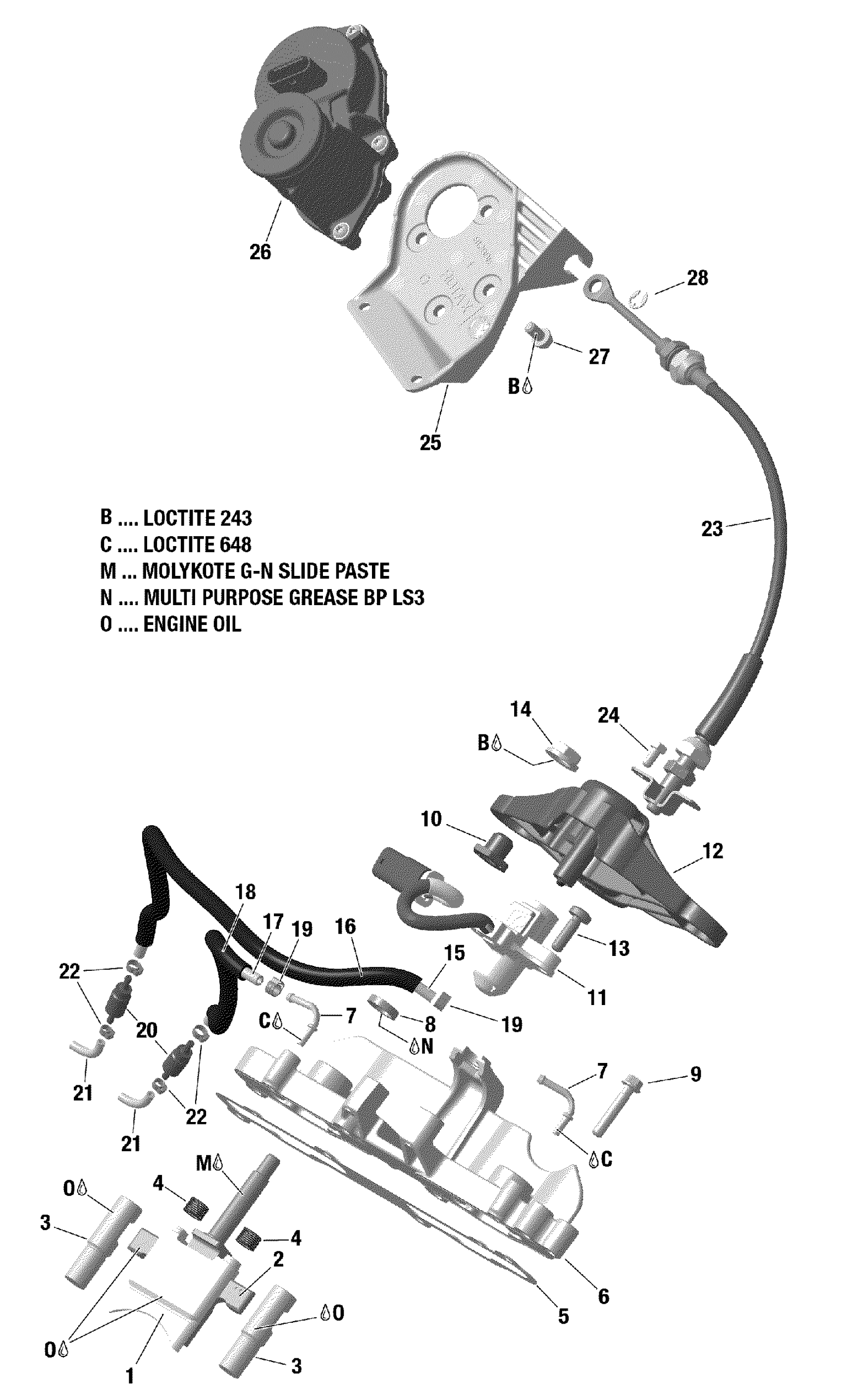

Ski-Doo BACKCOUNTRY 600R E-TEC, 2019 Rave Valve Diagram

#

Description
Price

1

Exhaust Valve Upper

420954080

$67.99

2

Exhaust Valve Lower

420954085

$94.49

3

Exhaust Valve

420954070

$20.99

4

Spring

420238558

$5.39

5

Gasket Valve Rod Housing | Included in gasket kit

420631001

$13.16

6>7

Valve Rod Housing

420954066

$94.49

7

Fitting 90D

420924053

$10.33

8

Oil Seal | Included in gasket kit

420950732

$9.27

9

Torx Flange Screw M6 X 30

420440647

$2.00

10

Collar Nut M8

420942331

$4.44

11>12

Valve Bar With Position Sensor | Includes no. 12-13

420855295

$114.99

11

Not Available As Spare Part - Friction Washer

Unavailable

12

Not Available As Spare Part - Friction Washer

Unavailable

13

Torx Flange Screw M6 X 20

420441386

$2.11

14

Nut M12 X 1.5

420942190

$14.22

15

Oil Line 585 mm This part replaces 420201921.

420201928

$5.39

16

Tube 390MM

420460042

$8.57

17

Oil Line 585 mm This part replaces 420201921.

420201928

$5.39

18

Tube 465MM

420460058

$8.57

19

Clamp 5.8-7.0MM

420853138

$2.11

20

Check Valve Ass’y

420956515

$8.59

21

Oil Line 585 mm This part replaces 420201921.

420201928

$5.39

22

Clamp

420851508

$14.22

23

Bowden Cable Ass'y

420997033

$121.49

24

Not Available As Spare Part - Friction Washer

Unavailable

25

Mounting Bracket

420912008

$19.49

26

Servo Motor Ass'y

420889432

$329.99

27

Hex. Flange Screw M6 X 12

420440149

$2.11

28

Retaining Ring

420945710

$0.50
