Description

Price

1>12

Crankshaft Ass'y | Includes no. 1-7; 9-12

420686680

$1.00

2

Ball Bearing

420832175

Unavailable

3

Ball Bearing 6207 | With drive pin

420832575

$52.99

4

Oil Seal

420831955

$27.49

5

Ball Bearing | With drive pin

420832602

$104.99

6

Washer

420926190

$11.63

7

Ball Bearing | With drive pin

420832702

$89.99

8

Oil Seal | Included in gasket kit

420931284

$23.49

9

Ball Bearing 6207 | With drive pin

420832575

$52.99

10

Oil Seal

420931455

$35.99

11

CENTRAL GEAR - Call your local BRP dealership

420834565

Unavailable

12

Woodruff Key

420246015

$3.17

13

Needle Bearing

420832445

$27.49

14>15

Piston Ass'y | Includes no. 14-15 With ring

420893895

$228.99

15

Semi Trapez Ring

420815470

$68.99

16

Piston Pin

420916412

$30.99

17

Piston Circlip

420845106

$3.93

18

Not Available As Spare Part - Friction Washer

Unavailable

19

Not Available As Spare Part - Friction Washer

Unavailable

20

Rod Repair Kit, PTO Side

420890958

$313.99

20

Rod Repair Kit, MAG Side

420890959

$313.99

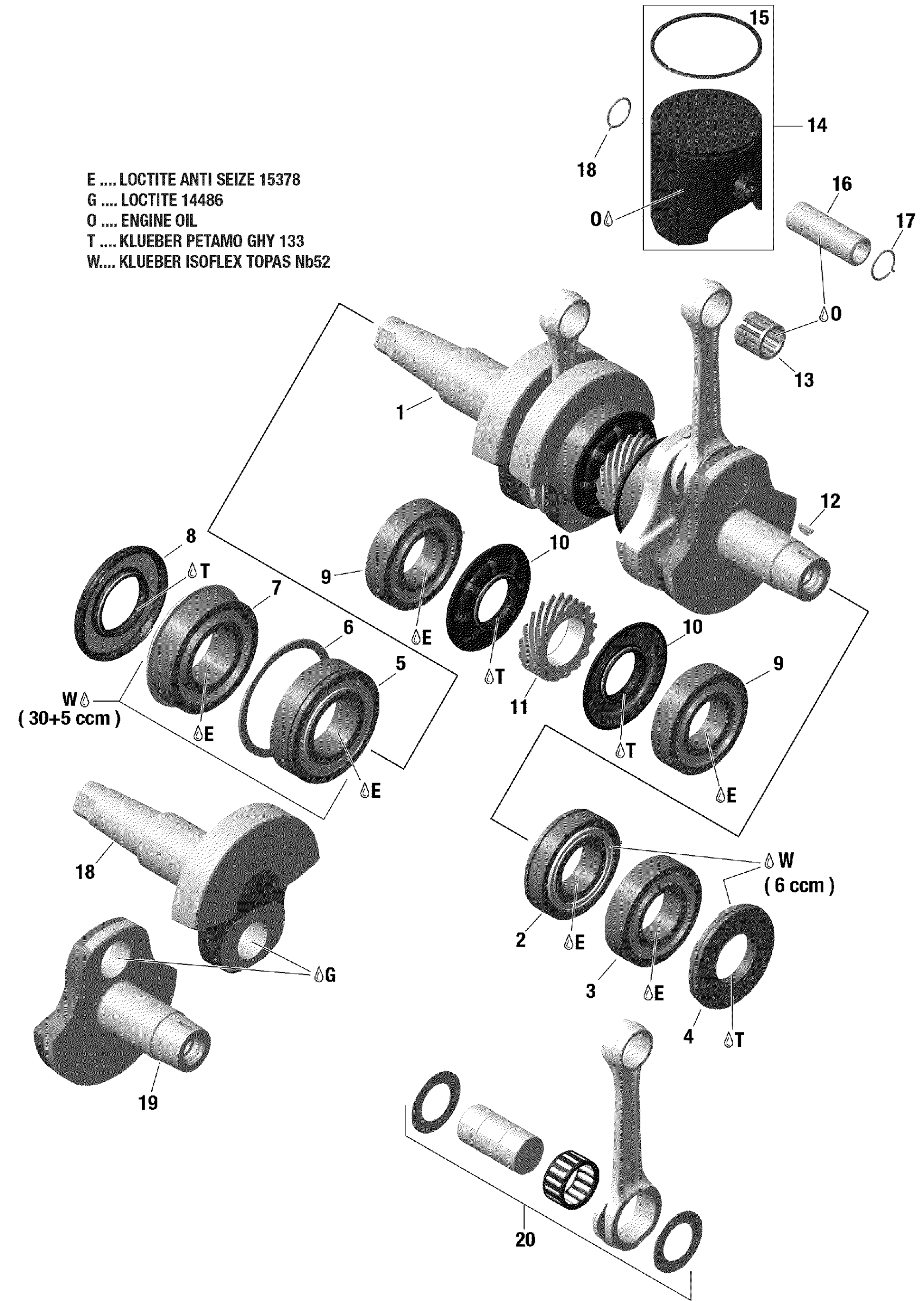

Ski-Doo BACKCOUNTRY 600R E-TEC, 2019 Crankshaft And Pistons Diagram

Crankshaft Ass'y | Includes no. 1-7; 9-12

Ball Bearing

Ball Bearing 6207 | With drive pin

Oil Seal

Ball Bearing | With drive pin

Washer

Ball Bearing | With drive pin

Oil Seal | Included in gasket kit

Ball Bearing 6207 | With drive pin

Oil Seal

CENTRAL GEAR - Call your local BRP dealership

Woodruff Key

Needle Bearing

Piston Ass'y | Includes no. 14-15 With ring

Semi Trapez Ring

Piston Pin

Piston Circlip

Not Available As Spare Part - Friction Washer

Not Available As Spare Part - Friction Washer

Rod Repair Kit, PTO Side

Rod Repair Kit, MAG Side
