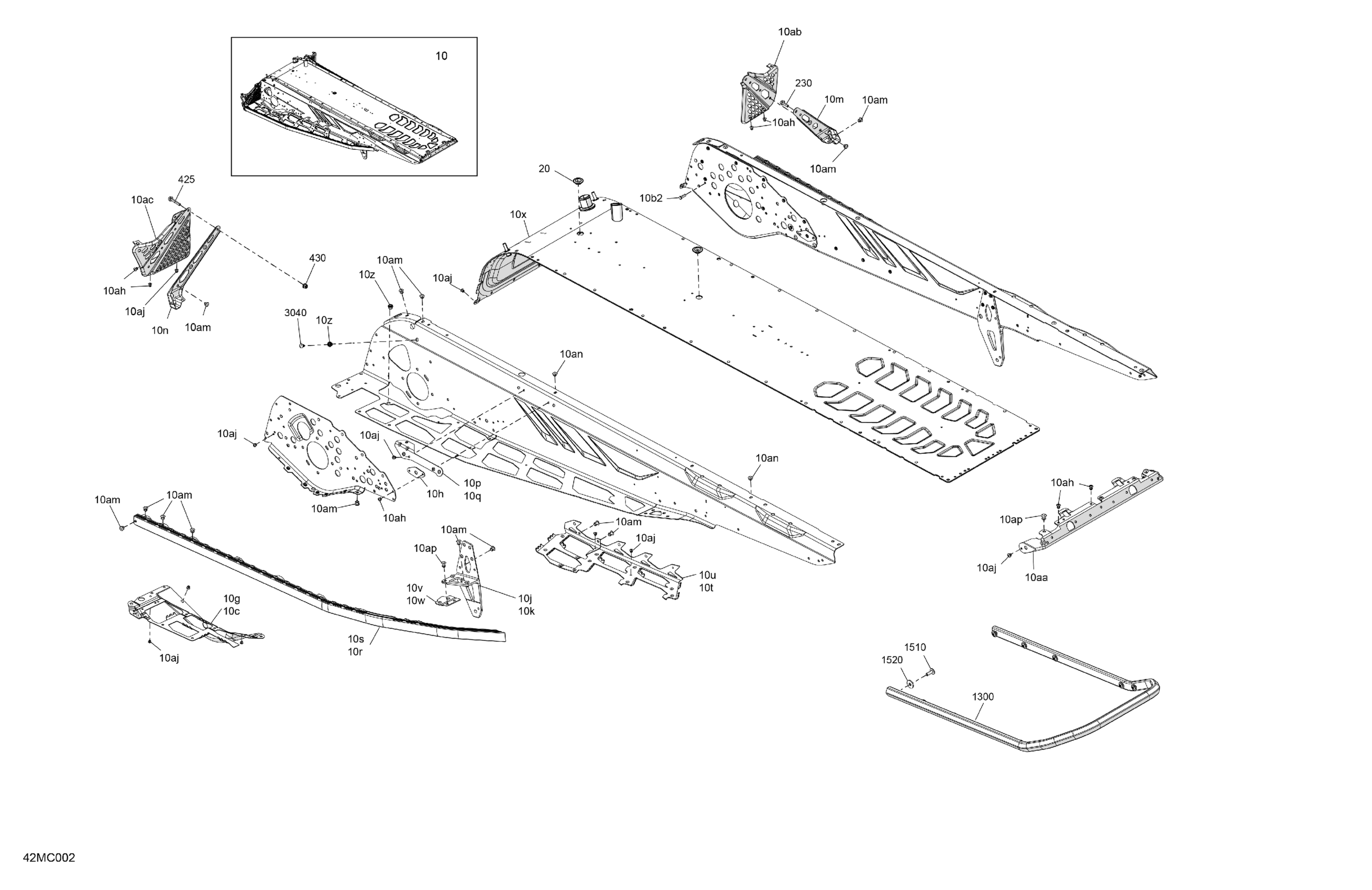

Ski-Doo 001 - BACKCOUNTRY 600 EFI - SPORT - (UBPD) - North America, 2023 06- Frame - System - Rear Section Diagram

Description

Price

Full Moon, Chassis Tunnel Module 146" | Includes 10 to 10ap

518334200

Unavailable

10b2

Clinch Stud M6 X 20

250300027

$2.09

10c

RH Footrest Reinforcement

518332578

$88.99

10g

LH Footrest Reinforcement

518332577

$88.99

10h

Reinforcement Plate

518326647

$4.69

10j

LH Suspension Bracket

518328467

$45.99

10k

RH Rear Suspension Support

518334391

$94.99

10m

Stirrup Reinforcement

518334507

$21.99

10n

Deep Black, LH Chassis Reinforcement

518332924

$21.99

10p

LH Under Chassis Reinforcement

518331744

$18.99

10q

RH Under Chassis Reinforcement

518331745

$19.99

10r

RH Roller

518328451

$194.99

10s

LH Roller

518328452

$194.99

10t

RH Tunnel Liner

518329646

$35.99

10u

LH Tunnel Liner

518329647

$35.99

10v

LH Reinforcement Plate

518329088

$3.39

10w

RH Reinforcement Plate

518329089

$4.59

10x

Radiator Tunnel 146

518334489

$739.99

10z

Clinch Nut M6 Hexsert

605636003

$4.23

10aa

Rear Cap

518328990

$22.49

10ab

RH Footrest

518333006

$40.99

10ac

LH Footrest

518333007

$40.99

10ah

Avex Rivet

390909100

$0.30

10aj

Avex Rivet

390909200

$0.30

10am

Rivet Ornit 6,5 X 12.5

293150265

$2.40

10an

Ornit Rivet 6,5 X 14.5

293150266

$2.40

10ap

Rivet Ornit 6,5 X 16.5

293150267

$2.40

Black, Plug

293730052

$9.19

230

Hex. Flange Screw M6 X 20

207562056

$2.11

425

Hex. Flange Screw M6 X 20

207562056

$2.11

430

Elastic Flange Nut M6 X 1.0

233261416

$2.11

1300

Rear Bumper 146

518329553

$169.49

1510

Torx Screw M6 X 1.0 X 18, Scotch Grip

250000779

$2.11

1520

Flat Washer

224061201

$1.37

3040

Dart

293730079

$2.09
