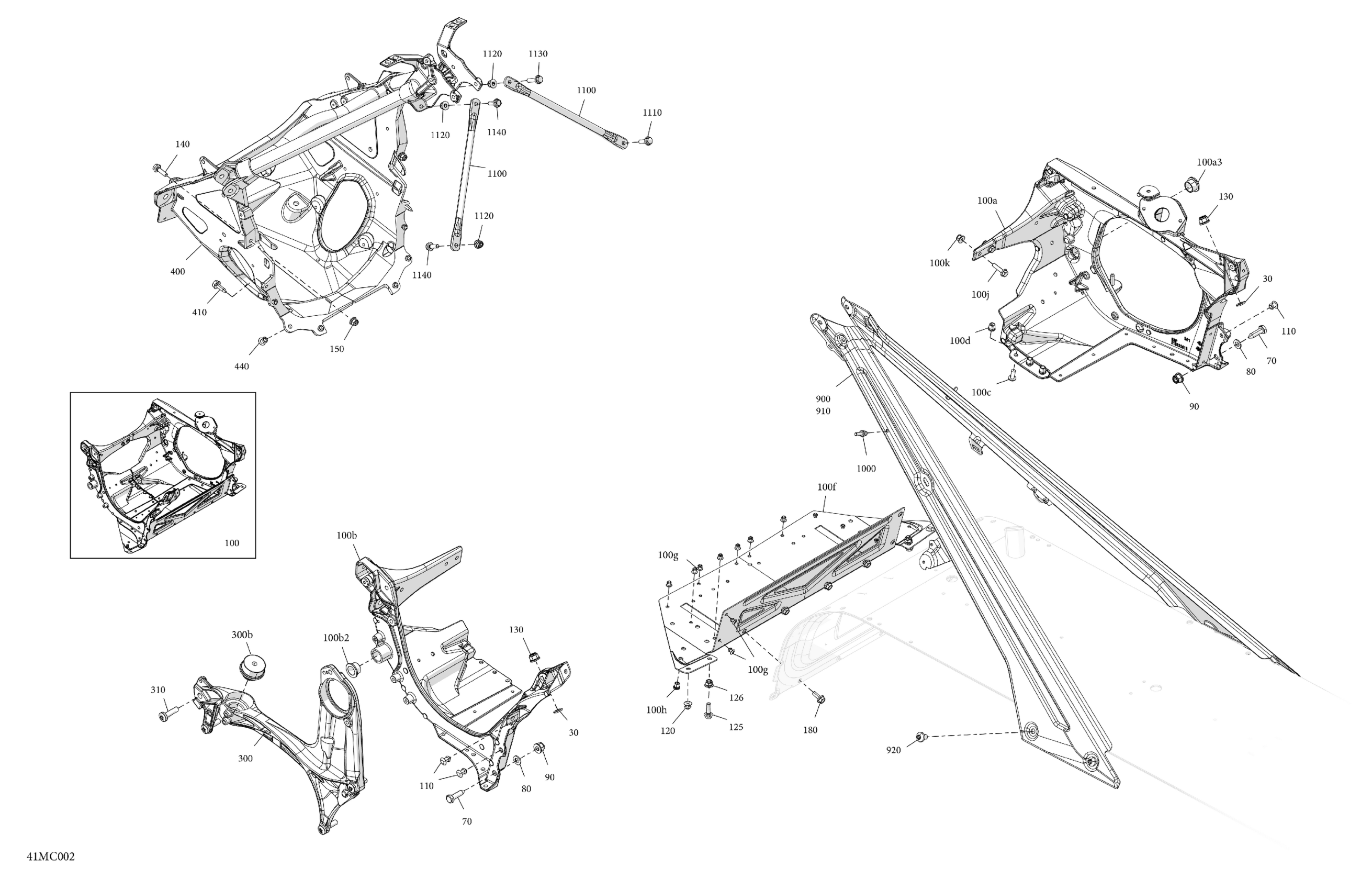

Ski-Doo 001 - BACKCOUNTRY 600 EFI - SPORT - (UBPD) - North America, 2023 06- Frame - System - Front Section Diagram

Conical Spring Washer M8

250200146

$1.01

Hex Screw M8 X 30

250000942

$1.15

Flat Washer 8 mm

234081410

$0.83

Hex. Flange Elastic Nut M8

233281414

$1.47

Engine Chassis Module Ass'y | Includes 100 to 100k

518334690

$429.99

RH Side Member Ass'y | Includes 100a to 100a3

518334521

$224.99

Leg Bushing

505072690

$12.49

LH Side Member Ass'y | Includes 100b to 100b2

518334599

$204.99

Leg Bushing

505072690

$12.49

Rivet Magna-Grip 6,4 X 50,8

293150148

$0.70

Collar Huck Magna-Grip 6.4

293150149

$0.48

Bottom Plate

518332716

$36.99

Avex Rivet

390909100

$0.30

Insert M5 X 0.8

293450268

$2.09

Hex. Flange Screw M6 X 20

207662046

$2.11

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

Rivet Ornit 6,5 X 16.5

293150267

$2.40

Rivet Ornit 6,5 X 12.5

293150265

$2.40

Hex. Flange Screw M6 X 20

207662046

$2.11

Elastic Flange Nut M6 X 1.0

233261416

$2.11

Hex. Flange Elastic Nut M8

233281414

$1.47

Hex. Flange Screw M6 X 20

207662046

$2.11

Elastic Flange Nut M6 X 1.0

233261416

$2.11

Hex. Flange Screw M6 X 16

207661646

$1.36

LH Side Member Ass'y | Includes 300 to 300b

518333783

$294.99

Vibration Damper

512061516

$61.99

Screw-Pan HD.Torx M8X30

250001060

$0.82

Chassis Suspension Module

518334459

$709.99

Screw-Forming Hex.HD.FL. M6 X 16

250001051

$1.39

Rivet Ornit 6,5 X 16.5

293150267

$2.40

Deep Black, LH Rear Diagonal Cross Member Ass'y

518333956

Unavailable

Deep Black, RH Rear Diagonal Cross Member

518336930

$119.99

Pan Head Torx Screw M8 X 12

250000887

$1.90

Protruding Stud M5 x 12

250300651

$2.09

Upper Colomn Support

518329974

$22.49

Hex. Flange Screw M6 X 16, Scotch Grip

207561646

$1.90

Elastic Flange Nut M6 X 1.0

233261416

$2.11

Hex. Flange Screw M6 X 25

207662556

$4.44

Hex. Flange Screw M6 X 20

207662046

$2.11
