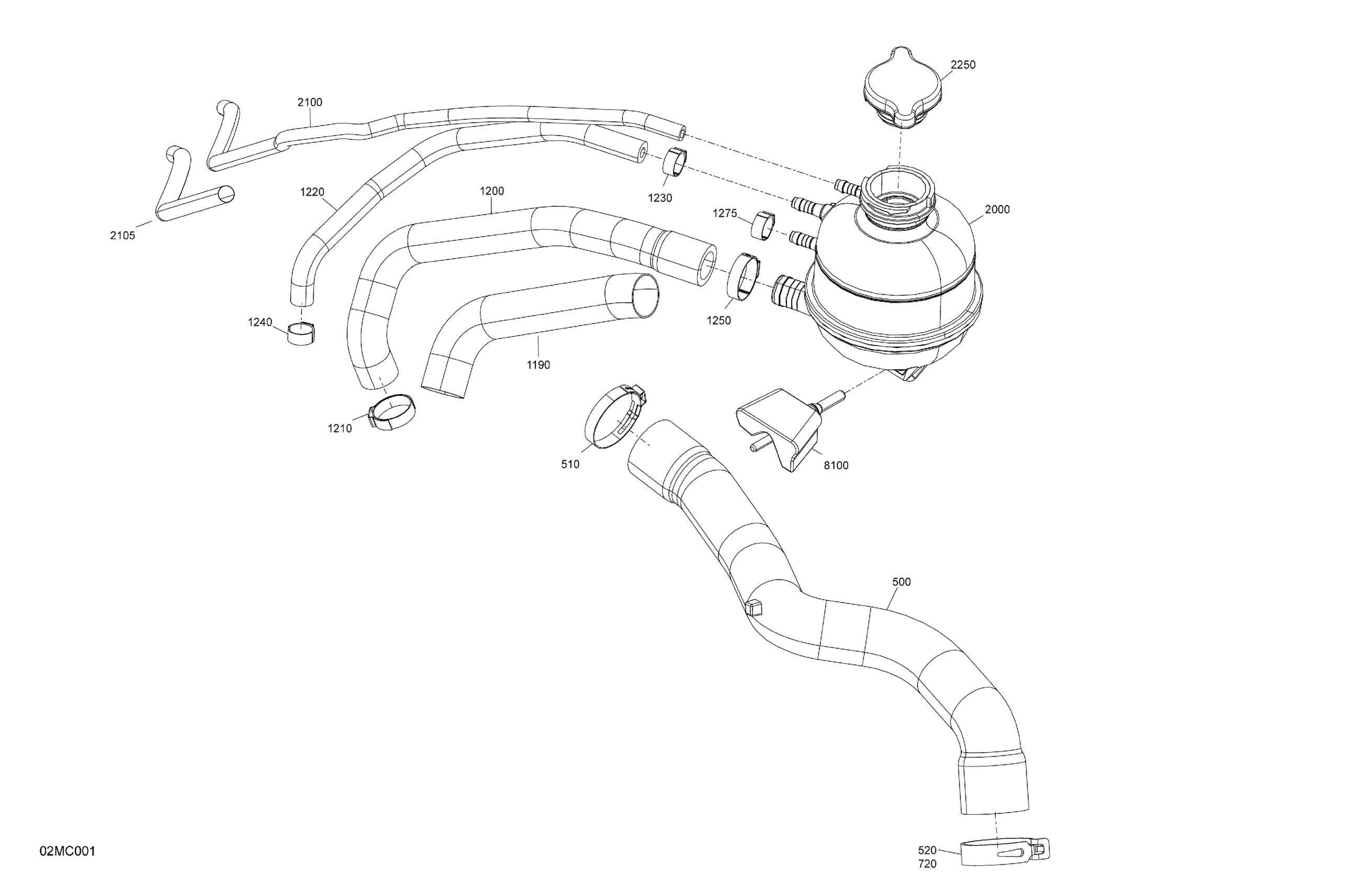

Ski-Doo 001 - BACKCOUNTRY 600 EFI - SPORT - (UBPD) - North America, 2023 02- Engine - Cooling Diagram

Description

Price

500

Thermostat Hose | Includes 500 to 500a

509001413

$24.99

510

Oetiker Gear Clamp

293650254

$3.79

520

Aba Gear Clamp, 26-38 MM

509000443

$12.72

720

Aba Gear Clamp, 26-38 MM

509000443

$12.72

1190

Protector Tube 32 Mm 1000Mm Long

219704421

$26.99

1200

Hose

509001141

$23.99

1210

Oeticker Gear Clamp, 25.6-706R

509000442

$5.19

1220

Cooling Hose

509000968

$11.49

1230

Oetiker Clamp

293650046

$2.89

1240

Oetiker Clamp

293650046

$2.89

1250

Oetiker Clamp

509001041

$2.09

1275

Oetiker Clamp

293650046

$2.89

2000

Coolant Tank

861805522

$139.99

2100

Hose 6 Mm 15000Mm Long

219704360

$132.49

2105

Protector Tube | Not shown

503195447

$13.49

2250

Radiator Pressure Cap

509000180

$20.49

8100

Rubber Support

509001171

$11.58
