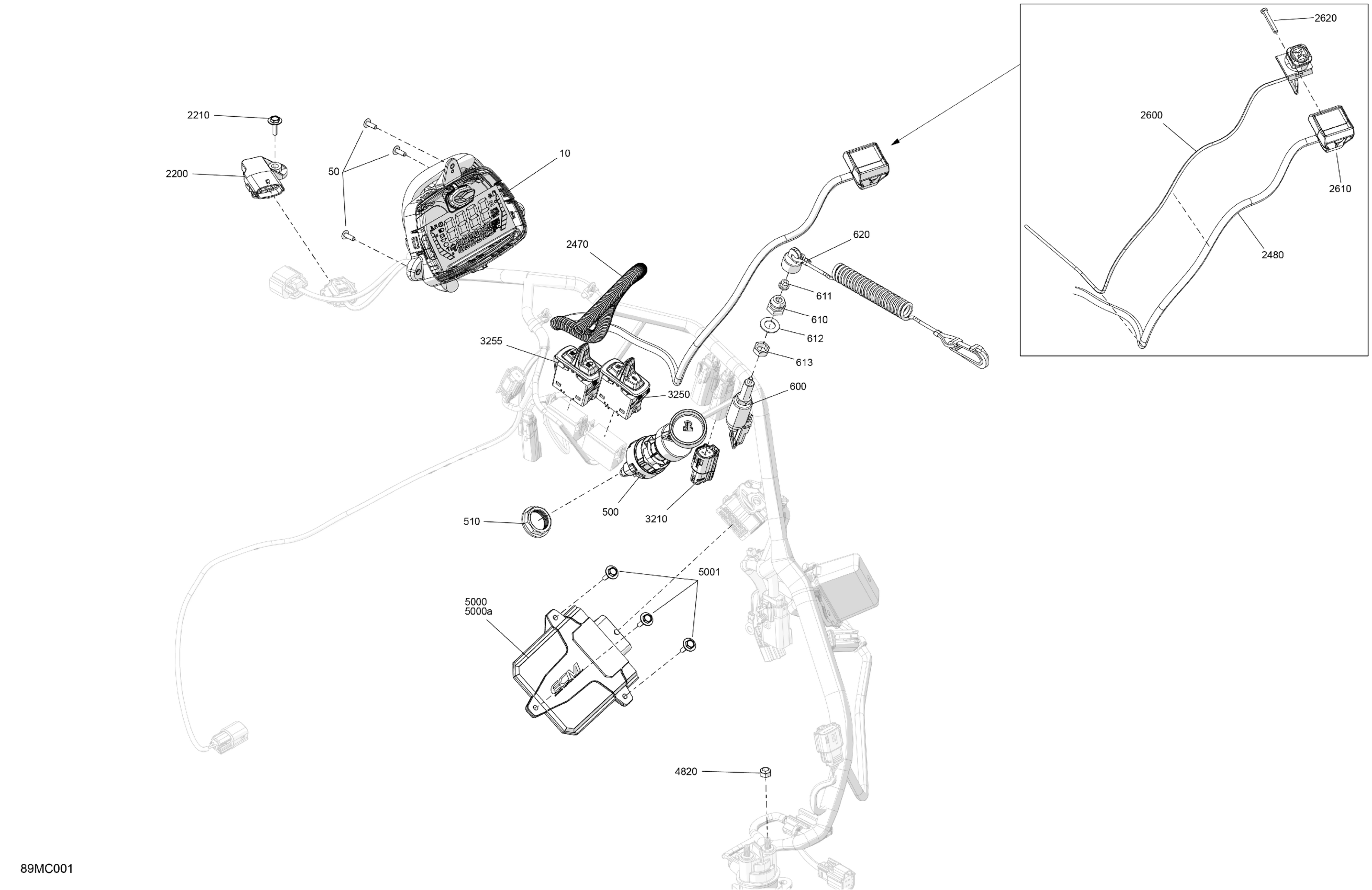

Ski-Doo 001 - BACKCOUNTRY 600 EFI - SPORT - (UBPA-UBPB) - North America, 2023 08- Electric - Upper Section Diagram

Description

Price

1 Button Multifunction Compact Mono Gauge

515179303

$529.99

2 Button Multifunction Gauge Full Size Color

515178226

$599.99

Torx Truss PT K40 x 12

250001131

$2.11

500

Ignition Switch | Includes 210 to 210b

710007324

$64.49

505

Blank Ignition Key

715900934

$19.99

510

Specialized Nut

710007923

$2.11

600

Brake Switch

515175653

$19.49

610

Switch Nut

515145900

$12.12

611

Plunger Cap

570151100

$9.85

612

Flat Washer

250200084

$3.38

613

RH Threaded Hex. Jam Nut M10

732610010

$0.74

620

Cap Ass'y

515178283

$38.99

2200

Pressure And Temperature Sensor

707000995

$88.99

2210

Screw M4 X 16

250000725

$3.49

2470

Sheath Corrugated 9 MM ID

515178885

$1.47

2480

Braided Sleeve

415130141

$55.99

2600

Emergency Stop Switch

515177931

$76.49

2610

Emergency Stop Switch Support

515177310

$9.19

2620

Torx Screw #8-18

250000263

$1.04

3210

4 Circuits Female Housing

515178177

$12.18

3250

Switch Rocker Hand Warmer

515178462

$20.49

3255

Switch Rocker Headlignt

515178463

$20.49

4820

Elastic Stop Nut M6

232561434

$1.99

5000

ECM Module

515179453

$299.99

5000a

Capacitor

515177272

$90.99

5001

Screw M4 X 16

250000725

$3.49
