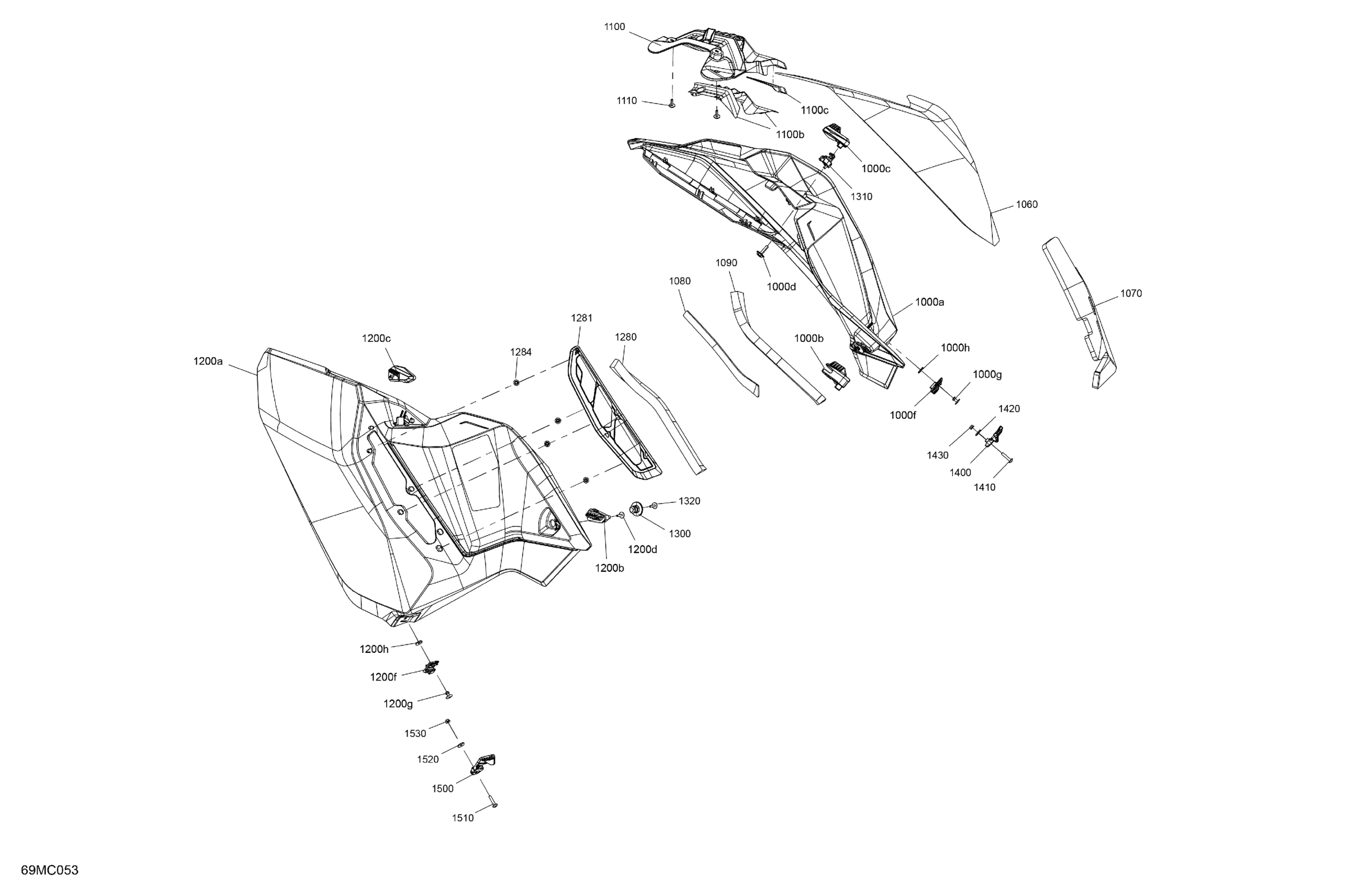

Ski-Doo BACKCOUNTRY 600 EFI - SPORT - (UBPA-UBPB) - 2023 Body - Side Panels Diagram

Description

Price

1000a

Deep Black, RH Panel

517306875

$203.05

1000b

RH Rear Latch

517305773

$14.22

1000c

RH Front Latch

517305979

$13.88

1000d

Screw M4 X 16

250000725

$2.87

1000f

RH Hook

517306311

$10.82

1000g

Pop Rivet 3/16" | DS 650 X

293150104

$1.37

1000h

Washer

517124300

$0.16

1060

RH Central Panel Foam

517306188

$28.43

1070

RH Rear Panel Foam

517306586

$10.46

1080

Rubber Sheet

517306262

$26.89

1090

RH Rear Panel Foam

517306480

$8.55

1100

RH Front Grille Ass'y | Includes 1100 to 1100c

517308289

$29.20

1100b

Foil Kit

517308787

$4.15

1100c

Heat Shield

517307667

$2.05

1110

Screw M4 X 16

250000725

$2.87

1200a

Deep Black, LH Panel

517307324

$226.12

1200b

LH Rear Latch

517305774

$14.22

1200c

LH Front Latch

517305980

$14.22

1200d

Screw M4 X 16

250000725

$2.87

1200f

LH Hook

517306312

$10.82

1200g

Pop Rivet 3/16" | DS 650 X

293150104

$1.37

1200h

Washer

517124300

$0.16

1280

LH Rear Panel Foam

517306479

$8.55

1281

LH Grille

517306944

$15.17

1284

Push Nut

732610072

$1.72

1300

Rear Stud

517305985

$15.00

1310

Front Stud

517305988

$15.35

1320

Screw M4 X 16

250000725

$2.87

1400

RH Lower Latch

517306309

$16.12

1410

Torx Screw M5 X 25

250000762

$1.74

1420

Washer | DS 650 X

391301600

$0.48

1430

Hex. Flange Nut M5

233151414

$0.46

1500

LH Lower Latch

517306310

$16.12

1510

Torx Screw M5 X 25

250000762

$1.74

1520

Washer | DS 650 X

391301600

$0.48

1530

Hex. Flange Nut M5

233151414

$0.46
