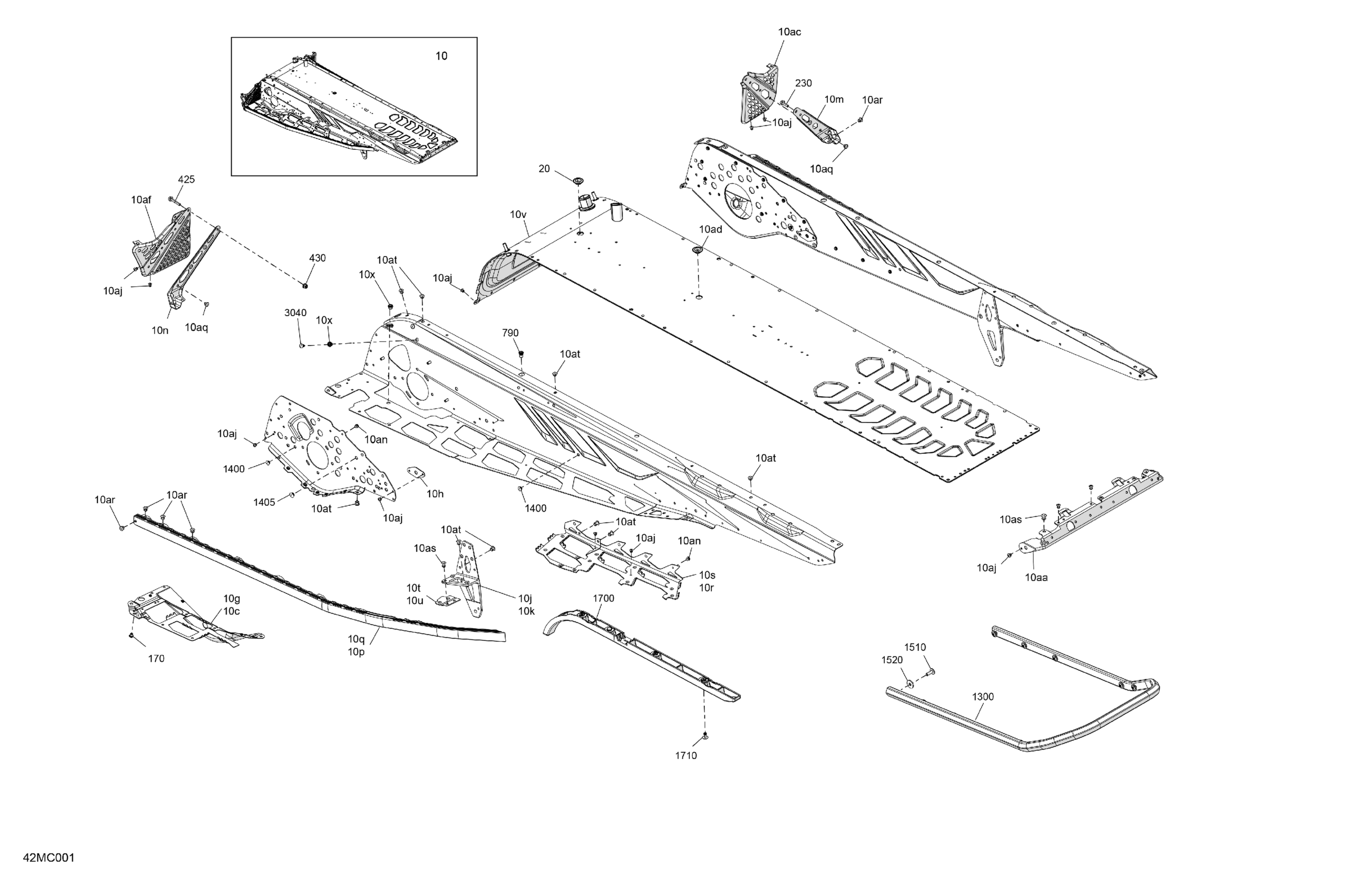

Ski-Doo BACKCOUNTRY 600 EFI - SPORT - (UBPA-UBPB) - 2023 Frame - System - Rear Section Diagram

Description

Price

Chassis Tunnel Module 146 | Includes 10 to 10a38

415130850

$3,069.20

10c

RH Footrest Reinforcement

518332578

$81.51

10g

LH Footrest Reinforcement

518332577

$81.51

10h

Reinforcement Plate

518326647

$4.34

10j

LH Rear Suspension Support

518334390

$43.05

10k

RH Rear Suspension Support

518334391

$38.43

10m

Stirrup Reinforcement

518334507

$18.43

10n

Deep Black, LH Chassis Reinforcement

518332924

$18.43

10p

RH Roller

518328451

$180.74

10q

LH Roller

518328452

$180.74

10r

RH Central Tunnel Reinforcement

518331564

$33.05

10s

LH Central Tunnel Reinforcement

518331565

$33.05

10t

LH Reinforcement Plate

518329088

$3.08

10u

RH Reinforcement Plate

518329089

$4.22

10v

Radiator Tunnel 146

518334489

$692.28

10x

Insert Half Hex Body M6 x 1.0

250100199

$2.54

10aa

Rear Cap

518328990

$20.74

10ac

RH Footrest

518333006

$38.43

10ad

Black, Plug

293730052

$6.37

10af

LH Footrest

518333007

$38.43

10aj

Rivet Avibulb 3/16

293150203

$0.29

10an

Henrob Rivet

293150245

$1.65

10aq

Rivet Ornit 6,5 X 10.5

293150264

$1.94

10ar

Rivet Ornit 6,5 X 12.5

293150265

$1.94

10as

Rivet Ornit 6,5 X 16.5

293150267

$1.94

10at

Ornit Rivet 6,5 X 14.5

293150266

$1.94

Black, Plug

293730052

$6.37

170

Insert M5 - 0.8

293450267

$4.22

230

Hex. Flange Screw M6 X 20

207562056

$1.74

425

Hex. Flange Screw M6 X 20

207562056

$1.74

430

Elastic Flange Nut M6 X 1.0

233261416

$1.74

790

Insert

293450278

$4.09

1300

Rear Bumper 146

518329553

$165.35

1400

Full Moon Dart 8 mm

293730041

$2.12

1405

Full Moon Dart 10 mm

293730059

$4.42

1510

Torx Screw M6 X 1.0 X 18, Scotch Grip

250000779

$1.74

1520

Flat Washer

224061201

$1.11

1700

Front Protector

518329982

$17.66

1710

Pop Rivet 3/16”

293150108

$1.23

3040

Dart

293730079

$1.92
