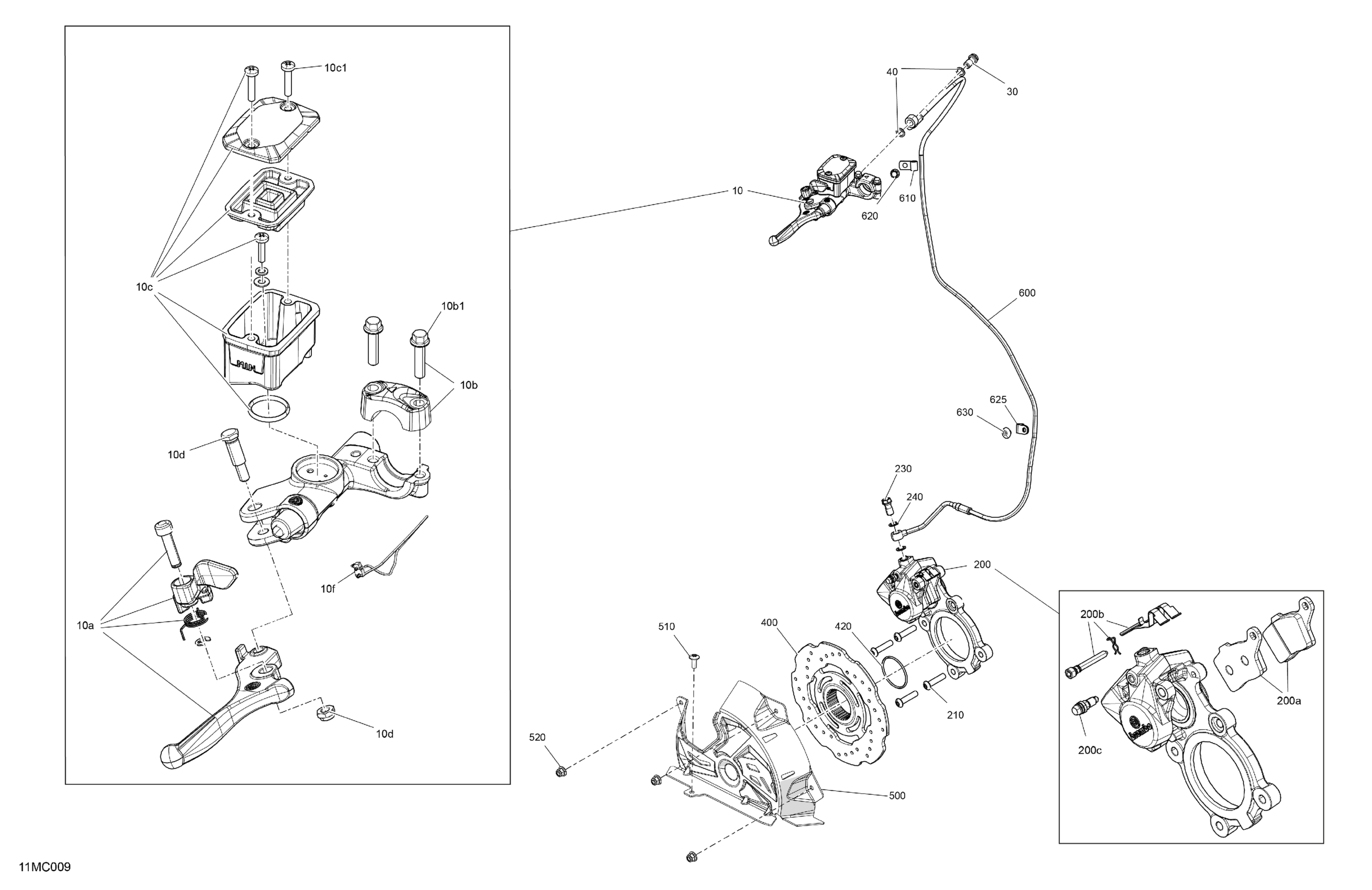

Ski-Doo 001 - BACKCOUNTRY 600 EFI - SPORT - (UBPA-UBPB) - North America, 2023 03- Mechanic - Brakes Diagram

Master Brake Cylinder | Includes 10 to 10f

507032728

$349.99

Lever With Parking Lock

507032476

$99.99

Clamp And Screw Kit

507032477

$23.99

Hex. Flange Screw M6 X 25

250000447

$2.11

Master Cylinder Reservoir Ass'y | Includes 10c to 10c1

507032478

$109.99

Screw M4 X 20

415129356

$2.22

Pin Ass'y

415030000

$19.99

Microswitch

507032601

$72.99

Banjo Bolt

507032551

$5.61

Washer

414920600

$1.90

Brake Caliper | Includes 200 to 200c

507032720

$349.49

Brake Pads Kit

507032473

$52.99

Brake Spring Kit

507032722

$37.99

Bleeder

507032475

$19.99

Hex. Button Head Screw M8 X 1.25 X 35

250000764

$2.00

Banjo Bolt

507032551

$5.61

Washer

414920600

$1.90

Disc

507032487

$185.49

O Ring

293300221

$1.68

Black, Disc Protector | Includes 500 to 500a

507032638

$45.99

Torx Head Screw M6 X 16

250000717

$2.11

Hex. Flange Elastic Nut M6

233261466

$2.00

Brake Hose

507032655

$62.49

Open Clamp

414108400

$3.17

Hex. Flange Screw M6 X 10

210261040

$1.48

Hose Clamp

293650257

$5.99

Blind Rivet 3/16

293150231

$0.32
