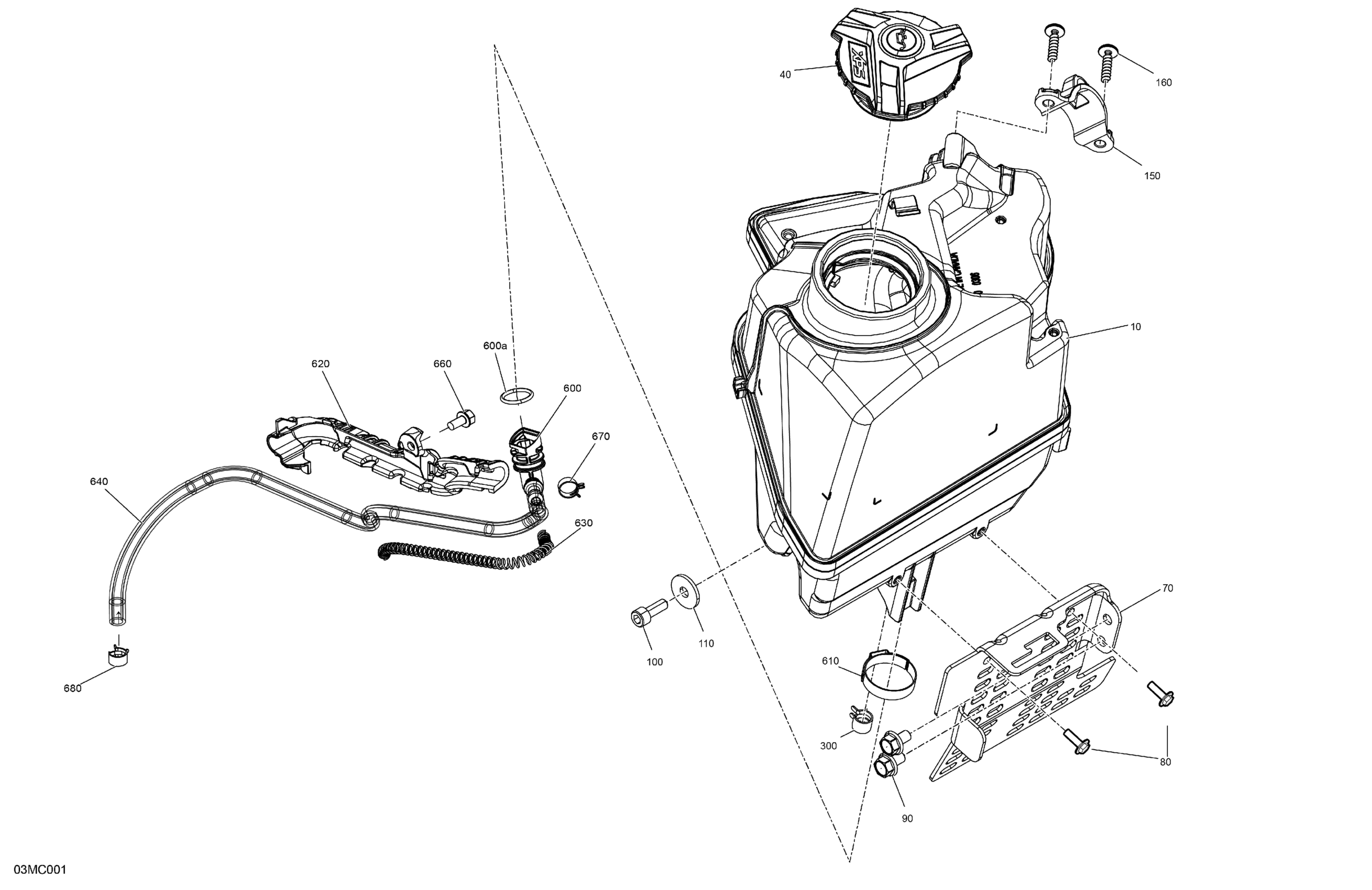

Ski-Doo 001 - BACKCOUNTRY 600 EFI - SPORT - (UBPA-UBPB) - North America, 2023 02- Engine - Oil Diagram

Description

Price

Oil Tank

519000369

$92.99

Cap Ass'y

519000358

$19.49

Oil Tank Support Kit

861805524

$14.24

Hex. Plastic Screw M4.8 X 16

243141630

$2.11

Flange Screw M6 X 10, Scotch Grip

207561044

$7.19

100

Socket Screw M6 X 16, Scotch Grip

205561644

$1.25

110

Flat Washer

224061201

$1.37

150

Clamp

519000320

$4.76

160

Torx Screw Truss Head K50X20 T20

250000760

$2.11

300

Spring Clamp

414420700

$0.72

600

Oil Filter | Includes 600 to 600a

519000347

$13.77

600a

Oil Filter

519000242

$13.77

610

Crimp Clamp

293650099

$4.29

620

Hose Guide

512061386

$2.43

630

Spring

519000352

$17.40

640

Polyurethane Hose, 8 Mm 3000Mm Long

219704412

$32.99

660

Hex. Flange Screw M6 X 12

210261250

$1.90

670

Spring Clamp

414415200

$0.88

680

Spring Clamp

414420700

$0.72
