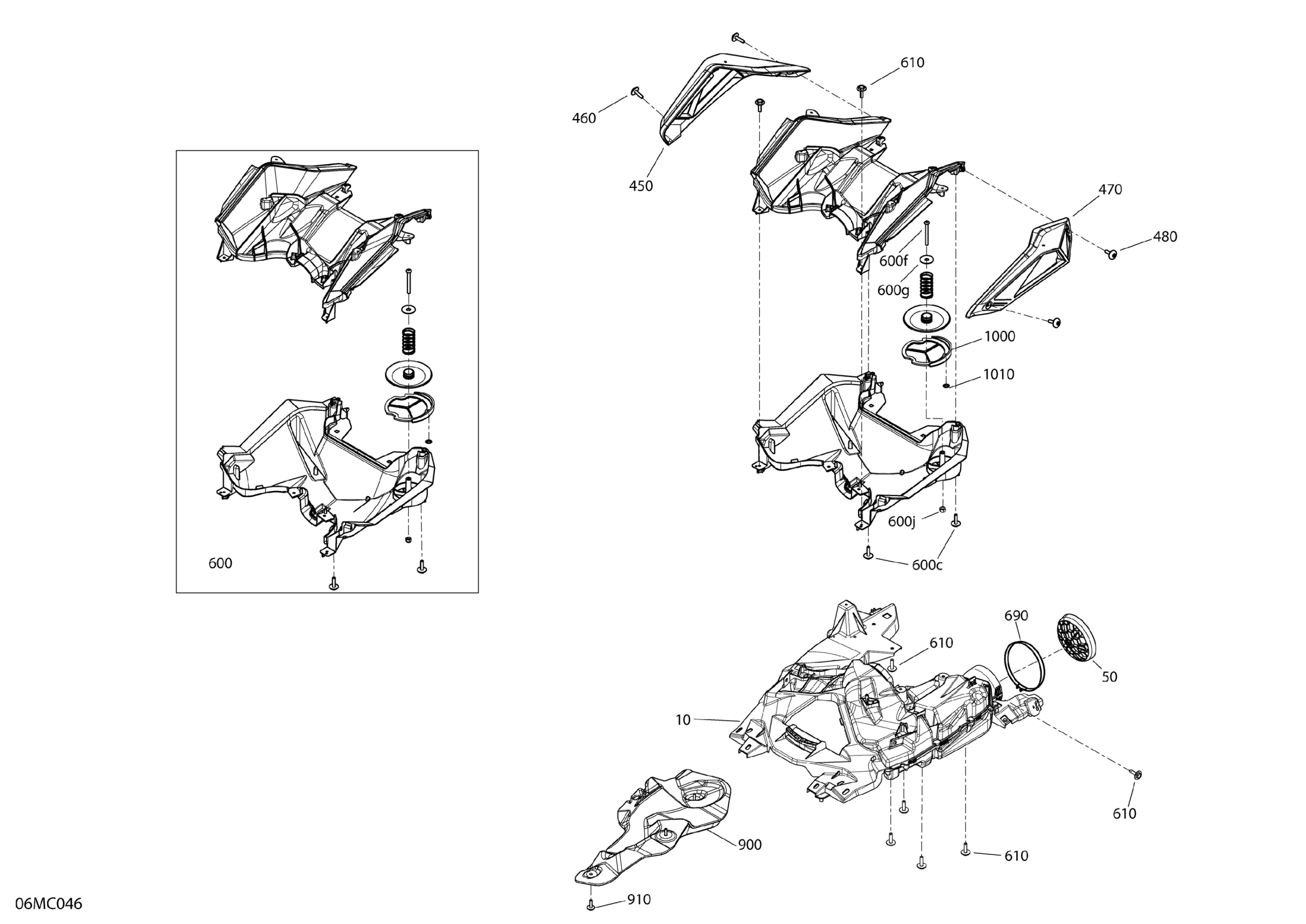

Ski-Doo BACKCOUNTRY 600 EFI - SPORT - (UBPA-UBPB) - 2023 Engine - Air Intake Diagram

Description

Price

Secondary Intake Silencer Ass'y

508001354

$83.99

Filter (Honeycomb)

508000967

$0.87

450

RH Air Filter (Nitex Mesh)

508000906

$38.99

460

Screw M4 X 16

250000889

$3.09

470

LH Air Filter (Nitex Mesh)

508000905

$38.99

480

Screw M4 X 16

250000889

$3.09

600

Air Duct Ass'y | Includes 600 to 600j

508000915

$99.99

600c

Screw M4 X 16

250000725

$3.49

600f

Socket Head Screw M4 X 40

205444056

$2.11

600g

Flat Washer

224060201

$1.26

600j

Elastic Stop Nut M4

232541414

$0.58

610

Screw M4 X 16

250000725

$3.49

610

Screw M4 X 16

250000725

$3.49

690

Gemi Clamp

293650247

$7.65

900

Heat Shield

508001207

$44.99

910

Screw M4 X 16

250000725

$3.49

1000

Pop Off Filter

508000815

$6.99

1010

Push Nut

250001189

$1.37
