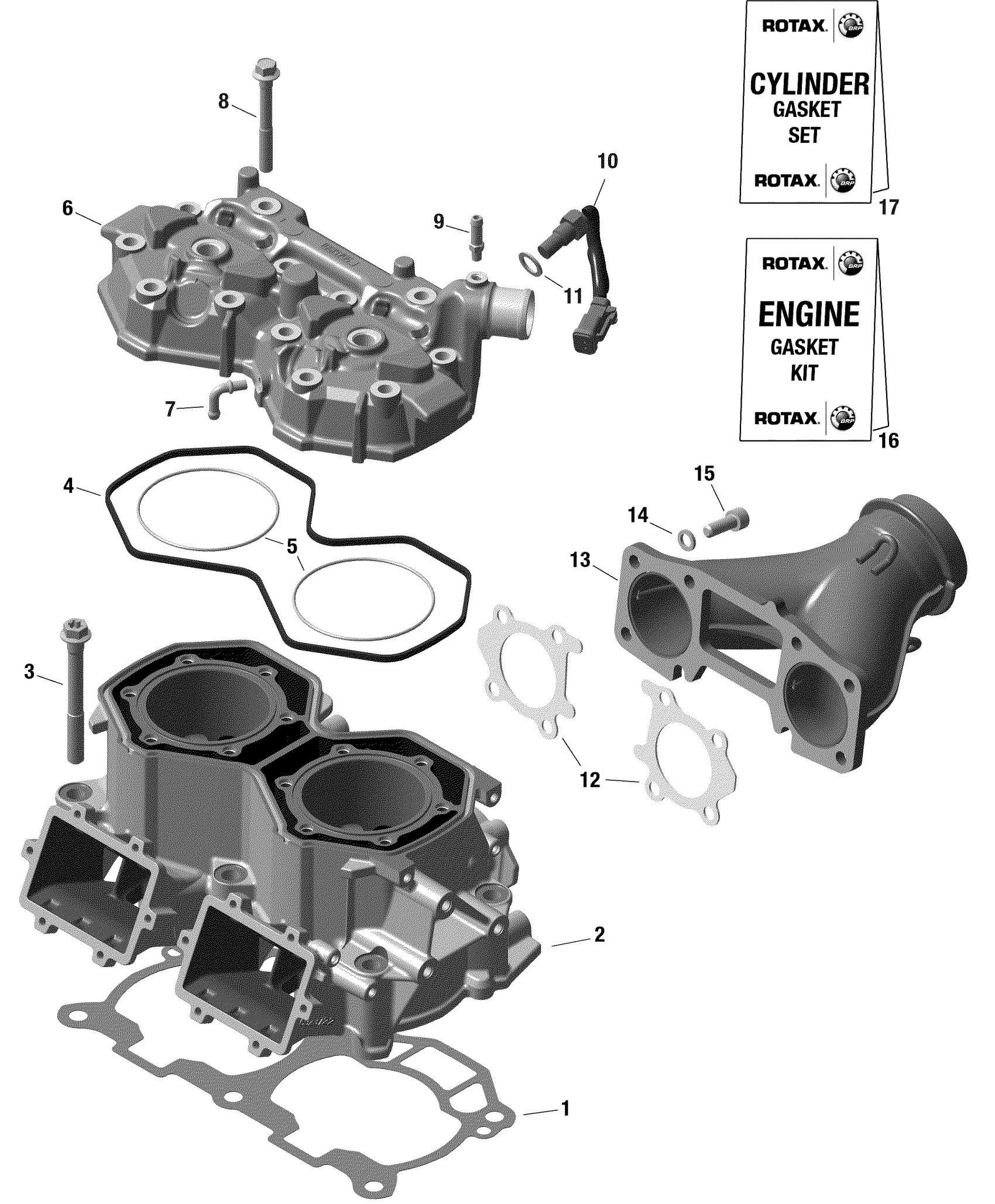

Ski-Doo BACKCOUNTRY 600 EFI - SPORT - 2022 Rotax - Cylinder And Cylinder Head Diagram

Gasket 0.5 | Included in gasket kit

420831070

$16.89

Gasket 0.6 | Included in gasket kit

420831071

$18.43

Gasket 0.7 | Included in gasket kit

420831072

$19.20

Gasket 0.8 | Included in gasket kit

420831073

$23.05

Gasket 0.9 | Included in gasket kit

420831074

$20.74

Double Cylinder

420923724

$869.99

Torx Flange Screw M10 X 90 -SW 13/T50

420441187

$17.66

Square Ring | Included in gasket kit

420430044

$5.69

O-Ring Cylinder | Included in gasket kit

420831825

$5.52

Cylinder Head

420613705

$274.99

Fittin 90D

420924802

$3.23

Collar Hex Screw M8 X 68.5

420640959

$6.09

Hose Nipple

420924724

$12.29

Temperature Sensor This part replaces 420664508.

420664509

$142.28

Aluminum Sealing Ring

420250016

$4.41

Gasket | Included in gasket kit

420430487

$8.23

Exhaust Manifold Ass'y

420873035

$266.12

Washer

420427290

$2.06

Allen Screw M8 X 22

420841051

$2.06

Engine Gasket Set

420894370

$243.82

Cylinder Gasket Set

420894371

$156.12
