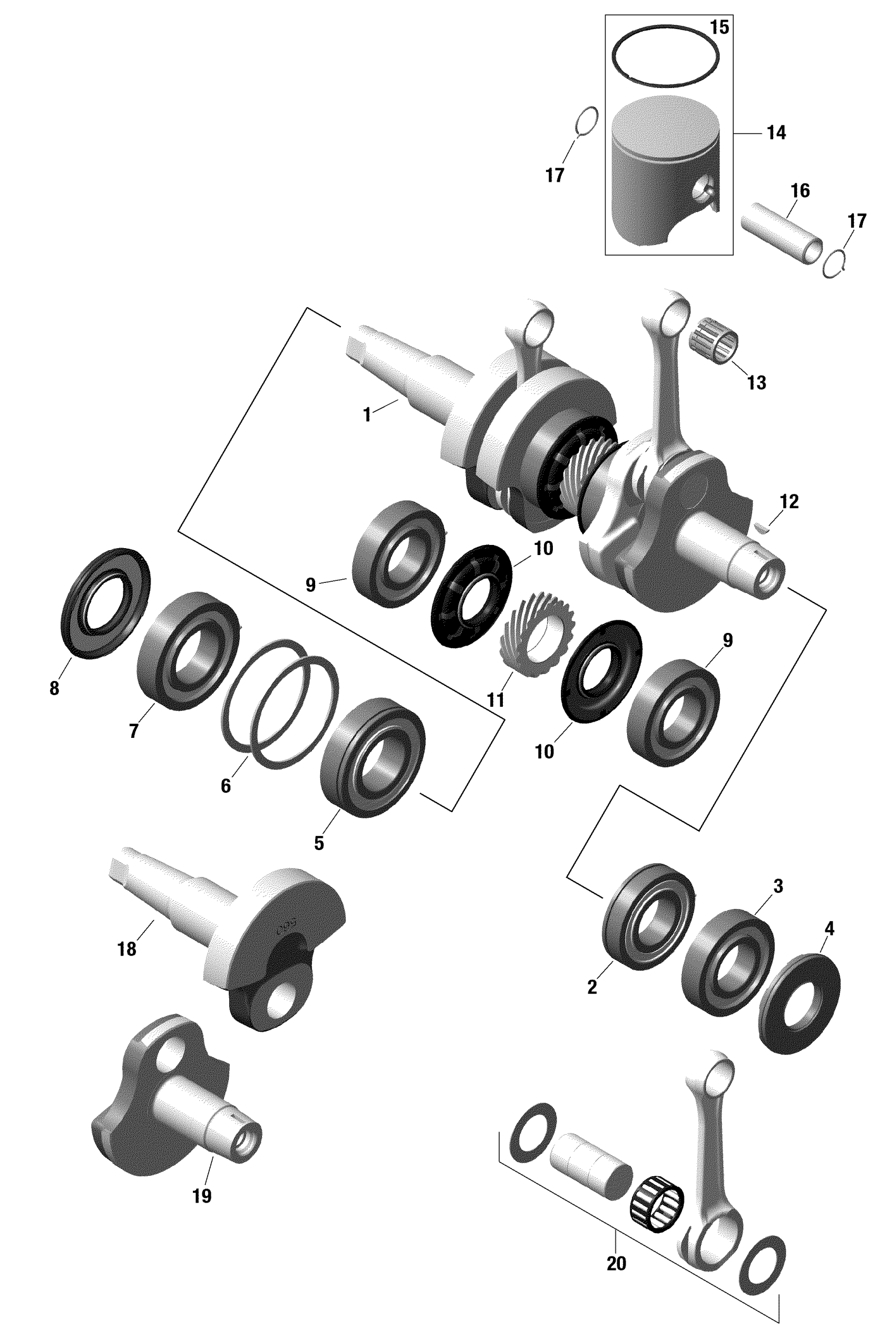

Ski-Doo BACKCOUNTRY 600 EFI - SPORT - 2022 Rotax - Crankshaft Diagram

#

Description
Price

1

Crankshaft Ass'y | Includes no. 1-7; 9-12

420686890

$1.00

2

Ball Bearing Sealed, 6207

420832673

$101.49

3

Ball Bearing 6207 | With drive pin

420832575

$52.99

4

Oil Seal

420831955

$27.49

5

Ball Bearing Sealed, 6208 | With drive pin

420832672

$101.49

6

Washer

420926190

$11.63

7

Ball Bearing 6208 | With drive pin

420832600

$79.49

8

Oil Seal | Included in gasket kit

420931284

$23.49

9

Ball Bearing 6207 | With drive pin

420832575

$52.99

10

Oil Seal

420931455

$35.99

11

CENTRAL GEAR - Call your local BRP dealership

420834565

Unavailable

12

Woodruff Key

420246015

$3.17

13

Needle Bearing

420832445

$27.49

14

Piston Ass'y | Includes no. 14-15 With ring

420893895

$228.99

15

Semi Trapez Ring

420815470

$68.99

16

Piston Pin

420916412

$30.99

17

Piston Circlip

420845106

$3.93

18

Not Available As Spare Part - Friction Washer

Unavailable

19

Not Available As Spare Part - Friction Washer

Unavailable

20

Rod Repair Kit PTO

420890738

Unavailable

20

Rod Repair Kit MAG

420890737

Unavailable
