2005 Kawasaki ZZR600 Cowling Lowers Diagram

← All diagrams

Find the part on the Cowling Lowers diagram for your 2005 Kawasaki ZZR600, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

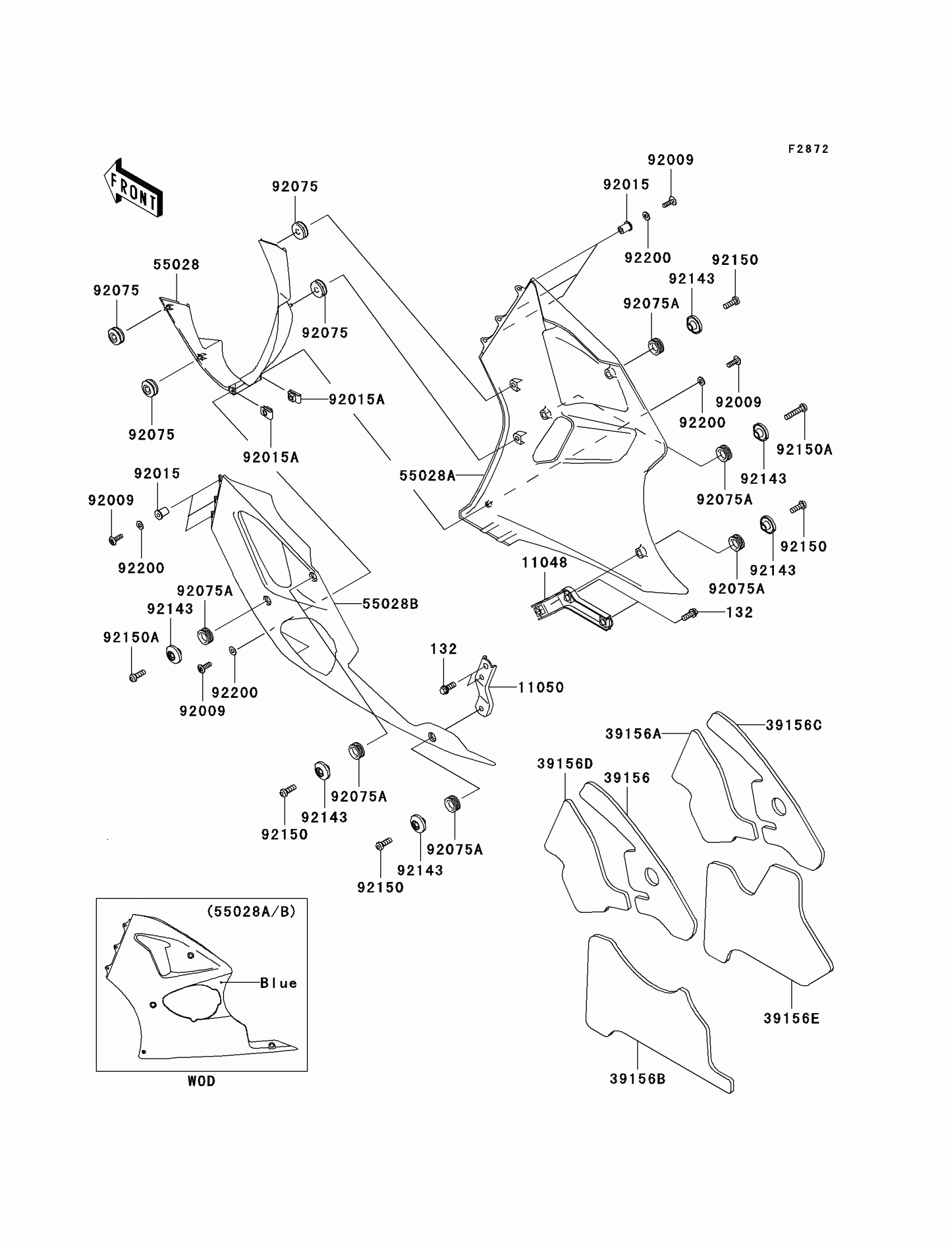

2005 Kawasaki ZZR600 Cowling Lowers Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11048

BRACKET,LWR COWLING,RH,LWR

11048-1870

1
Out of stock

11050

BRACKET,SIDE COWLING,LH,LWR

11050-1867

1
Out of stock

39156

PAD,SIDE COWLING,LH,UPP

39156-1616

1
Out of stock

39156A

PAD,SIDE COWLING,RH,CNT

39156-1617

1
Out of stock

39156B

PAD,SIDE COWLING,LH,LWR

39156-1618

1
Out of stock

39156C

PAD,SIDE COWLING,RH,UPP

39156-1619

1
Out of stock

39156D

PAD,SIDE COWLING,LH,CNT

39156-1620

1
Out of stock

39156E

PAD,SIDE COWLING,RH,LWR

39156-1621

1
Out of stock

55028

COWLING,FR,M.O.BLUE

55028-1368-726

1
Out of stock

55028A

COWLING,SIDE,RH,M.O.BLUE

55028-1396-726

1
Out of stock

55028B

COWLING,SIDE,LH,M.O.BLUE

55028-1402-726

1
Out of stock

92009

SCREW,5X16

92009-1909

1
Out of stock

92015

NUT,WELL,5MM

92015-1757

1
Out of stock

92015A

NUT,5MM

92015-1798

1
Out of stock

92075

DAMPER

92075-1067

1
Out of stock

92075A

DAMPER

92075-1634

1
Out of stock

132

BOLT-FLANGED-SMALL,6X16

132V0616

1
Out of stock

92143

COLLAR,BLACK

92143-1226

1
Out of stock

92150

BOLT,SOCKET,6X18

92150-1553

1
Out of stock

92150A

BOLT,SOCKET,6X30

92150-1554

1
Out of stock

92200

WASHER,NYLON,5.3X11.5X0.5

92200-1480

1
Out of stock
