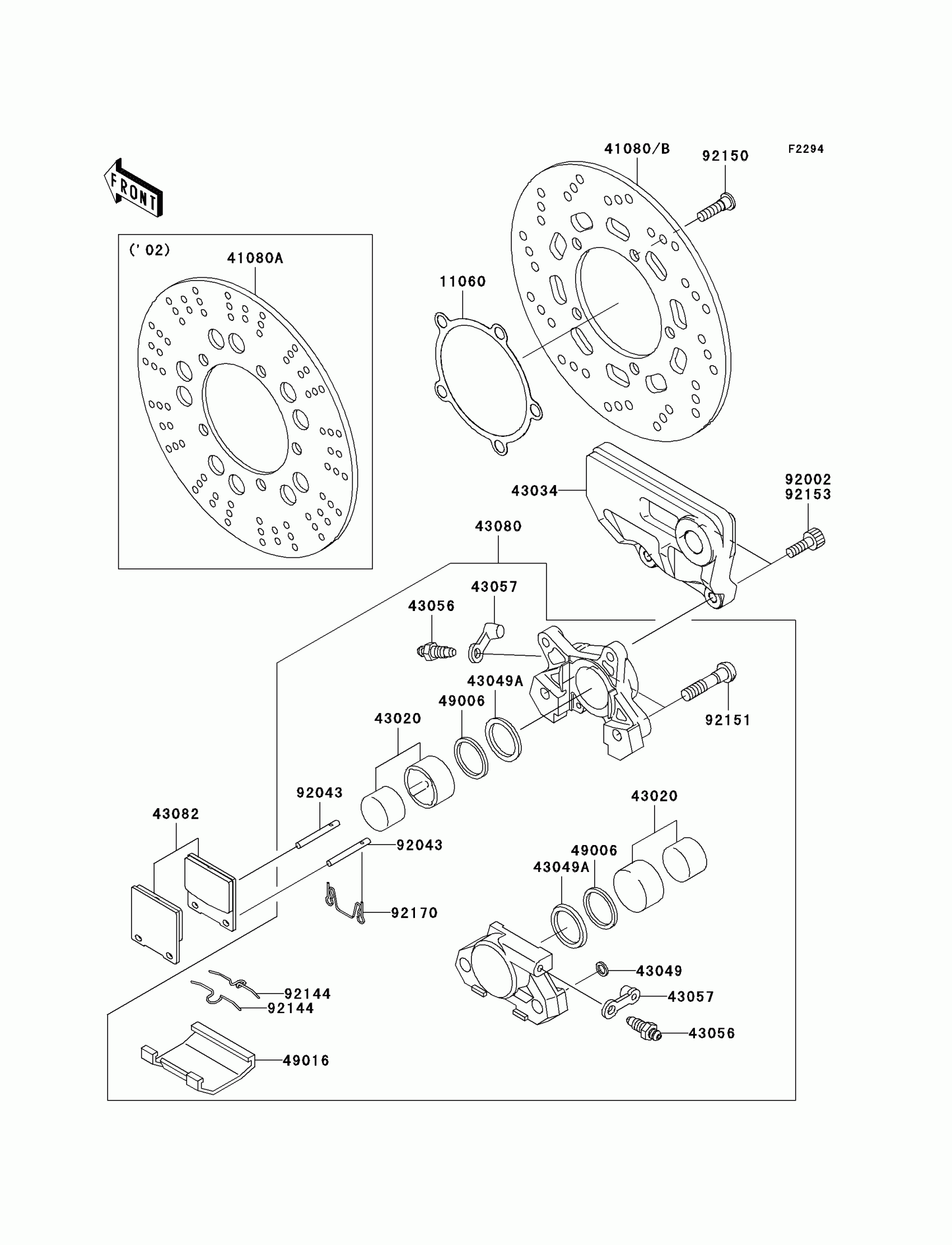

Find the part on the Rear Brake diagram for your 2005 Kawasaki ZZR1200, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2005 Kawasaki ZZR1200 Rear Brake Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11060

GASKET,REAR DISC

11060-1675

1

$14.74

In stock

41080

DISC,RR,C.GRAY

41080-0036-FB

1

$328.77

In stock

43020

PISTON-COMP-BRAKE

43020-1111

1

$72.19

In stock

43034

1

$130.77

In stock

43049

1

$4.88

In stock

43049A

PACKING,PISTON SEAL

43049-1097

1

$8.76

In stock

43056

BREATHER-BRAKE

43056-1054

1

$22.74

In stock

43057

CAP-BREATHER

43057-003

1

$2.02

In stock

43080

1

$423.72

In stock

43082

PAD-ASSY-BRAKE

43082-1291

1
Out of stock

49006

BOOT,PISTON SEAL

49006-1212

1

$21.56

In stock

49016

COVER-SEAL

49016-1145

1

$12.88

In stock

92043

PIN

92043-1522

1

$3.92

In stock

92144

SPRING,PAD

92144-1401

1

$4.80

In stock

92150

BOLT,SOCKET,8X30

92150-1771

1

$3.72

In stock

92151

BOLT,SOCKET,10X45

92151-1106

1

$10.63

In stock

92153

BOLT,SOCKET,8X25

92153-0512

1
Out of stock

92170

CLAMP

92170-1635

1
Out of stock
