Description

Price

130

BOLT-FLANGED,6X35

130L0635

Unavailable

13236

LEVER-COMP,FRONT BRAKE

13236-1185

$58.54

27010

SWITCH,BRAKE

27010-1170

$33.39

43015

CYLINDER-ASSY-MASTER,FR

43015-1498

$486.35

43020

PISTON-COMP-BRAKE,FR

43020-1054

$59.90

43022

STOPPER-BRAKE,PISTON

43022-1010

$3.69

43026

CAP-BRAKE

43026-1076

$43.44

43027

PLATE-DIAPHRAGM

43027-1055

$7.68

43028

DIAPHRAGM,MASTER CYLINDER

43028-1058

$21.24

43034

HOLDER-BRAKE,MASTER CYLINDER

43034-1053

$36.55

43061

JOINT-BRAKE

43061-1002

$73.52

43067

WASHER,10.5X15X1.5

43067-001

$1.81

43095

HOSE-BRAKE,FR,LWR,LH

43095-1274

$107.26

43095A

HOSE-BRAKE,FR,LWR,RH

43095-1275

$109.00

43095B

HOSE-BRAKE,FR,UPP

43095-1295

$89.44

49006

BOOT,DUST

49006-1040

$9.11

49016

COVER-SEAL,MASTER CYLINDER

49016-1044

$6.90

92002

BOLT,LEVER SET,BLACK

92002-1322

$9.29

92002A

BOLT,SCREW,4X12

92002-1323

$3.12

92002B

BOLT,OIL,L=23

92002-1888

$4.35

92002C

BOLT,OIL,L=37

92002-1909

$9.38

92009

SCREW,4MM

92009-1458

$2.59

92015

NUT,FLANGED,6MM,BLACK

92015-1233

$4.37

92066

PLUG,9.5X8,POLYETHYLENE

92066-1077

$3.69

92153

BOLT,SOCKET,6X20

92153-0417

$7.54

92170

CLAMP

92170-1067

$5.93

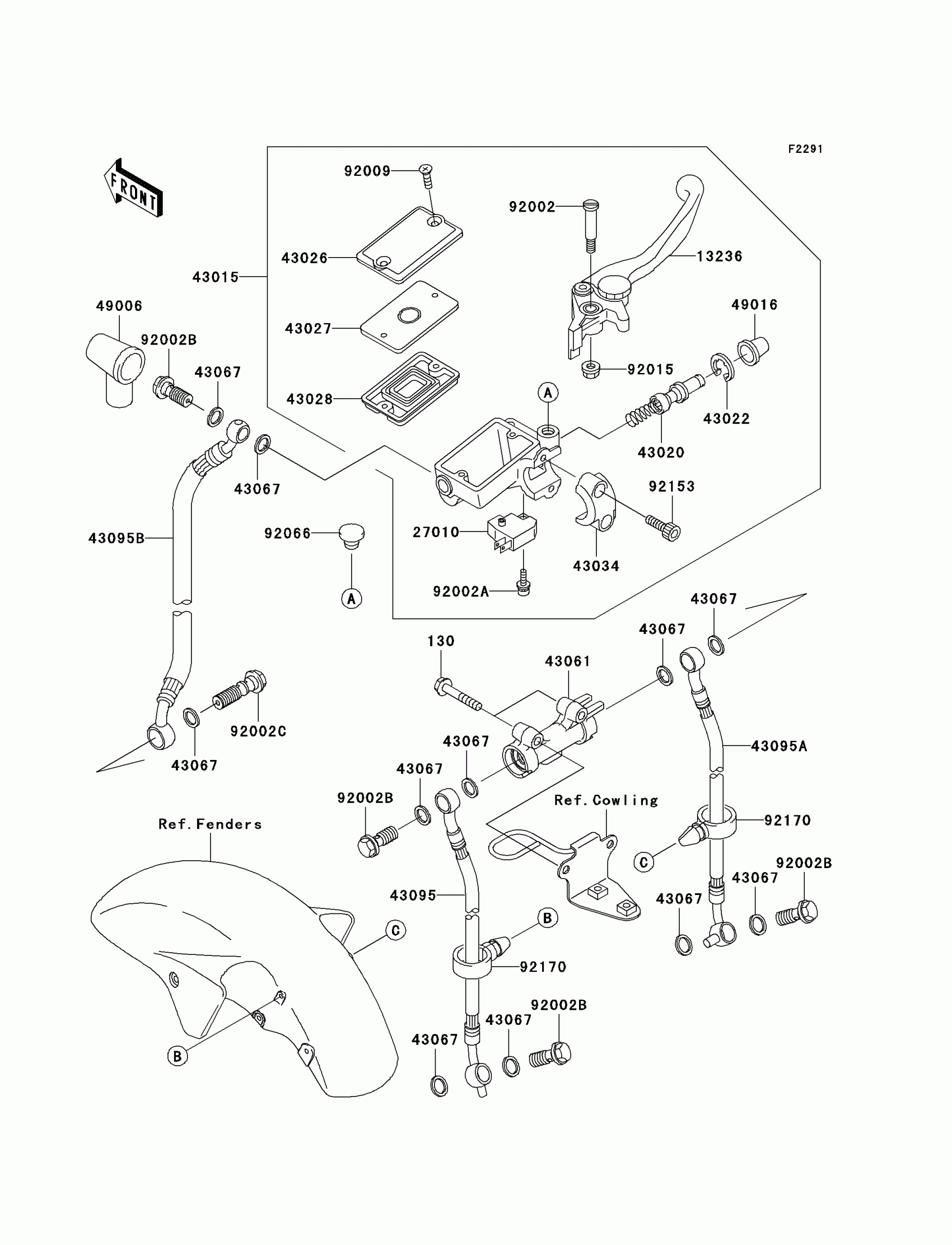

Kawasaki ZZR1200 Front Master Cylinder(C1/C2) Diagram

BOLT-FLANGED,6X35
