Description

Price

31064

PIPE-COMP,SIDE FRAME

31064-1246

$417.51

32160

FRAME-COMP,RR,BLACK

32160-1776-10

$1,103.86

32160A

FRAME-COMP,AL,FR,P.SILVER

32160-1780-458

$2,248.92

92015

NUT,POP,6MM,L=15

92015-1791

$3.72

92015A

NUT,POP,6MM,L=16.5

92015-1792

$3.72

92015B

NUT,STEERING STEM,35MM

92015-1848

$44.93

92015C

NUT,STEERING,25MM

92015-1891

$70.42

92022

WASHER,25X36X2.3

92022-250

$3.97

92045

BEARING-BALL,SF07A17PX1V1

92045-1384

$41.48

92049

SEAL-OIL,XMH 43 75 6.4J

92049-1382

$22.62

92049A

SEAL-OIL,XMHE 43 55 4J

92049-1383

$15.43

92055

RING-O,ID=24.5

92055-1459

$3.75

92150

BOLT,SOCKET,10X30

92150-1690

$4.93

92153

BOLT,SOCKET,10X25

92153-1136

$3.94

92153A

BOLT,SOCKET,10X35

92153-1164

$5.85

92200

WASHER,CLAW,25.5X40X2.3

92200-1083

$5.71

92210

NUT,LOCK,FLANGED,10MM

92210-1080

$8.16

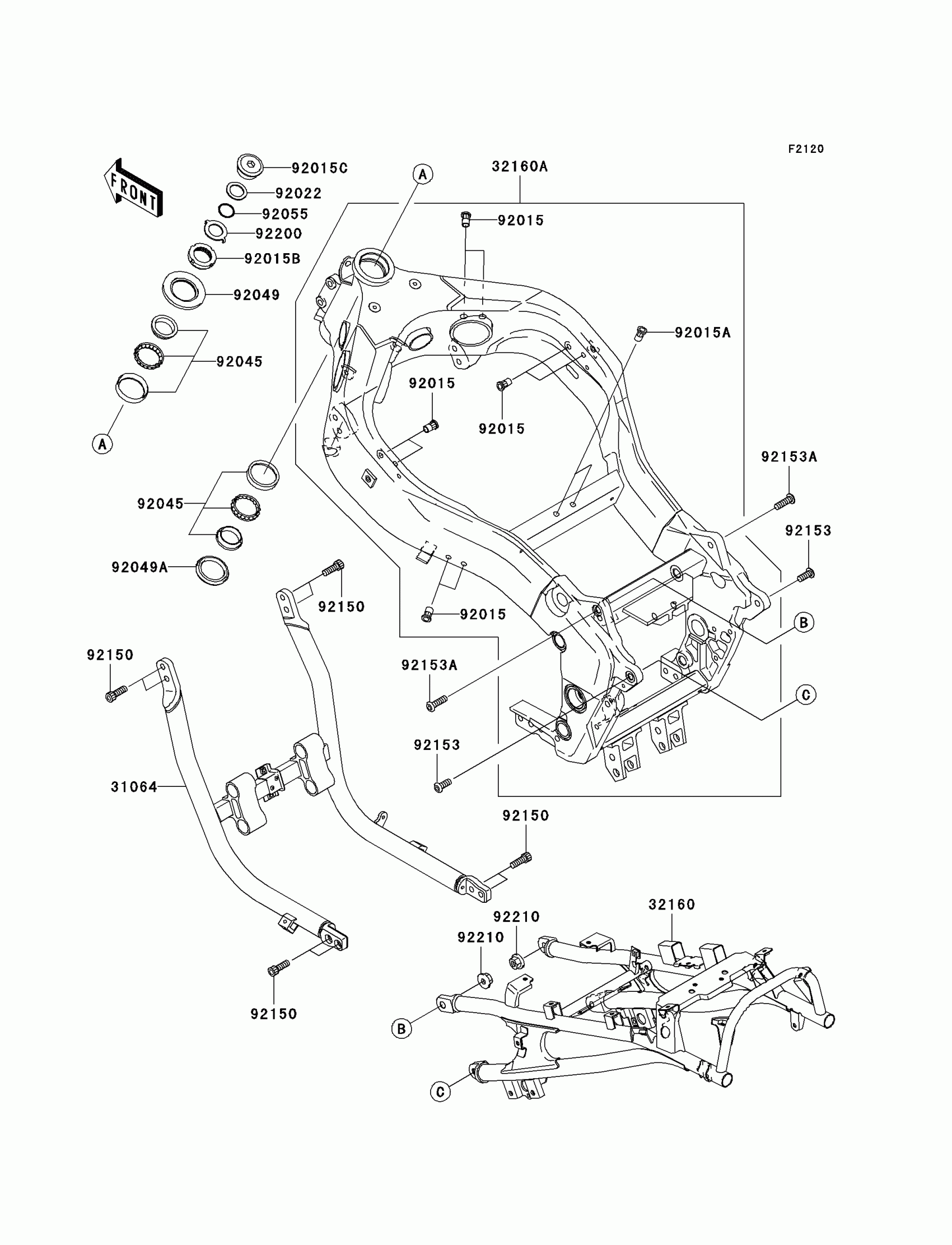

Kawasaki ZZR1200 Frame(C1/C2) Diagram
