2015 Kawasaki ZR800 (European) Frame Diagram

← All diagrams

Find the part on the Frame diagram for your 2015 Kawasaki ZR800 (European), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

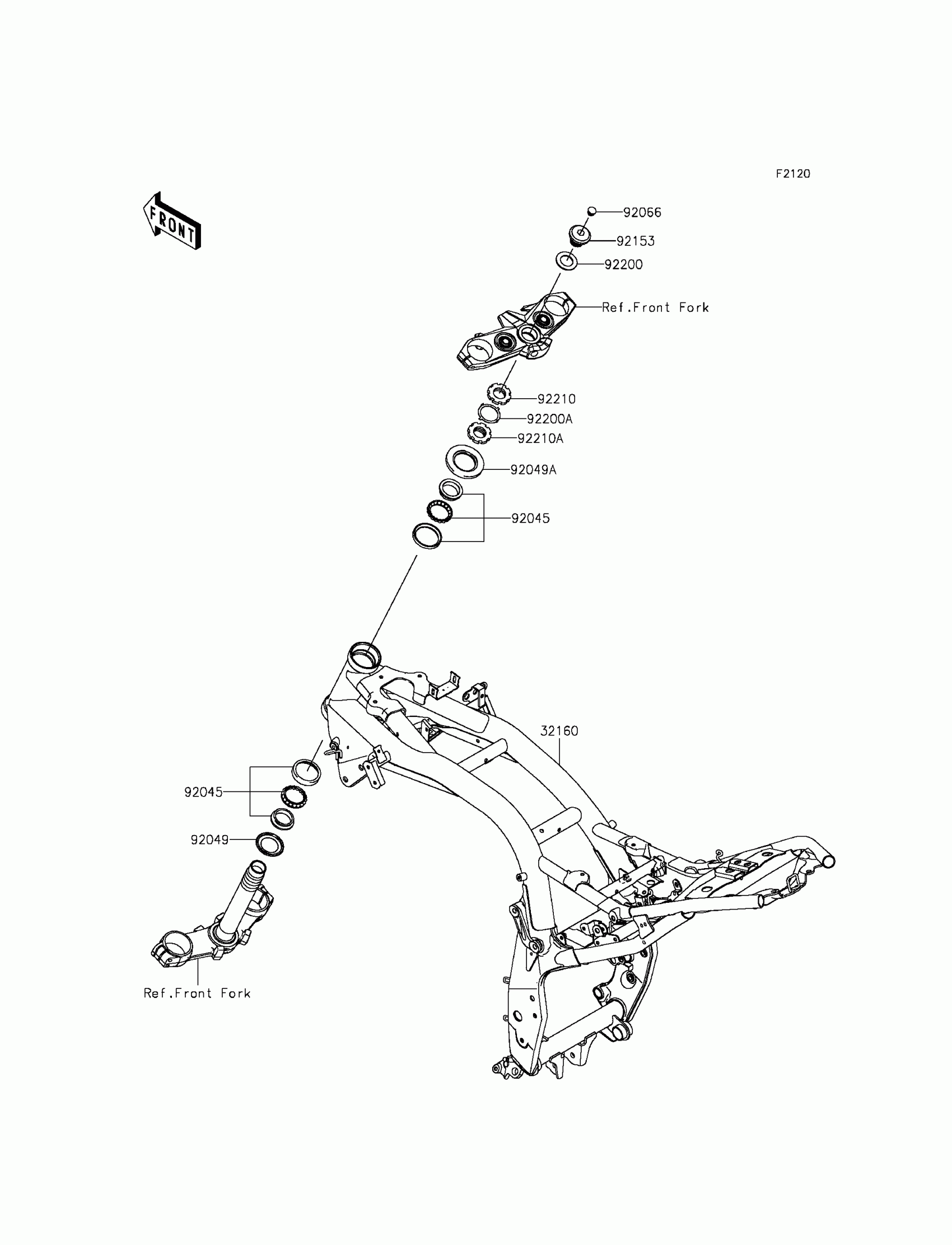

2015 Kawasaki ZR800 (European) Frame Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

32160

FRAME-COMP,F.S.BLACK

32160-0678-18R

1
Out of stock

92045

BEARING-BALL,SF07A17PX1V1

92045-1384

1
Out of stock

92049

SEAL-OIL,DS35X55X4

92049-0022

1
Out of stock

92049A

SEAL-OIL,MX043N2

92049-1483

1
Out of stock

92066

PLUG

92066-0071

1
Out of stock

92153

BOLT,26MM

92153-0474

1
Out of stock

92200

WASHER,27X42X2.3

92200-0753

1
Out of stock

92200A

WASHER

92200-0781

1
Out of stock

92210

NUT,STEERING STEM,35MM

92210-0534

1
Out of stock

92210A

NUT,STEERING STEM,35MM

92210-0535

1
Out of stock
