2015 Kawasaki ZR800 (European) Accessory Diagram

← All diagrams

Find the part on the Accessory diagram for your 2015 Kawasaki ZR800 (European), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

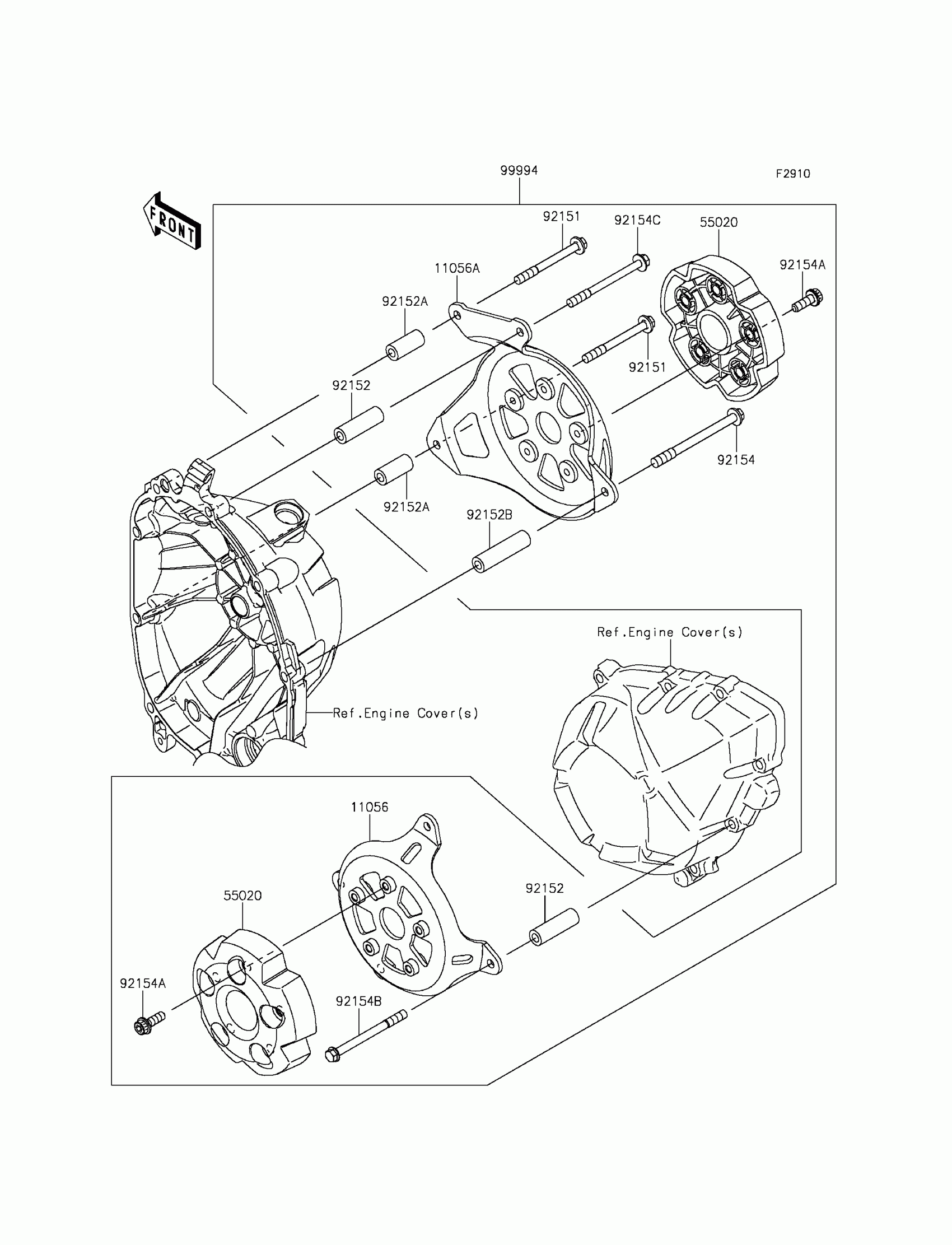

2015 Kawasaki ZR800 (European) Accessory Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11056

1

$95.73

In stock

11056A

1

$104.26

In stock

55020

GUARD,ENGINE

55020-0856

1

$37.69

In stock

92151

BOLT,6X60

92151-1791

1

$2.25

In stock

92152

COLLAR,6.5X12X37.9

92152-1639

1
Out of stock

92152A

COLLAR,6.5X12X26.8

92152-1640

1
Out of stock

92152B

COLLAR,6.5X12X46.8

92152-1641

1
Out of stock

92154

BOLT,FLANGED,6X80

92154-0099

1

$5.81

In stock

92154A

BOLT,SOCKET,6X18

92154-1036

1

$2.46

In stock

92154B

BOLT,FLANGED,6X70

92154-1037

1

$2.71

In stock

92154C

BOLT,FLANGED,6X70

92154-1038

1

$5.00

In stock

99994

1

$188.11

In stock
