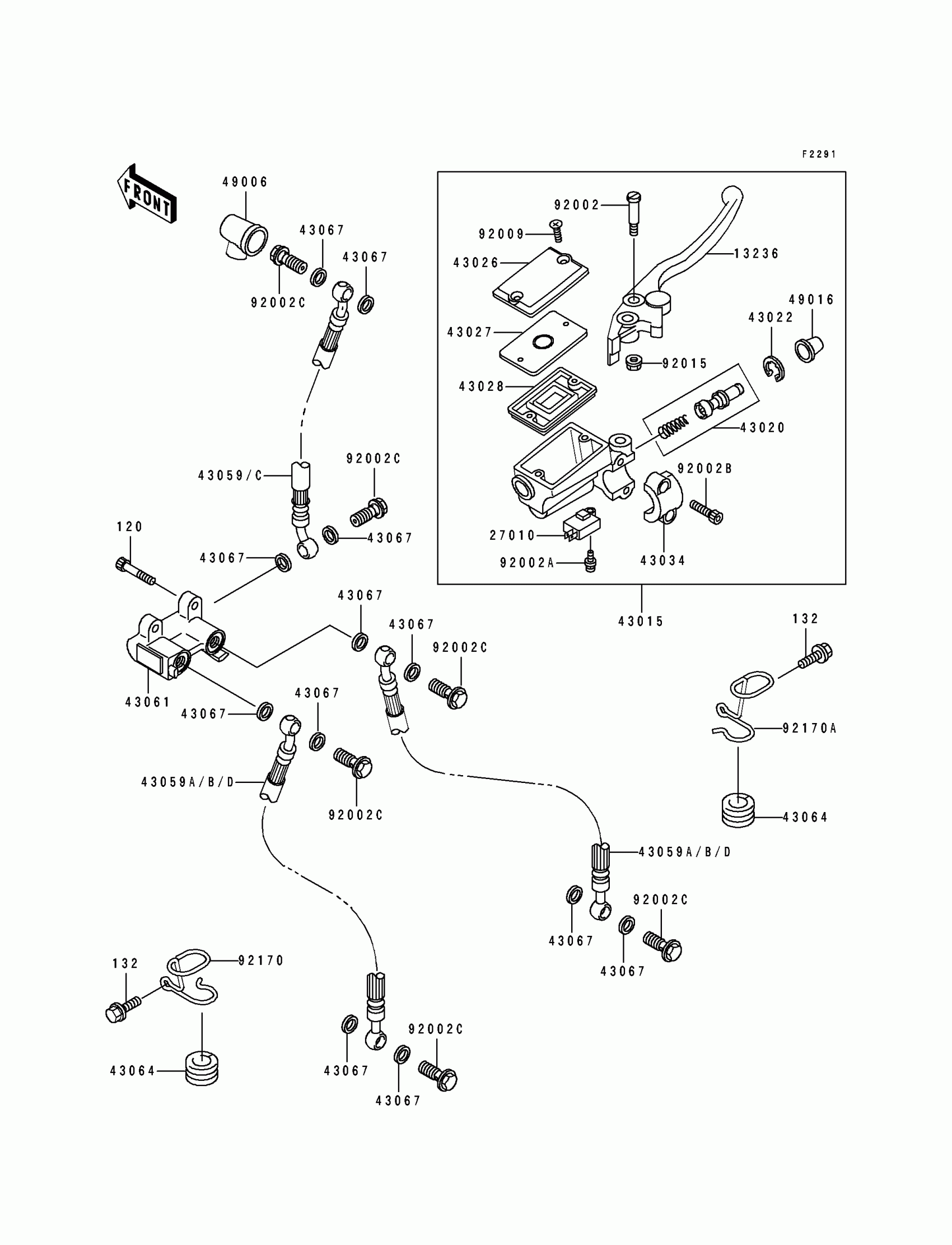

Kawasaki ZR1100 Zephyr Front Master Cylinder Diagram

#

Description
Price

13236

LEVER-COMP,FRONT BRAKE

13236-1221

$42.75

27010

SWITCH,BRAKE

27010-1170

$32.62

43015

CYLINDER-ASSY-MASTER,FR

43015-1490

Unavailable

43020

PISTON-COMP-BRAKE,FR

43020-1054

$58.51

43022

STOPPER-BRAKE,PISTON

43022-1010

$3.54

43026

CAP-BRAKE

43026-1076

$43.44

43027

PLATE-DIAPHRAGM

43027-1055

$7.68

43028

DIAPHRAGM,MASTER CYLINDER

43028-1058

$18.50

43034

HOLDER-BRAKE,MASTER CYLINDER

43034-1053

$36.55

43059C

HOSE-BRAKE,FR,UPP

43059-1858

Unavailable

43059D

HOSE-BRAKE,FR,LWR

43059-1904

Unavailable

43061

JOINT-BRAKE

43061-1067

$93.38

43064

GROMMET,HOSE CLAMP

43064-007

$4.18

43067

WASHER,10.5X15X1.5

43067-001

$1.57

49006

BOOT,DUST

49006-1040

$8.74

49016

COVER-SEAL,MASTER CYLINDER

49016-1044

$6.62

92002

BOLT,LEVER SET,BLACK

92002-1322

$8.91

92002A

BOLT,SCREW,4X12

92002-1323

$2.99

92002B

BOLT,SOCKET,6X20,BLACK

92002-1324

$7.54

92002C

BOLT,OIL,L=23

92002-1888

$4.15

92009

SCREW,4MM

92009-1458

$2.23

92015

NUT,FLANGED,6MM,BLACK

92015-1233

$4.18

92170

CLAMP,HOSE,LH

92170-1333

$17.31

92170A

CLAMP,HOSE,RH

92170-1334

Unavailable

120

BOLT-SOCKET,6X20

120P0620

Unavailable

132

BOLT-FLANGED-SMALL,6X12

132E0612

Unavailable
