2005 Kawasaki ZR-7S (Canada Only) Carburetor Diagram

← All diagrams

Find the part on the Carburetor diagram for your 2005 Kawasaki ZR-7S (Canada Only), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

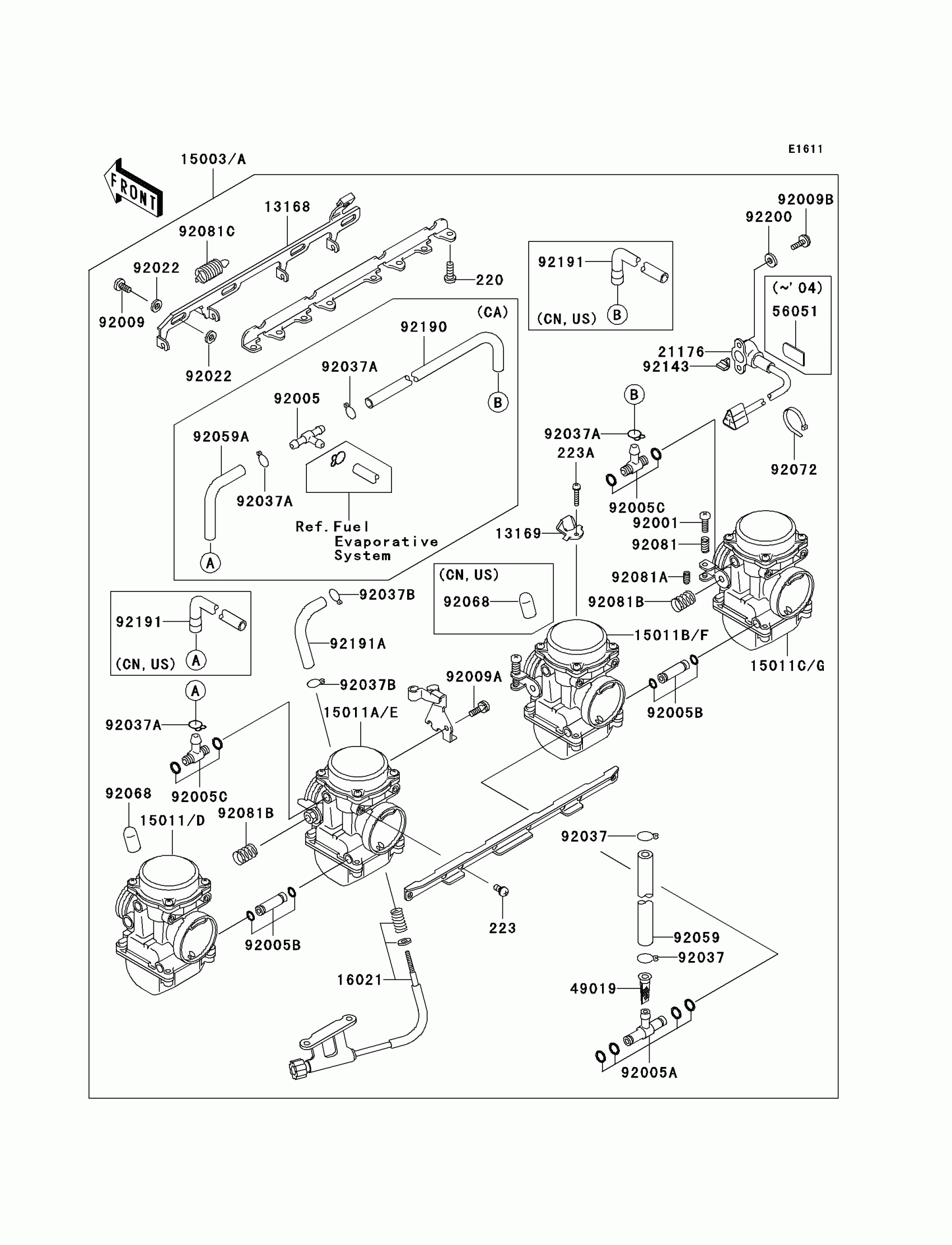

2005 Kawasaki ZR-7S (Canada Only) Carburetor Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

13168

LEVER,DL

13168-1280

1
Out of stock

13169

PLATE,STARTER CABLE

13169-1965

1
Out of stock

15003A

CARBURETOR-ASSY

15003-1488

1
Out of stock

15011D

CARBURETOR,LH,OUTSIDE

15011-1719

1
Out of stock

15011E

CARBURETOR,LH,INSIDE

15011-1720

1
Out of stock

15011F

CARBURETOR,RH,INSIDE

15011-1721

1
Out of stock

15011G

CARBURETOR,RH,OUTSIDE

15011-1722

1
Out of stock

16021

SCREW-THROTTLE STOP

16021-1179

1
Out of stock

21176

SENSOR,THROTTLE

21176-1073

1
Out of stock

49019

FILTER-FUEL

49019-1092

1
Out of stock

92001

BOLT,THROTTLE ADJUST

92001-1998

1
Out of stock

92005A

FITTING

92005-1288

1
Out of stock

92005B

FITTING

92005-1310

1
Out of stock

92005C

FITTING

92005-1314

1
Out of stock

92009

SCREW

92009-1262

1
Out of stock

92009A

SCREW,5X10

92009-1365

1
Out of stock

92009B

SCREW

92009-1781

1
Out of stock

92022

WASHER,6.1X11X0.8,POLYACETAL

92022-1199

1
Out of stock

220

SCREW-PAN-CROS,6X16

220B0616

1
Out of stock

223

SCREW-PAN-WS-CROS,5X10

223C0510

1
Out of stock

223A

SCREW-PAN-WS-CROS,4X20

223D0420

1
Out of stock

92037

CLAMP,FUEL TUBE

92037-1075

1
Out of stock

92037A

CLAMP,TUBE

92037-1185

1
Out of stock

92037B

CLAMP,TUBE

92037-1201

1
Out of stock

92059

TUBE,FUEL,7.3X12.5X220

92059-1236

1
Out of stock

92068

PLUG,12X25

92068-006

1
Out of stock

92072

BAND,L=100

92072-1250

1
Out of stock

92081

SPRING

92081-1620

1
Out of stock

92081A

SPRING,THROTTLE ADJUST LWR

92081-1621

1
Out of stock

92081B

SPRING,THROTTLE ADJUST CNT

92081-1622

1
Out of stock

92081C

SPRING,STARTER LEVER

92081-1913

1
Out of stock

92143

COLLAR

92143-1907

1
Out of stock

92191

TUBE,AIR VENT

92191-1118

1
Out of stock

92191A

TUBE

92191-1415

1
Out of stock

92200

WASHER

92200-1369

1
Out of stock
