Partiron

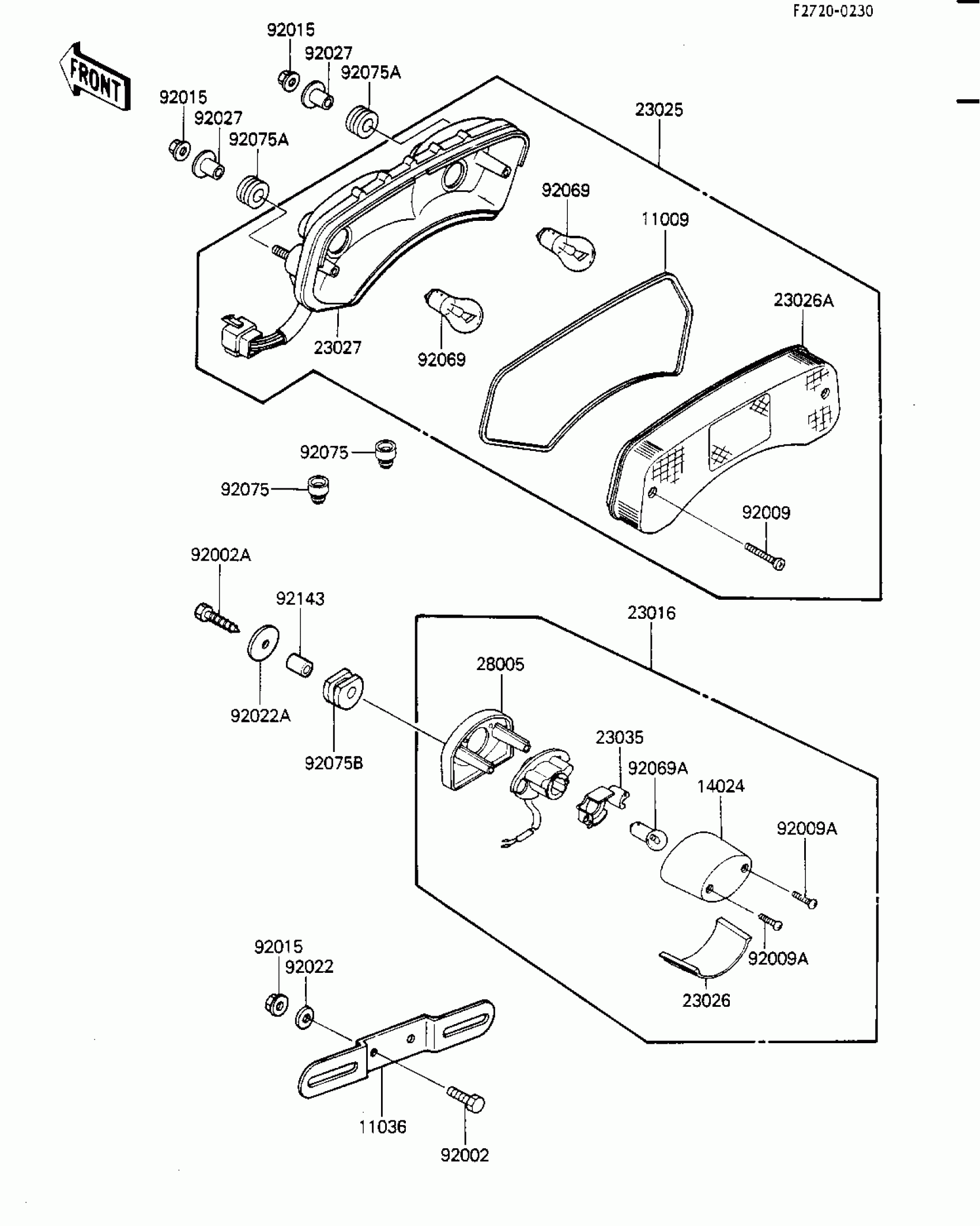

Kawasaki ZL600 Eliminator TAILIGHT Diagram

#

Description
Price

11009

GASKET,TAIL LAMP LENS

11009-1524

$7.15

11036

BRACKET,LICENSE PLATE

11036-1040

Unavailable

14024

COVER,LICENSE LAMP

14025-1725

$17.20

23016

LAMP-ASSY,LICENSE PLA

23016-1071

Unavailable

23025

LAMP-TAIL

23025-1123

Unavailable

23026

LENS,LICENSE LAMP

23026-1064

Unavailable

23026A

LENS,TAIL LAMP

23026-1068

Unavailable

23027

BODY-COMP-TAIL LAMP

23027-1062

Unavailable

23035

REFLECTOR-LAMP,LICENSE

23035-1060

Unavailable

28005

BODY-LAMP,LICENSE

28005-1051

$25.64

92002

BOLT,6X16

92002-1124

Unavailable

92002A

BOLT,TAPPING,5X25

92002-1831

Unavailable

92009

SCREW,TAPPING,4X30

92009-1056

$3.92

92009A

SCREW,TAPPING,4X20

92009-1378

$3.68

92015

NUT,FLANGED,6MM

92015-1078

Unavailable

92022

WASHER,6.5X20X1.6

92022-125

$1.08

92022A

WASHER,5.5X20X1.2

92022-1581

Unavailable

92027

COLLAR,L=13.1

92027-251

Unavailable

92069

BULB,12V 27/8W

92069-059

$6.19

92069A

BULB,12V 8W

92069-1012

Unavailable

92075

DAMPER

92075-035

$3.51

92075A

DAMPER,10X24X12

92075-1690

$3.81

92075B

DAMPER

92075-1870

$4.42

92143

COLLAR,5.8X9X10.5

92143-1047

$3.34
