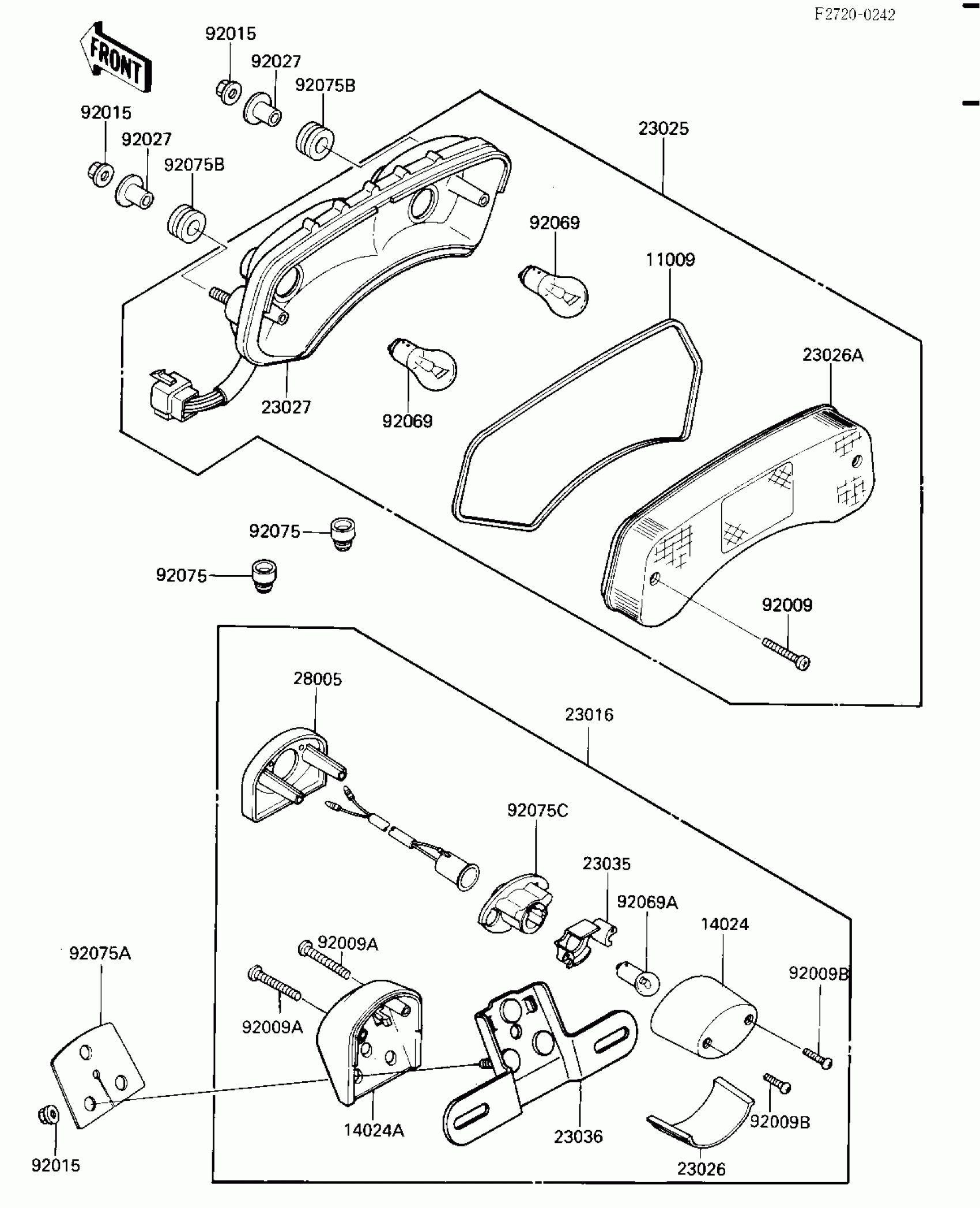

Kawasaki ZL1000 Eliminator TAILIGHT Diagram

#

Description
Price

11009

GASKET,TAIL LAMP LENS

11009-1524

$7.15

14024

COVER,LICENSE LAMP

14025-1725

$17.20

14024A

COVER,LICENSE LAMP

14025-1728

$59.51

23016

LAMP-ASSY,LICENSE

23016-1075

$186.55

23025

LAMP-TAIL

23025-1153

$196.48

23026

LENS,LICENSE LAMP

23026-1064

Unavailable

23026A

LENS,TAIL LAMP

23026-1068

Unavailable

23027

BODY-COMP-TAIL LAMP

23027-1078

$196.48

23035

REFLECTOR-LAMP,LICENSE

23035-1060

Unavailable

23036

BRACKET-TAIL LAMP

23036-1105

$33.01

28005

BODY-LAMP,LICENSE

28005-1051

$25.64

92009

SCREW,TAPPING,4X30

92009-1056

$3.92

92009A

SCREW,TAPPING,5X40

92009-1263

$3.53

92009B

SCREW,TAPPING,4X20

92009-1378

$3.68

92015

NUT,FLANGED,6MM

92015-1367

$2.53

92027

COLLAR,L=13.1

92027-251

Unavailable

92069

BULB,12V 27/8W

92069-059

$6.19

92069A

BULB,12V 8W

92069-1012

Unavailable

92075

DAMPER

92075-035

$3.51

92075A

DAMPER,LICENSE LAMP

92075-1676

$9.56

92075B

DAMPER,10X24X12

92075-1690

$3.81

92075C

DAMPER,LICENSE LAMP

92075-1694

$23.12
