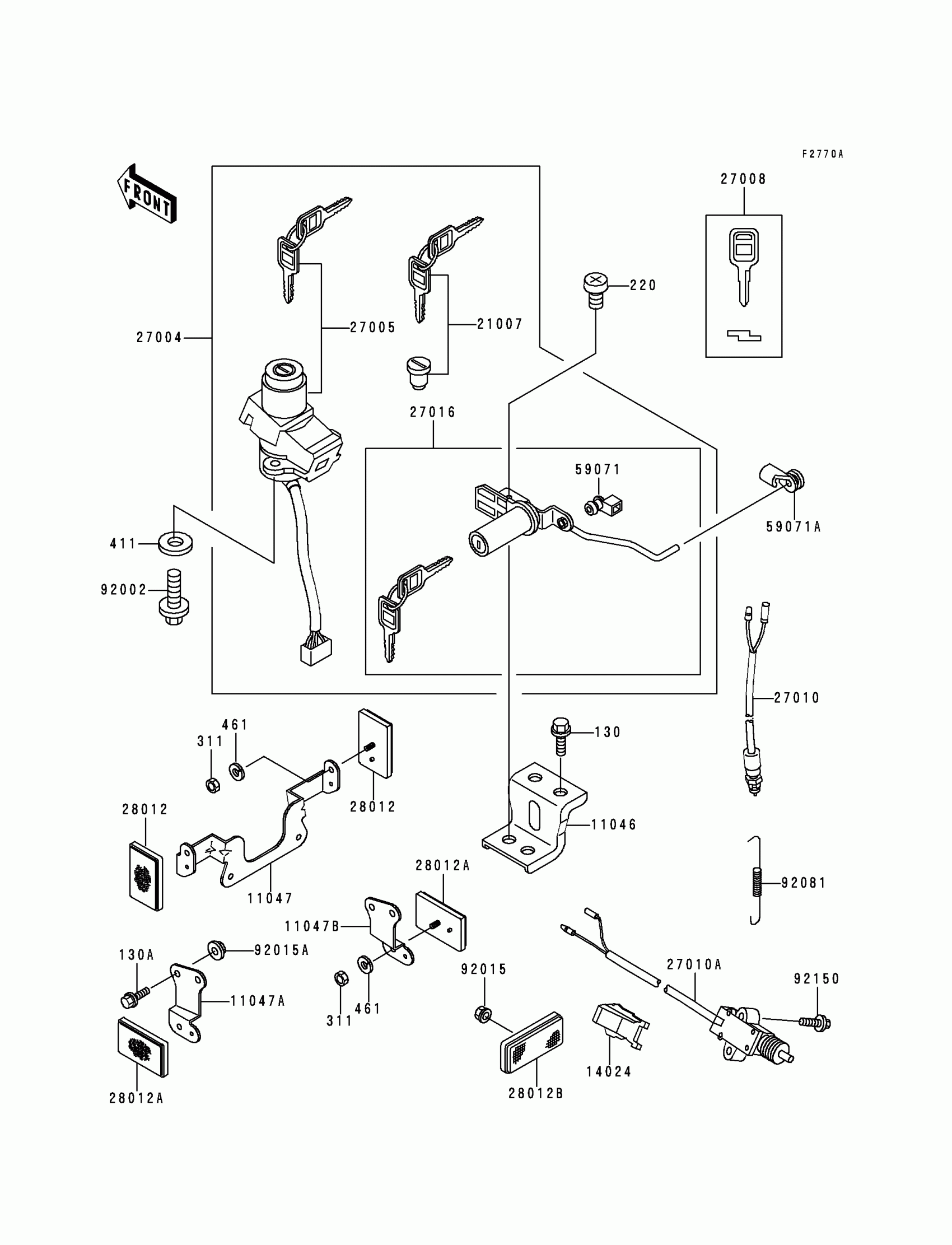

Kawasaki Zephyr Ignition Switch(JKAZRFB1MA004499&NAMI.) Diagram

Description

Price

130

BOLT-FLANGED,6X12

130C0612

Unavailable

130A

BOLT-FLANGED,6X14,BLACK

130J0614

Unavailable

220

SCREW PAN HEAD 6X12

220B0612

Unavailable

311

NUT-HEX

311B0500

$0.51

411

WASHER-PLAIN,6MM

411E0600

$1.19

461

WASHER SPRING 5MM

461F0500

Unavailable

11046

BRACKET,SEAT LOCK

11046-1790

Unavailable

11047

BRACKET,REFLECTOR,FR

11047-1085

Unavailable

11047A

BRACKET,REFLECTOR,RR,LH

11047-1086

Unavailable

11047B

BRACKET,REFLECTOR,RR,RH

11047-1087

Unavailable

14024

COVER,SIDE STAND SWITCH

14024-1532

$8.88

21007

ROTOR,LOCK,TANK CAP

21007-5027

$94.15

27004

SWITCH-ASSY

27004-5424

$321.83

27005

SWITCH-ASSY-IGNITION

27005-5089

Unavailable

27008

KEY-LOCK,BLANK

27008-1103

$18.83

27010

SWITCH,BRAKE LAMP

27010-1093

$27.22

27010A

SWITCH,SIDE STAND

27010-1226

$73.52

27016

LOCK-ASSY,SEAT

27016-5179

$43.07

28012

REFLECTOR-REFLEX

28012-1003

$20.69

28012A

REFLECTOR-REFLEX,RR

28012-1054

$20.82

28012B

REFLECTOR-REFLEX

28012-1077

$21.76

59071

JOINT

59071-1103

$6.90

59071A

JOINT

59071-1125

$8.88

92002

BOLT,TORX,6X16

92002-1333

$2.15

92015

NUT,FLANGED,5MM

92015-1259

$3.12

92015A

NUT,6MM

92015-1321

$11.86

92081

SPRING,BRAKE LAMP SWITCH

92081-1704

Unavailable

92150

BOLT,SOCKET,5X20

92150-1019

$3.61
