1993 Kawasaki Zephyr Air Filter Diagram

← All diagrams

Find the part on the Air Filter diagram for your 1993 Kawasaki Zephyr, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

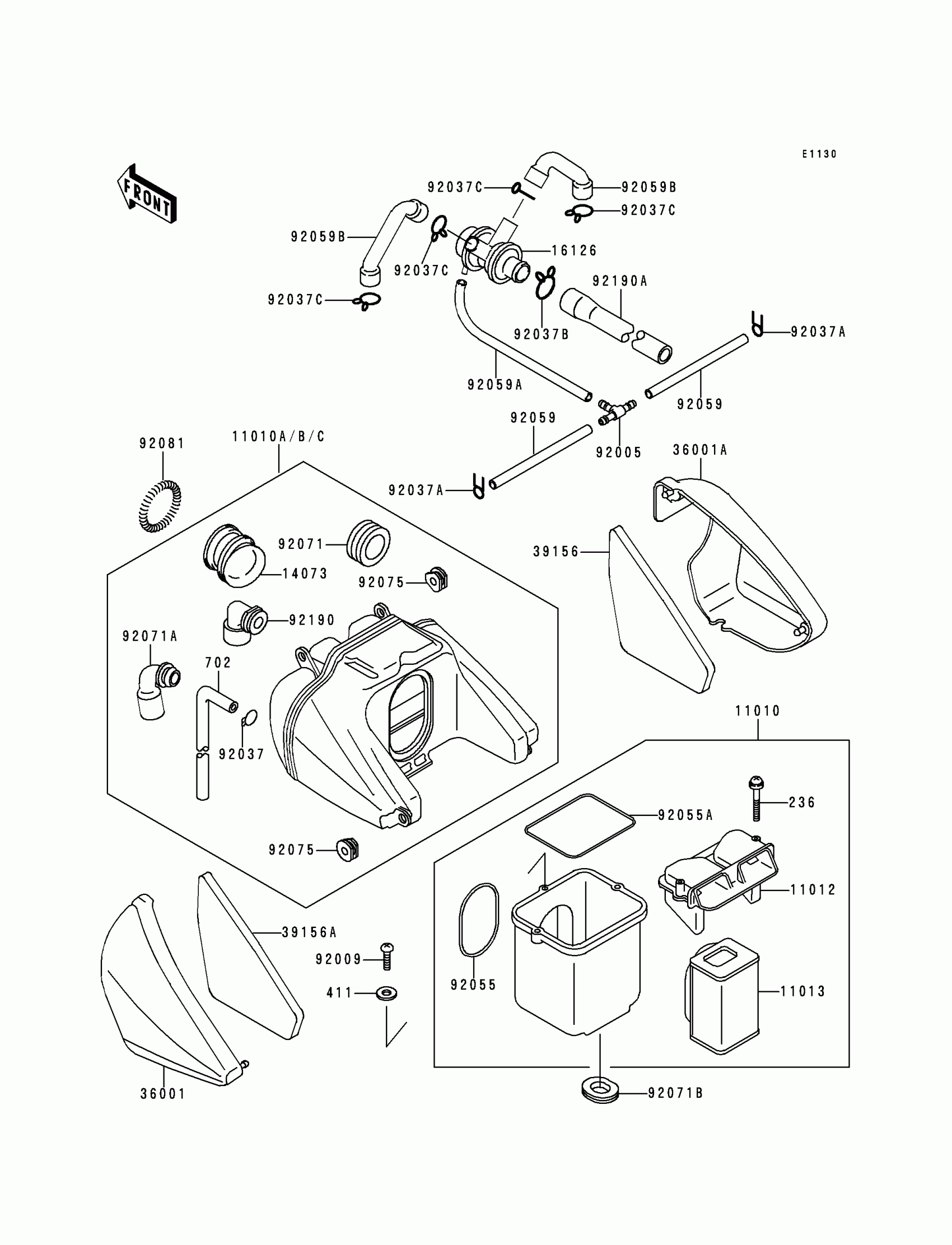

1993 Kawasaki Zephyr Air Filter Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11010

FILTER-ASSY-AIR

11010-1384

1
Out of stock

11010A

FILTER-ASSY-AIR

11010-1385

1
Out of stock

11012

CAP,AIR FILTER

11012-1709

1
Out of stock

11013

ELEMENT-AIR FILTER

11013-1157

1

$49.08

In stock

14073

DUCT,CARBURETOR

14073-1211

1

$33.53

In stock

36001

COVER-SIDE,AIR FILTER,LH,GRAY

36001-1420-FR

1
Out of stock

36001A

COVER-SIDE,AIR FILTER,RH,GRAY

36001-1421-FR

1
Out of stock

39156

PAD,RH

39156-1351

1
Out of stock

39156A

PAD,LH

39156-1352

1
Out of stock

92009

SCREW,TAPPING,5X20

92009-1399

1
Out of stock

92037

CLAMP,TUBE

92037-010

1

$3.12

In stock

92055

RING-O,91X6

92055-1137

1
Out of stock

92055A

1

$9.27

In stock

92071B

GROMMET,AIR FILTER

92071-1123

1

$5.95

In stock

92075

DAMPER

92075-1470

1

$7.31

In stock

236

SCREW-PAN-WSP-CROS

236B0540

1
Out of stock

411

WASHER-PLAIN,5MM,BLACK

411F0500

1
Out of stock

702

TUBE-RUBBER,5X350

702A05350

1

$29.70

In stock

92081

1

$10.26

In stock

92190

TUBE,BREATHER

92190-1041

1
Out of stock
