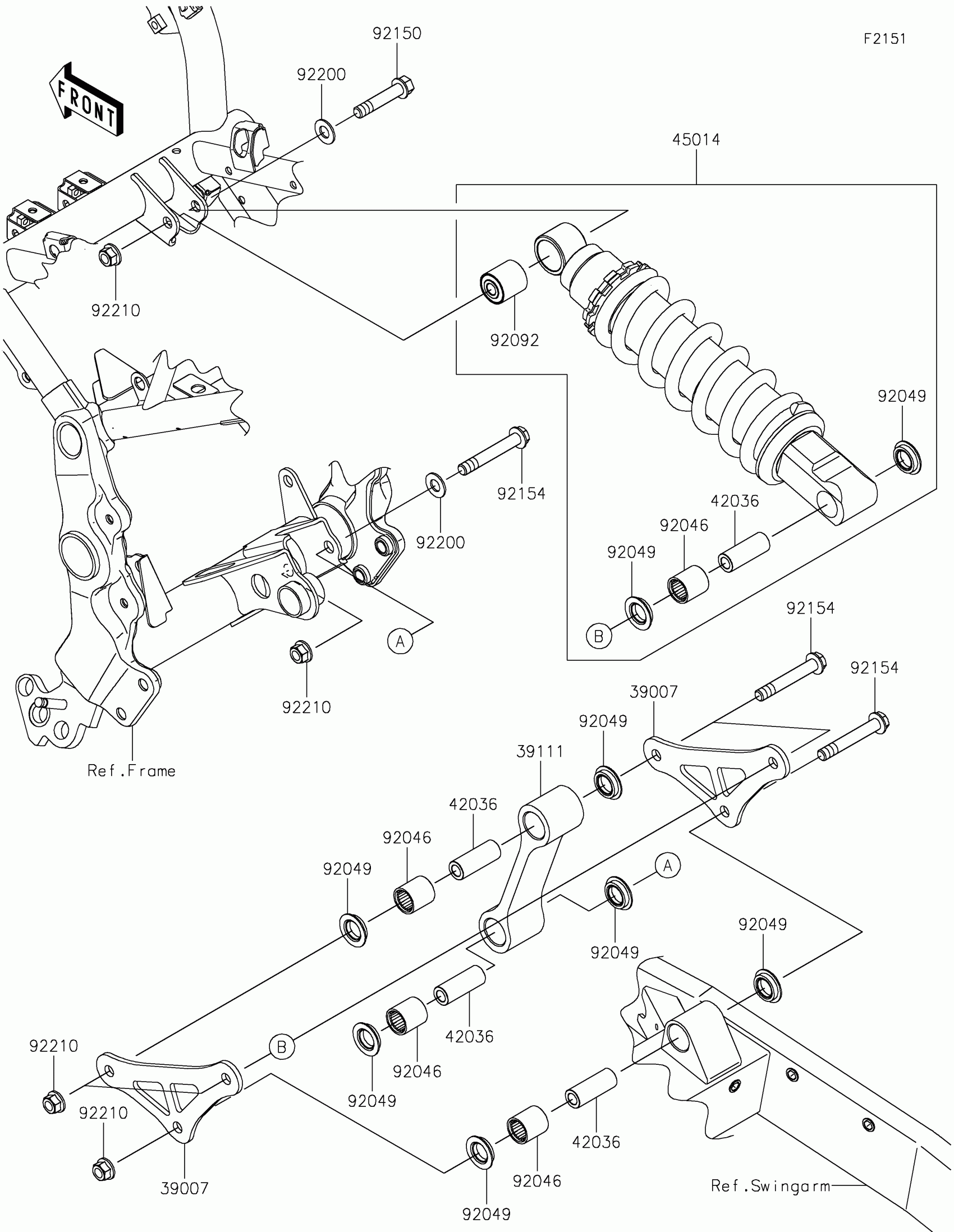

2018 Kawasaki Z900RS Suspension/shock Absorber Diagram

← All diagrams

Find the part on the Suspension/shock Absorber diagram for your 2018 Kawasaki Z900RS, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

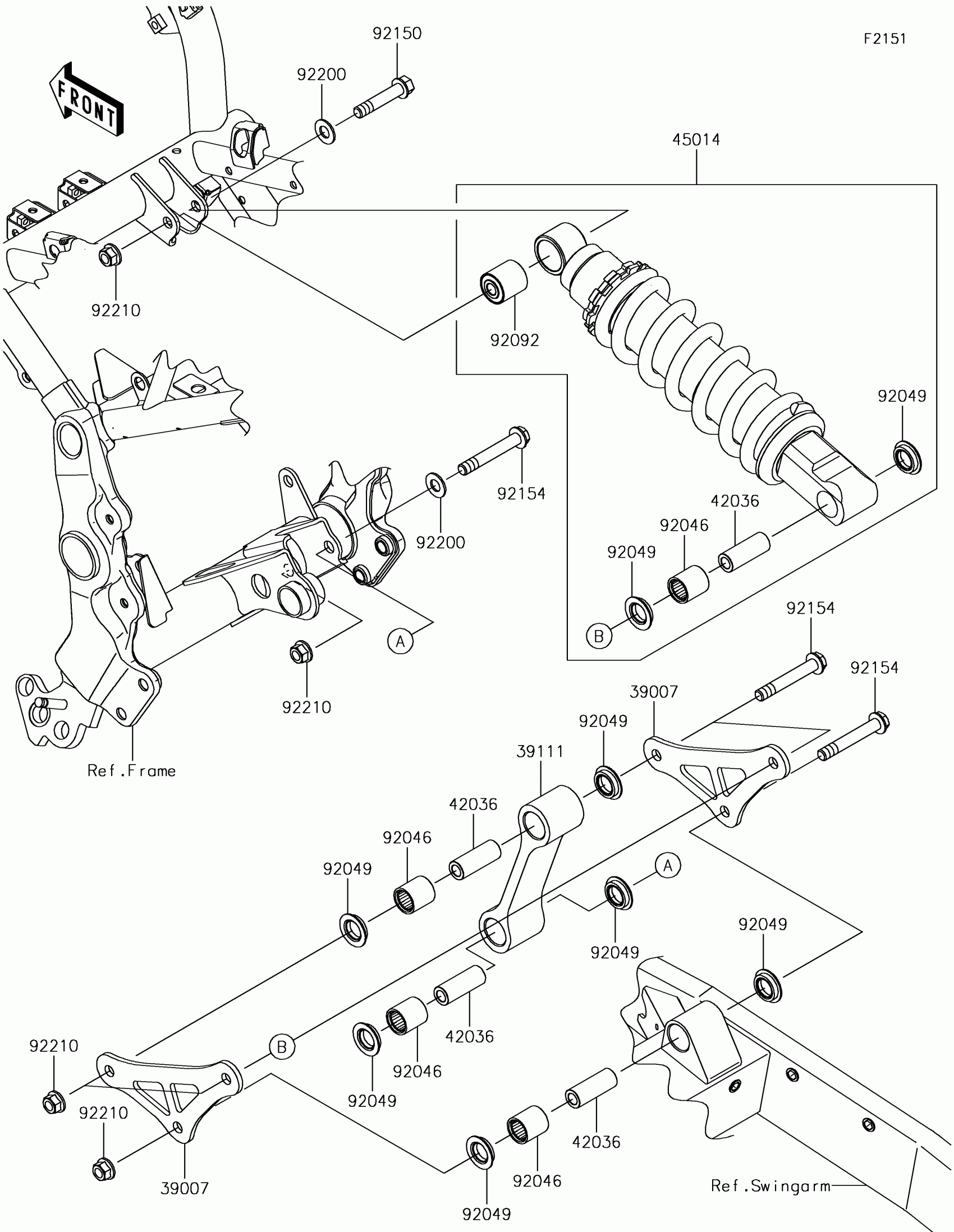

2018 Kawasaki Z900RS Suspension/shock Absorber Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

39007

ARM-SUSP

39007-0410

1
Out of stock

39111

ROD-TIE

39111-0311

1

$86.68

In stock

42036

SLEEVE,10.1X17X44.5

42036-1342

1
Out of stock

45014

SHOCKABSORBER,BLACK

45014-0599-10

1
Out of stock

92046

BEARING-NEEDLE,SFYZM172425

92046-1273

1
Out of stock

92049

SEAL-OIL,MHA17245.7F

92049-1223

1
Out of stock

92092

BUSHING-RUBBER

92092-1058

1
Out of stock

92150

BOLT,FLANGED,10X50

92150-1125

1
Out of stock

92154

BOLT,FLANGED,10X66

92154-2839

1
Out of stock

92200

WASHER,11X22X1.6

92200-1926

1
Out of stock

92210

NUT,LOCK,FLANGED,10MM

92210-1139

1
Out of stock
