2025 Kawasaki Z900RS Se Swingarm Diagram

← All diagrams

Find the part on the Swingarm diagram for your 2025 Kawasaki Z900RS Se, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

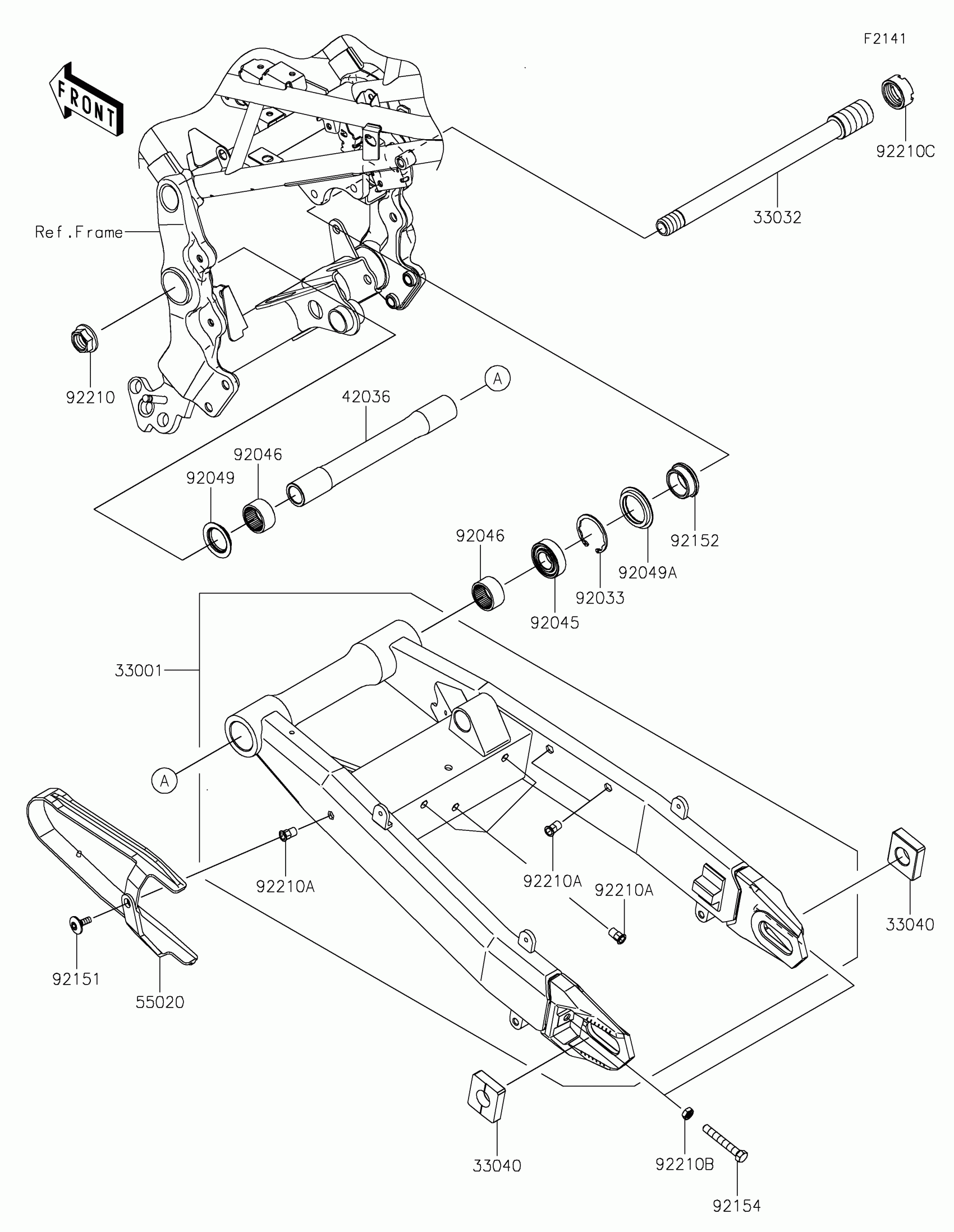

2025 Kawasaki Z900RS Se Swingarm Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

33001

ARM-COMP-SWING,BLACK

33001-0699-10

1
Out of stock

33032

1

$139.31

In stock

33040

ADJUSTER-CHAIN

33040-1109

1

$18.36

In stock

42036

SLEEVE,20.1X28X236.5

42036-0815

1
Out of stock

55020

GUARD,CHAIN

55020-2184

1
Out of stock

92033

RING-SNAP,42MM

92033-1041

1

$4.88

In stock

92045

1

$11.39

In stock

92046

1

$19.97

In stock

92049

SEAL-OIL,28X34X5.7

92049-1181

1
Out of stock

92049A

SEAL-OIL,MHA 35 42 5.7F

92049-1380

1
Out of stock

92151

BOLT,SOCKET,6X18

92151-1149

1

$6.11

In stock

92152

COLLAR,28X35X15

92152-2781

1

$37.49

In stock

92154

BOLT-SMALL,8X55

92154-1962

1

$4.51

In stock

92210

NUT,FLANGED,20MM

92210-0320

1
Out of stock

92210A

NUT,POP,6MM,L=16.5

92210-0324

1
Out of stock

92210B

NUT-HEX-SMALL,8MM

92210-1459

1
Out of stock

92210C

NUT,28MM

92210-1575

1
Out of stock
