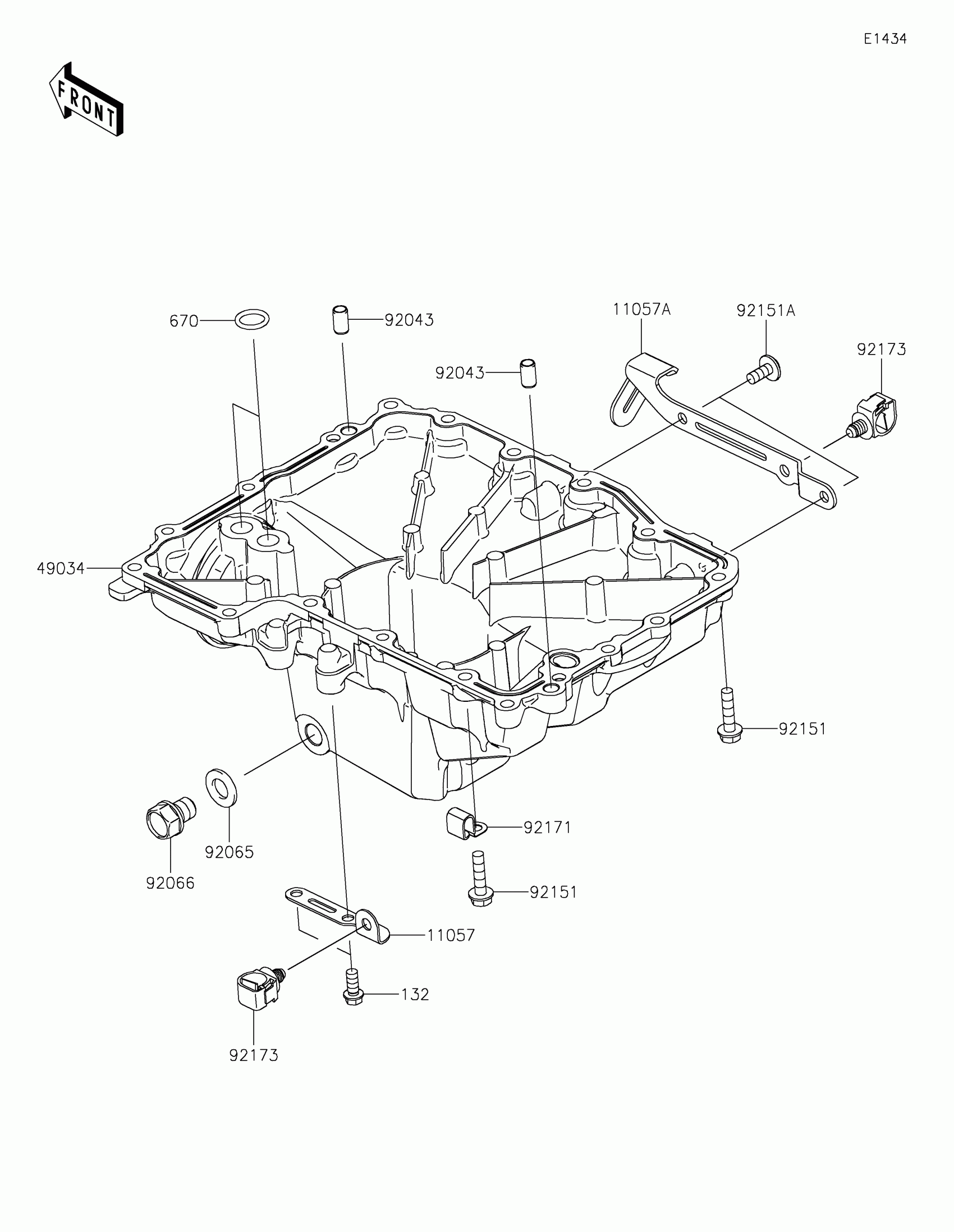

Kawasaki Z900RS Oil Pan Diagram

Description

Price

11057

BRACKET

11057-1316

$3.29

11057A

BRACKET,OXYGEN SENSOR

11057-1595

$11.07

49034

PAN-OIL

49034-0049

$215.32

92043

PIN,6.2X8X14

92043-1263

$0.46

92065

GASKET,12X22X2

92065-097

$0.66

92066

PLUG,12X15

92066-0079

$4.55

92151

BOLT,FLANGED,6X25

92151-1225

$1.76

92151A

BOLT,SOCKET,6X14

92151-1654

$1.24

92171

CLAMP

92171-0534

$5.56

92173

CLAMP,12MM DIA.

92173-0736

$3.85

132

BOLT-FLANGED-SMALL,6X14

132BC0614

$0.76

670

O RING,14MM

670D2014

$4.18
